Page 30
Installation

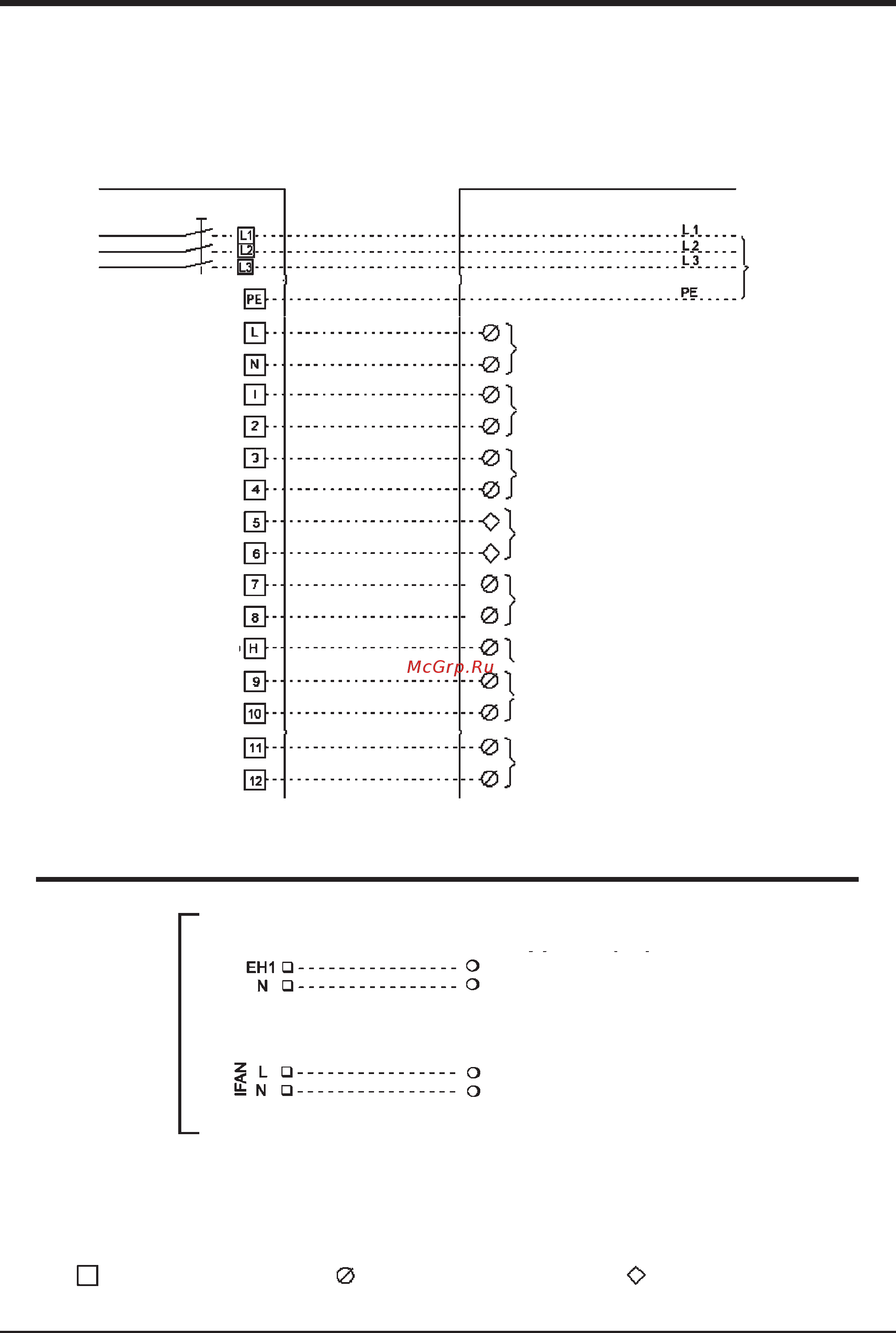

Electrical Connections of the AQL/AQH 40 - 80 units without Neutral
230Vac – AVAILABLE FOR ACCESSORIES
NOT PROTECTED
EXTERNAL FLOW SWITCH
EXTERNAL INTERLOCK
EXTERNAL PUMP APPROVAL
ALARMED UNIT + NO. SPTS
MAX 2,5 A @ 250 Vac
START/STOP REMOTE SWITCH
HEATING / COOLING SELECTION
NIGHT MODE OR DOUBLE SET POINT
SELECTION
FORCED LOAD SHEDDING
DISCONNECTOR
COMMON
HOT / COLD
TERMINAL BOARD ON THE MACHINE
USER CONNECTIONS
POWER LINE
400/ 3/50 – PE
SECTION
TERMINALS ON THE MACHINE
TERMINALS FOR EXTERNAL
CONNECTIONS
NOTE: Always refer to the machine wiring diagram.
VOLTAGE FREE CONTACTS
ELECTRONIC BOARD
PUMP CONTROL RELAY
TERMINAL 108 HYDRO KIT
TERMINAL 8 HYDRO KIT
TERMINAL 14 HYDRO KIT
TERMINAL 8 HYDRO KIT
ANTIFREEZE RESISTANCE CONTROL RELAY
