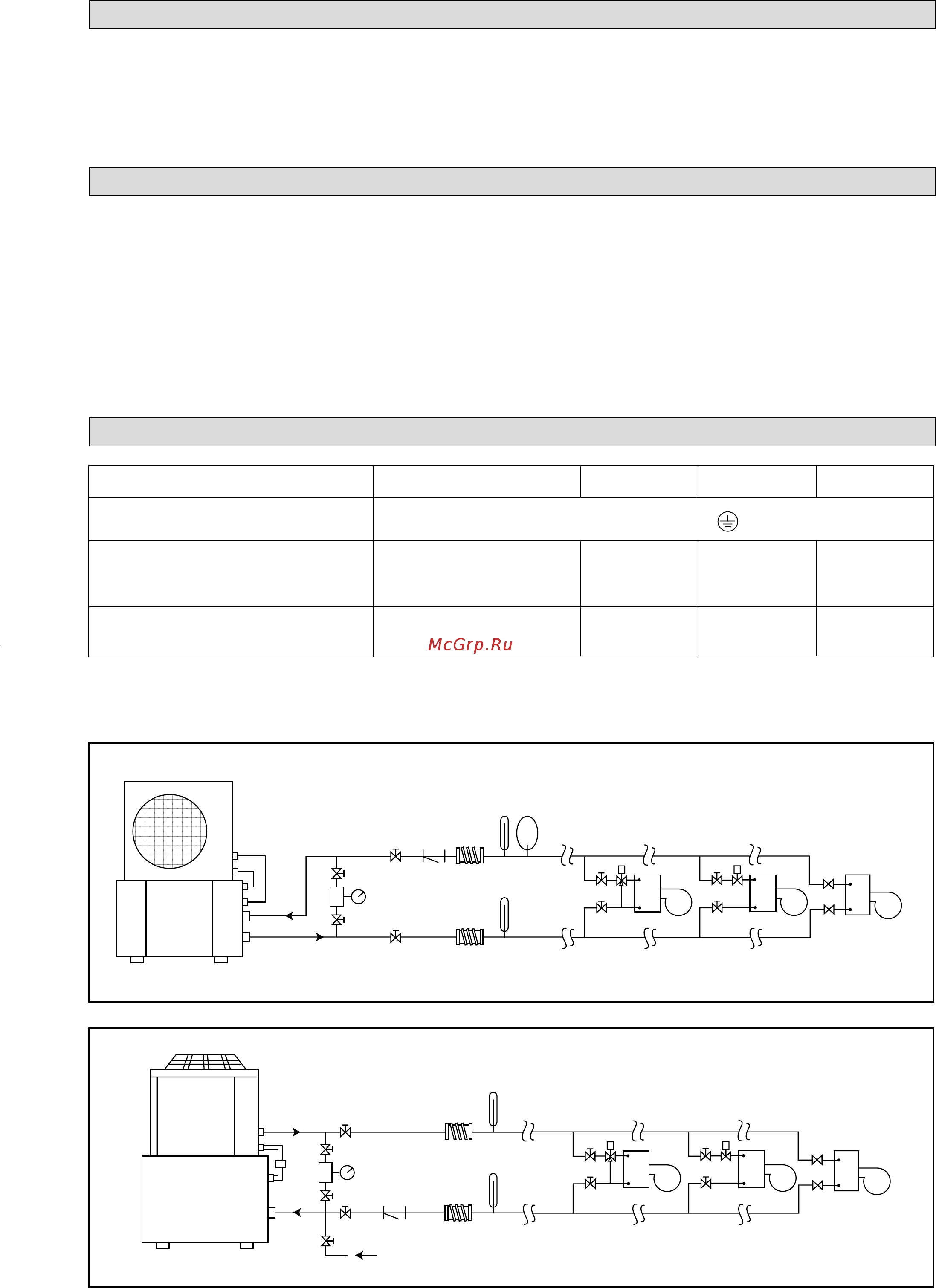

![Acson AC040A [7/11] Refrigerant circuit](/views2/1409744/page7/bg7.png)
1-6
REFRIGERANT CIRCUIT
All mini chiller series is precharged with refrigerant R22, the only pipe work that needs to be done is to connect the water
piping between the mini chiller (outdoor unit) and the fan coil (indoor unit).
Purging of the refrigerant R22 in AC040A/AR ~ 058A/AR series is only required if the unit is installed separately with
hydraulic kit.
WATER FILLING
In this close water system, the pump can cater for longer piping compared to normal direct expansion units.
After connecting all the pipes and equipments, filling water in the circuit, perform leak check for all the connections and
joints. Do not start the unit when the system is leaking.
To optimize the capacity of the system, ensure that the system is free of air bubbles or air-traps. Air traps in the system
seriously unbalance the whole system. It is very important to check the whole water system especially ensuring that the water
tank is not full of water. This protection step is not only to prevent tank & piping corrosion but also to ensure optimum
performance of the unit. This can be done by releasing the air trap from the auto-air-vent (water tank) and manual air vent
(installed in the highest place of the water system).
ELECTRICAL WIRING CONNECTION
MODEL AC040A/AR ~ AC058A/AR AC075B/BR AC100B/BR AC125BR
Voltage Range 380 – 420V/3ph / 50Hz +
Power Supply Cable Size 4 6 10 16
Number of conductor
Interconnection Cable Size (mm
2
) 2.5 2.5 2.5 2.5
IMPORTANT : These values are for information only. They should be checked and selected to comply with local and/or
national codes of regulations. Which is also subject to the type of installation and size of conductors used.
FCU
FCUFCU
Gate Valve
Gate Valve
Expansion
Tank
Thermometer
Flexible
Thermometer
Flexible
Strainer
Gate Valve
Gate Valve
Gate Valve
Gate Valve
Presure
Differential Valve
Three Way Valve
Good Controlling
Bad Controlling
Worst Controlling
Gate Valve
Gate Valve
Two Way Valve
Gate Valve
Gate Valve
FCU
FCUFCU
Gate Valve
Gate Valve
Thermometer
Flexible
Thermometer
Flexible
Strainer
Gate Valve
Gate Valve
Gate Valve
Gate Valve
Presure
Differential Valve
Three Way Valve
Good Controlling
Bad Controlling
Worst Controlling
Gate Valve
Gate Valve
Two Way Valve
Gate Valve
Gate Valve
Gate Valve
Water Feeding / Drainage
CK20AN-ENG 20/07/2000, 14:526
