5
RQT6573
Getting started
Connection

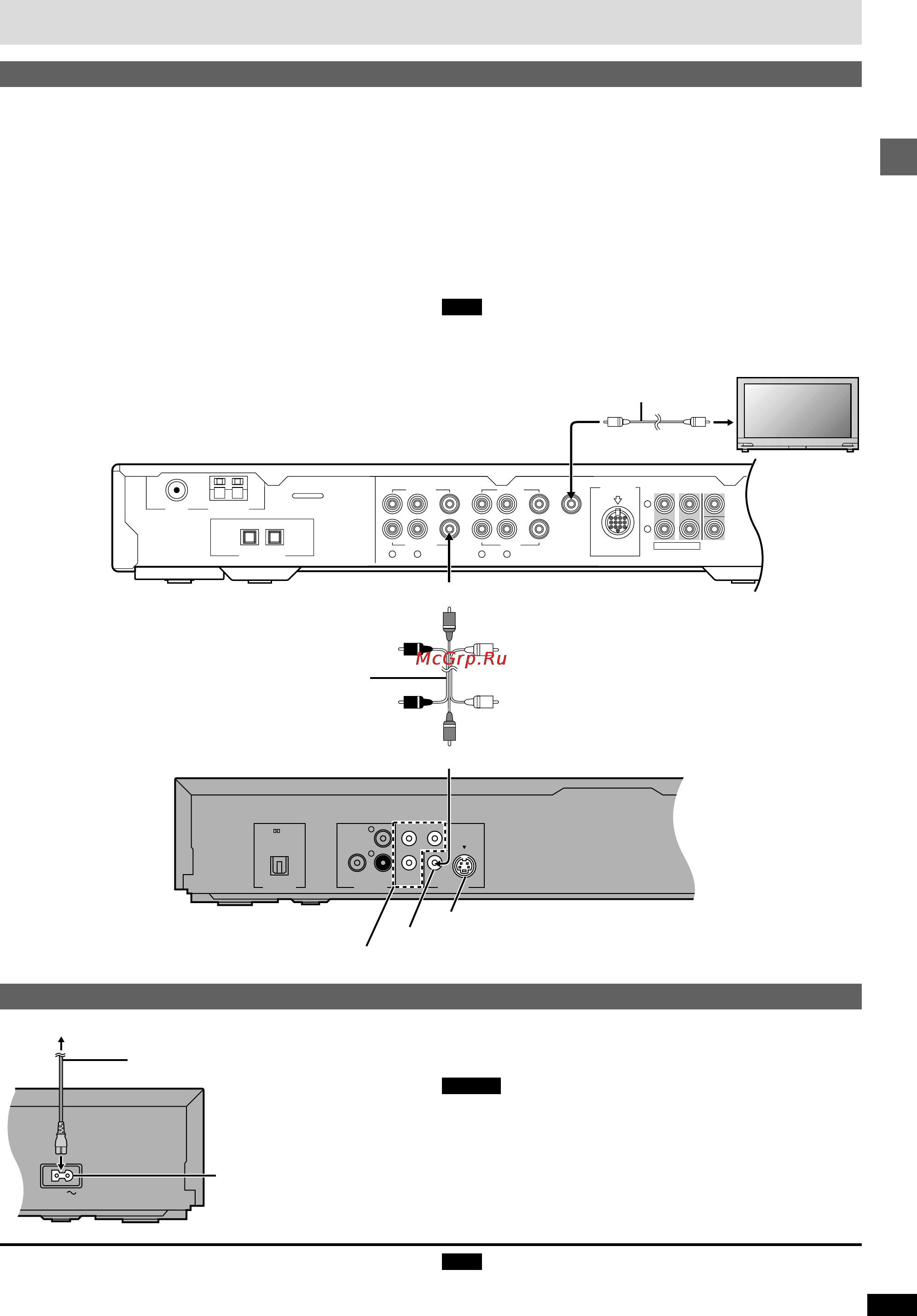

Video connection
Connecting the power cable
Plug the power cable into the AC IN when all connections are complete,
and then plug this unit to the household AC outlet.
Caution
Do not use other AC power cables than the one provided. Otherwise it may
result in causing fire or an electrical shock.
AC IN
To the household AC outlet
Power cable (included)
To enjoy 5.1-ch surround sound
≥Change the settings in “Digital output” to suit the equipment you connect
(➡ page 17).
Note
You cannot use DTS Digital Surround decoders not suited to DVD.
This unit equips three types of video jacks as follows:
1. VIDEO jack
This jack transmits conventional composite video signal. Connect this jack
to your AV amplifier so that you can switch the both audio and video inputs
at once.
2. S VIDEO jack
This jack transmits color and luminance separately and achieves high
quality color reproduction. Connect this jack to your television using a
commercially available S-Video cable. If your AV amplifier equipped with S
VIDEO input and output jacks, connect to the AV amplifier so that you can
switch the both audio and video inputs at once.
3. COMPONENT VIDEO OUT jacks
These jacks transmit color difference and luminance separately and
provide the best quality picture. Connect these jacks to the corresponding
jacks of your television. If your AV amplifier equipped with COMPONENT
VIDEO input and output jacks, connect to the AV amplifier so that you can
switch the both audio and video inputs at once.
≥After making this connection, change the black level for a better picture
(➡ page 16, Video—Black Level Control).
Note
Do not connect this unit to a television through a video cassette recorder. If
you do so, the picture may not be played back properly due to the copyright
protection technology incorporated in this unit.
The lead is polarized.
Match the power cable’s
connector to the unit’s inlet.
3
PCM/
DTS
DIGITAL
OPTICAL
DIGITAL
AUDIO OUT
AUDIO OUT VIDEO OUT
MIXED 2CH
S VIDEO
P
B
Y
P
R
SUBWOOFER
COMPONENT
VIDEO OUT
L
R
VIDEO
FRONT REAR CENTER
DIGITAL AUDIO IN
DVD/CD
OPTICAL OPTICAL
VIDEO 1
AM ANTFM ANT GND
SYSTEM
CONNECTOR
6CH PREOUT
VCR OUT
MONITOR
OUT
VIDEO 1 IN
VIDEO VIDEO
VCR IN
DVD/CD IN
TO SW–S80
R L
R
L
R L
MARK
75Ω UNBAL.
SUBWOOFER
1
2
Television
Video pin cable
yellow
yellow
Audio/Video cable (included)
Amplifier: e.g. AVR-S80
