Installation/Connection

General notes

• Choose the mounting location where the unit will not interfere with the normal driving function of the

driver.

• Before finally installing the unit, connect the wiring and make sure that the unit works properly.

• Consult with your nearest dealer if installation requires the drilling of holes or other modifications of the

vehicle.

• Install the unit where it does not get in the driver's way and cannot injure the passenger if there is a

sudden stop, like an emergency stop.

• Avoid installing the unit where it would be subject to high temperature, such as from direct sunlight, or

from hot air, from the heater, or where it would be subject to dust, dirt or excessive vibration.

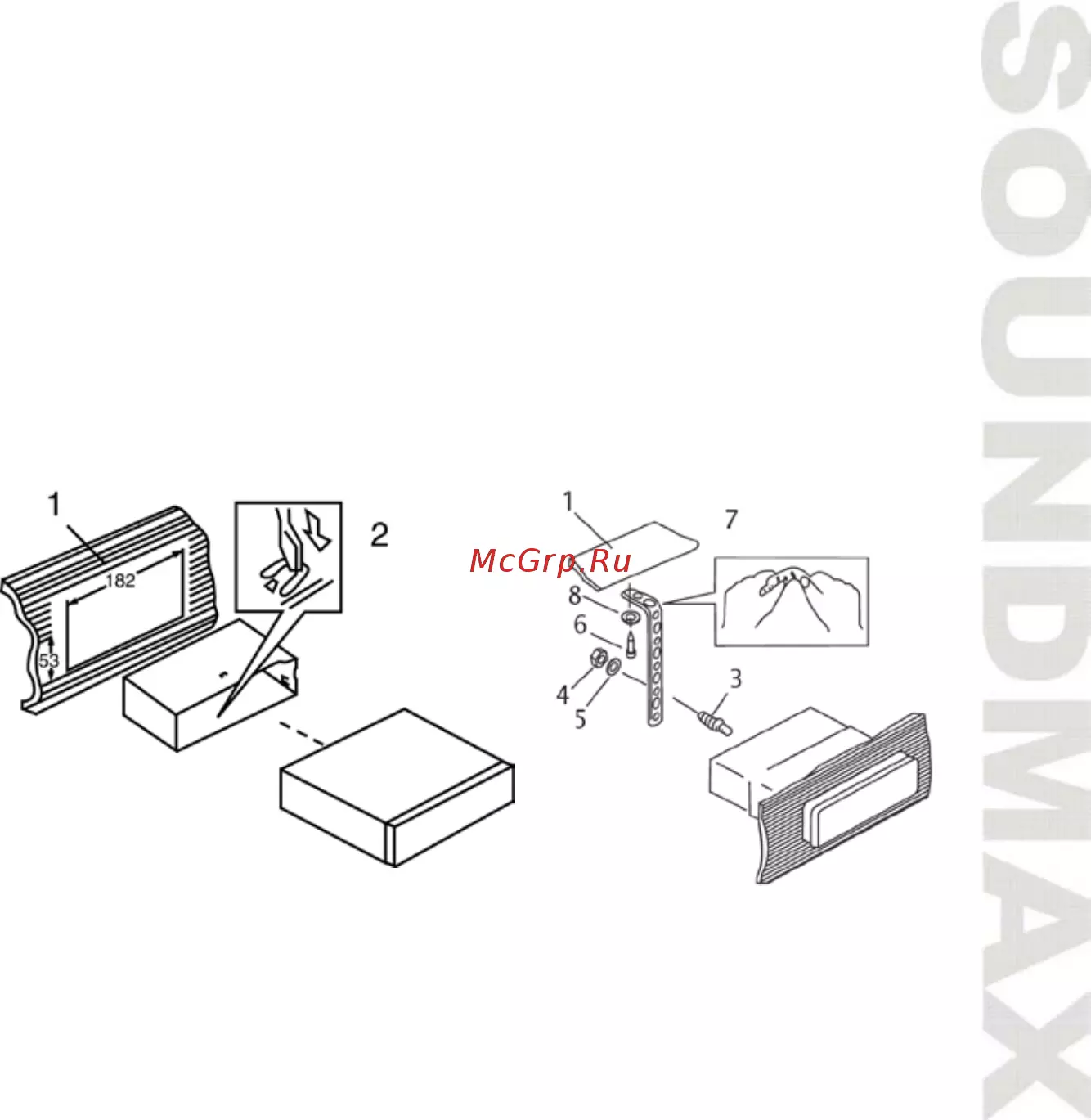

DIN FRONT-MOUNT

1. Car dashboard

2. Sleeve

3. Bolt

4. Nut

5. Spring washer

6. Screw

7. Metal strap

8. Flat washer

1. Install the sleeve into the dashboard; ensure it is installed with the correct side and there are no

obstacles (wires, dashboard elements, etc) for the unit installation.

2. After installing the sleeve into the dashboard, bend tabs fitting to the size of the dashboard to fix the

sleeve in place.

3. Use the metal strap to fix the rear side of the unit. Determine a place for fixing and install the strap as

shown in the picture. You can bend the strap to the needed angle with your hands.
