5
English
Functional Overview
Caution: Do not touch the inner pins of the jacks on the rear panel.
Electrostatic discharge may cause permanent damage to the unit.

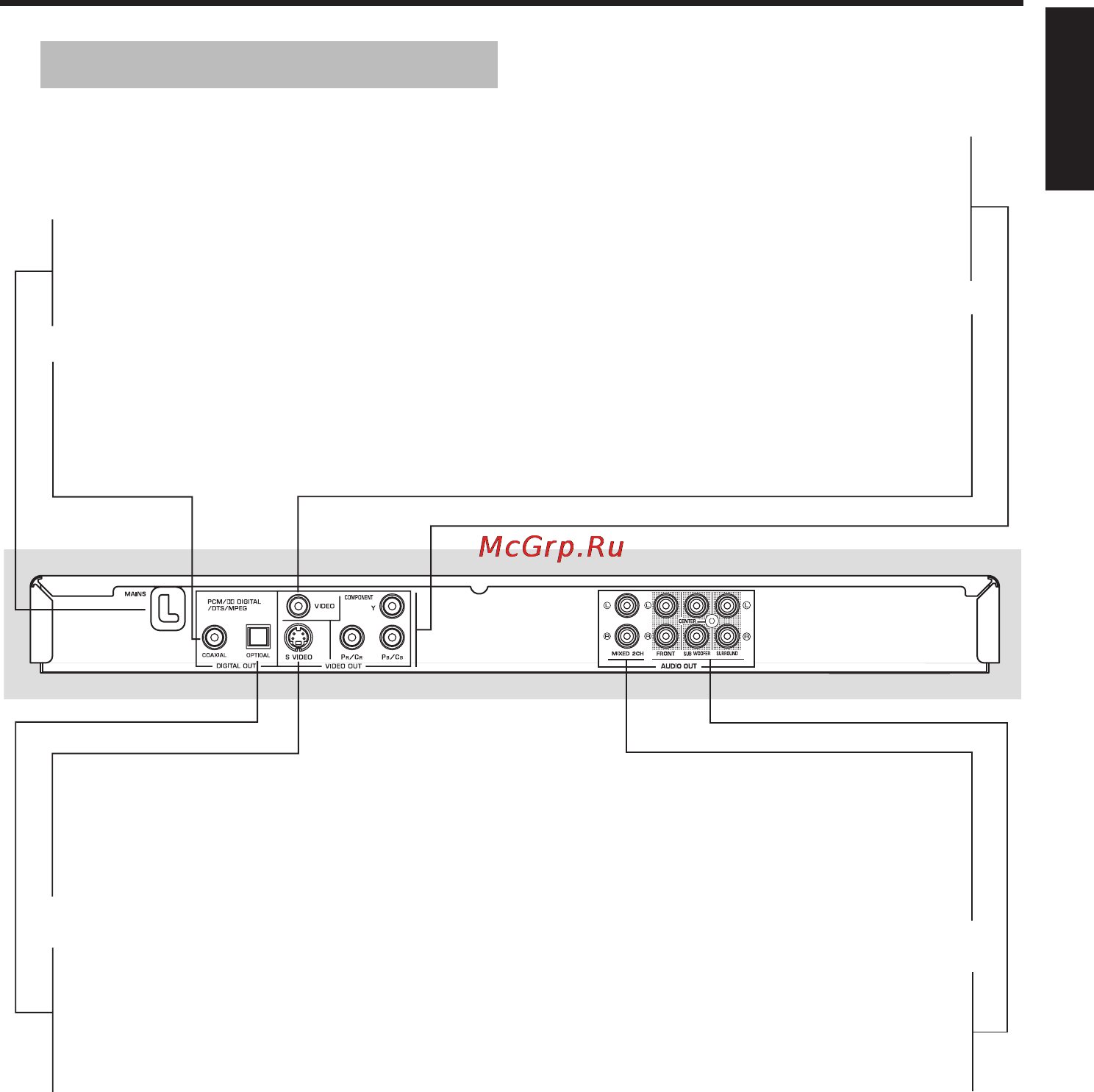

Rear Panel
S VIDEO output
– connects to an S-Video input on your
AV receiver
AC Power Cord
– connects to a standard AC outlet
COAXIAL digital audio output
– connects to a digital (coaxial) input of
your AV receiver or stereo system
VIDEO output
(composite video out)
– connects to a video input on your
AV receiver
COMPONENT video outputs
– connect to an AV receiver with Y
P
B/CB PR/CR inputs
OPTICAL digital audio output
– connects to a digital (optical) input on
your AV receiver or stereo system
6ch discrete output
– connect to the 6ch input jacks
on your AV receiver
MIXED 2CH output
– connect to the audio jacks on
your AV receiver or stereo
system
