Functional Overview
COAXIAL
PCM
DTS MPEG
DIGITAL
OPTICAL
1
2
VIDEO
SUBWOOFER
AUDIO OUT
VIDEO OUT COMPONENT VIDEO OUT
S VIDEO
P
R
P
B
R
L
Y

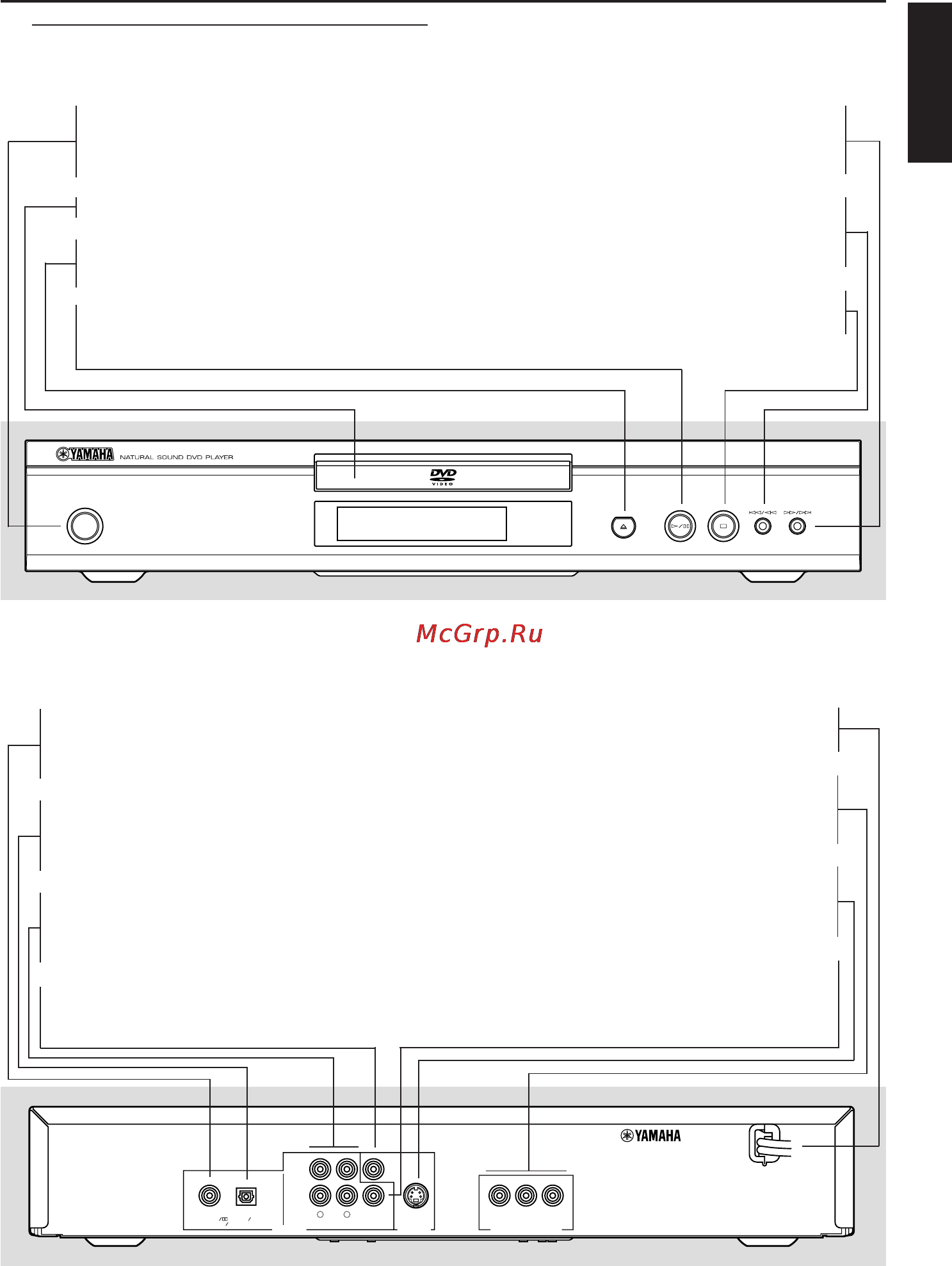

Front and Rear Panels
STANDBY
/ON
COAXIAL
– connect to DIGITAL INPUT of your AV
receiver
OPTICAL
– connect to DIGITAL INPUT of your AV
receiver
AUDIO OUT (Left/Right)
– connect to AUDIO inputs of your AV
receiver or stereo system
VIDEO (VIDEO OUT)
– connect to Video inputs of your AV receiver
AC Power Cord
– connect to a standard AC outlet
COMPONENT VIDEO OUT
– connect to component video inputs of
your AV receiver
S-VIDEO
– connect to S-Video input of your AV
receiver
SUBWOOFER
– connect to an active subwoofer
Caution: Do not touch the inner pins of the jacks on the rear panel. Electrostatic
discharge may cause permanent damage to the unit.
* Press button for about 2 seconds
STANDBY/ON
– to turn this unit to standby mode or
ON
Disc Tray
/ OPEN/CLOSE
– to open/close the disc tray
B/ ; PLAY/PAUSE
– to start/interrupt playback
R/T
– search forward* / go to the next
chapter or track
S/Q
– search backward* / go to a previous
chapter or track
9 STOP
– to stop playback
