20
Sound
- Digital output
Factory setting: ALL. This means that both coaxial and optical outputs are
switched on. If you are not connecting equipment with a digital input, change
the setting to OFF.
If your equipment doesn't include a digital multi-channel decoder, set the
digital output to PCM only. Both coaxial and optical outputs are switched on.
Note:
• When the setting is ALL, make sure that the selected audio format of the disc you
play matches the connected equipment’s capability. If a digital signal which the
equipment cannot handle is output, there may be a noise and that could damage
your ears and your speakers.
• When CDs were put on the market in the early stage, high tones from some of
them would be heard as punch lacked.
- Analog output
Select Stereo, Dolby Surround or 3D sound.
- Night Mode
Optimizes the dynamics of the sound with low volume playback.
- Karaoke vocal
Put this setting to ON only when a multi-channel karaoke DVD is being
played. The karaoke channels on the disc will then be mixed to a normal
stereo sound.
Language
Select the required Menu, Audio and Subtitle language. See ‘Initial Setup’.
Audio language and Subtitle language can also be adapted via the Menu bar
on the screen.
Features
- Access Control
Access Control contains the following features:
Child Lock - When Child Lock is set to ON, a 4-digit code needs to be
entered in order to play discs.
Parental control - Allows the conditional presentation of DVDs containing
Parental Control information (see ‘Access Control’).

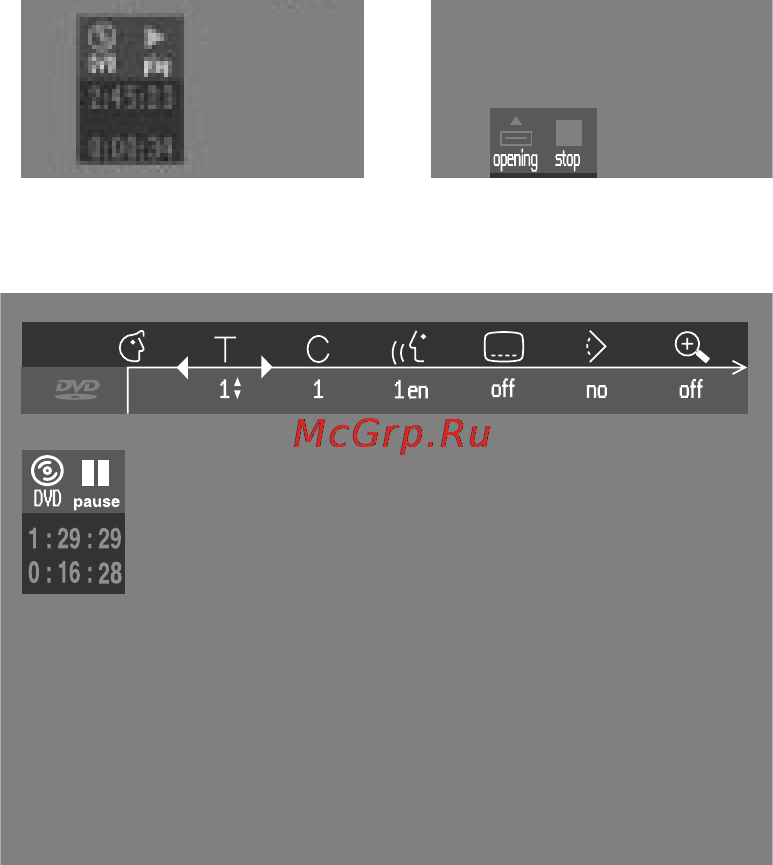

- Status Window
Displays the current status of the player and is displayed with the menu bar.
When disc playback is stopped, it is displayed with the ‘Temporary Feedback
Field’ in the default screen. See ‘On-Screen Display information;
Factory setting is ON. Select OFF to suppress display of the Status Window.
- Low Power Standby
This setting is effective for Europe and U.K. models, when the DVD player is
connected between your TV and VCR with SCART cables. If you use TV and
VCR while the DVD player is turned off, set Low Power Standby to OFF.
Otherwise VCR does not function.
- PBC
Some Video CDs have PBC(Playback control). When activated, a menu screen
included on the disc appears soon after playback starts.
PREPARATION
