6

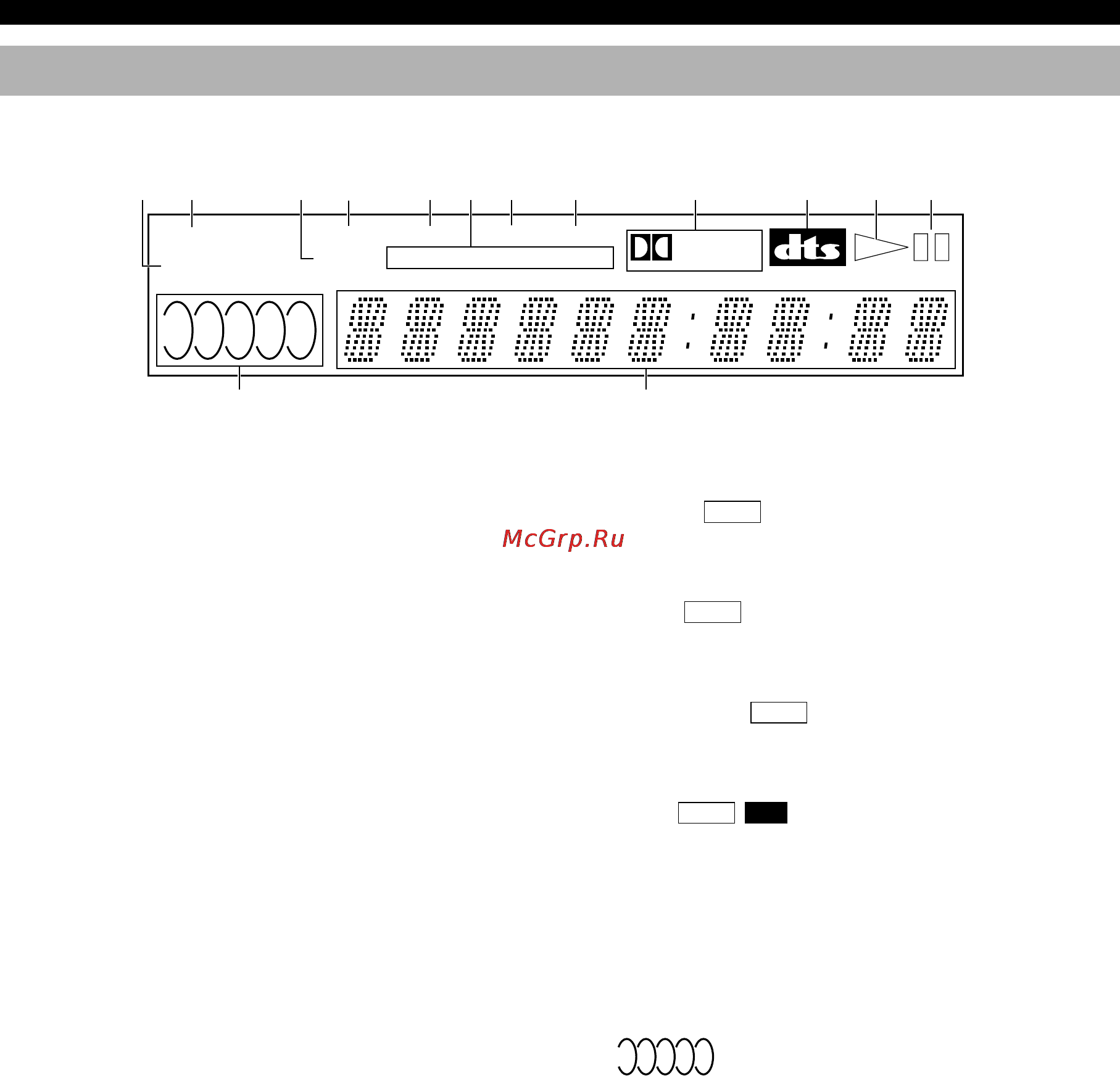

Display
CONTROLS AND FUNCTIONS
1 VCD
VCD lights up when a Video CD is selected and CD lights
up when a CD is selected.
2 DVD
Lights up when a DVD is selected.
3 RNDM
Lights up during random-sequence play.
4 PROG
Lights up during program play.
5 ANGLE
Lights up when the scene currently played contains different
angle(s).
6 Repeat mode indicator
• T and REP light up when repeating a title or a track.
• C and REP light up when repeating a chapter.
• REP and A-B light up when repeating between the two
points you have specified.
• REP and DISC 1 light up when repeating the currently
selected disc.
• REP and DISC 5 light up when repeating all the discs
loaded on the disc tray.
7 MPEG
DVD
Lights up when an audio track encoded with MPEG format
is selected.
8 PCM
DVD
Lights up when an audio track encoded with Linear PCM
format is selected.
9 q Digital
DVD
Lights up when an audio track encoded with Dolby digital
format is selected.
0 t
DVD
CD
Lights up when an audio track encoded with DTS format is
selected.
q w
Lights up during playback.
w d
Lights up while playback is paused.
e
1 2 3 4 5
One of these numbers lights up to show the currently
selected disc, which is loaded on the guide of the corre-
sponding number.
r Multi-information display
Shows various information such as title, chapter or track
number, elapsed playing time etc.
DVD
VCD
PROG
RNDM
TC REP A
–
B DISC 15
ANGLE MPEG PCM
Digital
1 2 3 4 5
12 34 567 8 9 0 q w
re
102-C996(E)02-06 7/31/0, 4:15 PM6
