TL-WDN3800

N600 Wireless Dual Band PCI Express Adapter User Guide

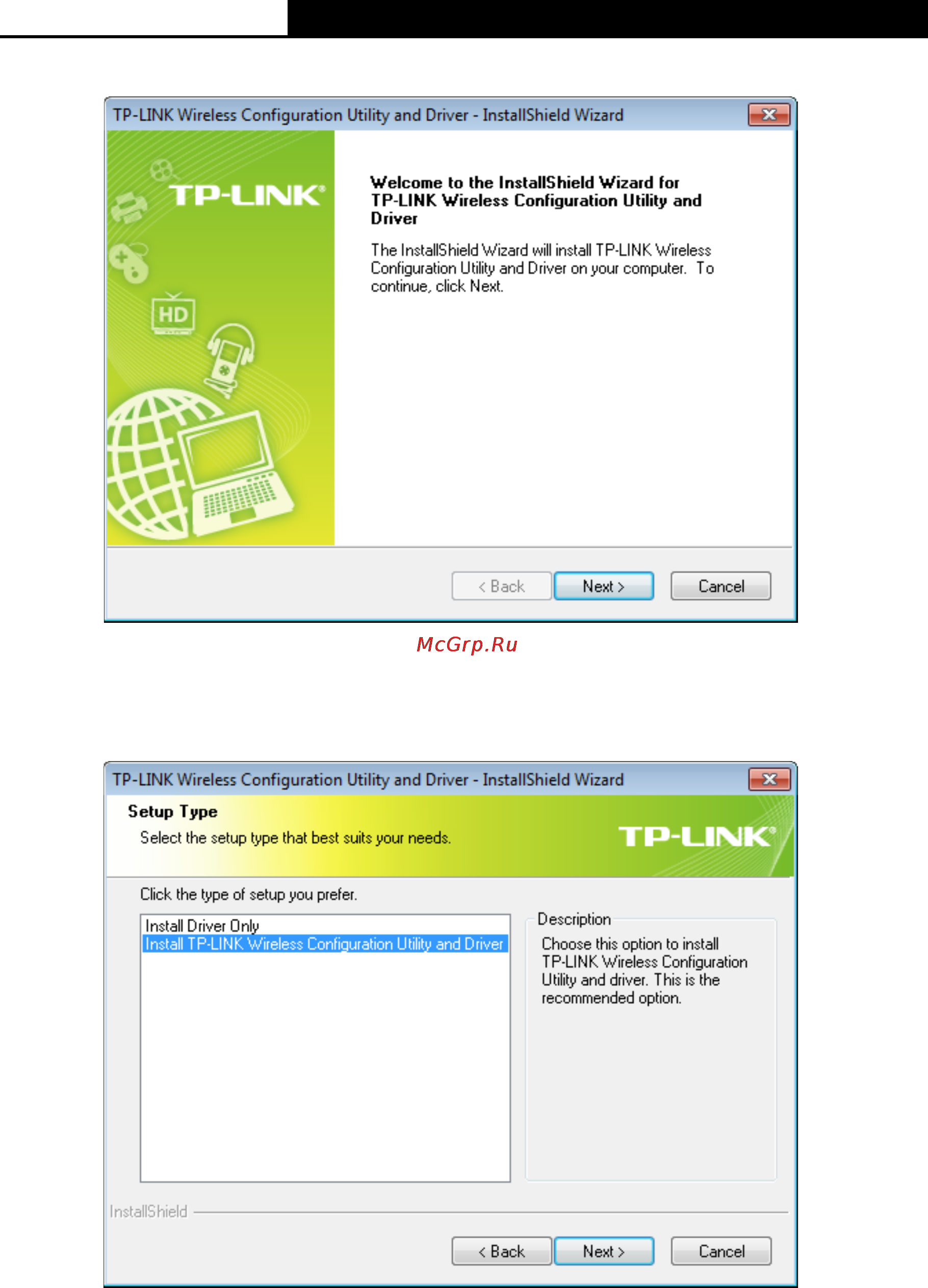

2. The InstallShield Wizard window will appear. Click Next to continue.

Figure 2-4

3. Choose a setup type. It is recommended to select Install TP-LINK Wireless

Configuration Utility and Driver. Selecting Install Driver Only can only install driver.

Click Next to continue.

Figure 2-5
