TL-WDN3800

N600 Wireless Dual Band PCI Express Adapter User Guide

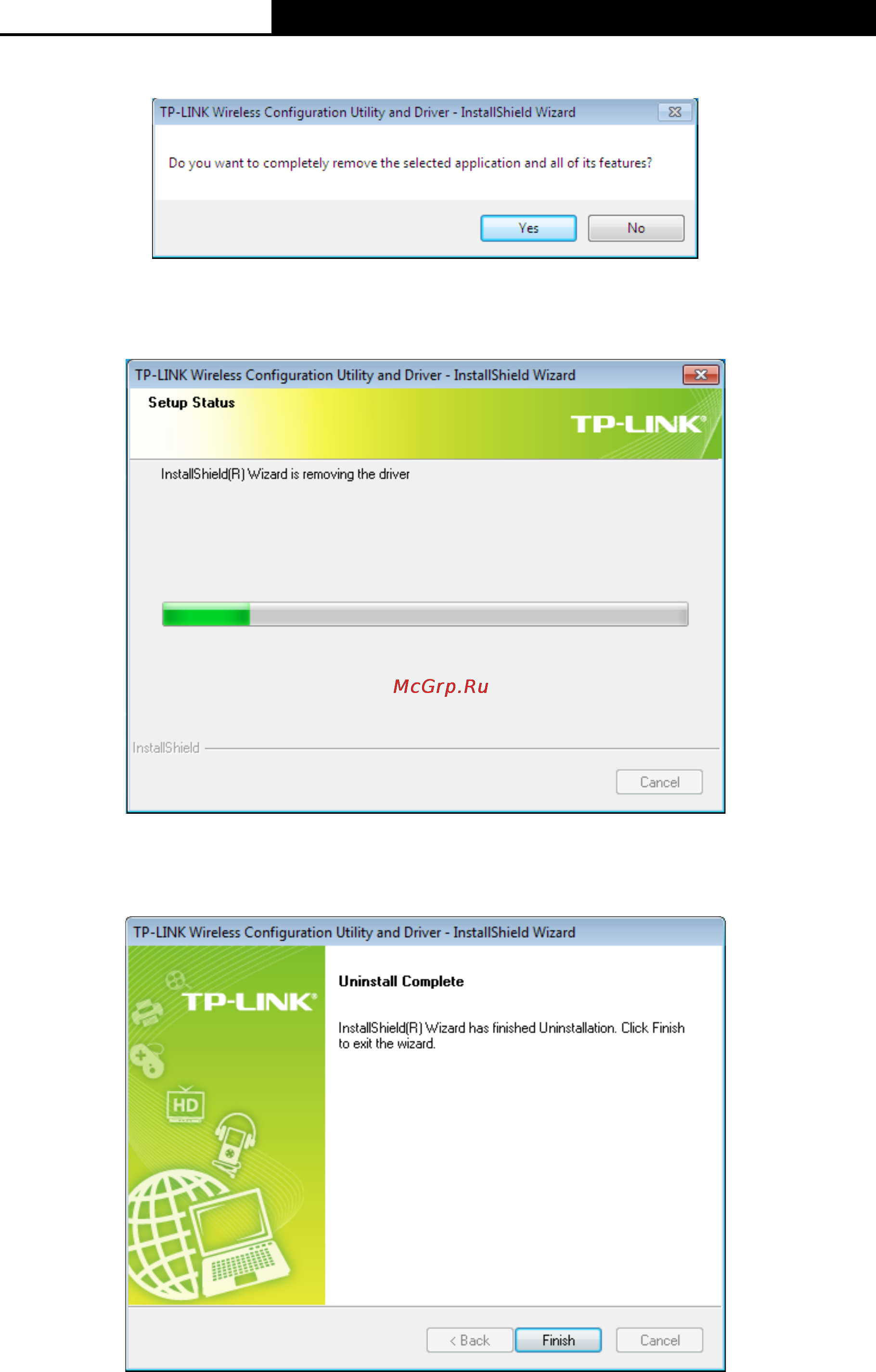

3. Click Yes to continue.

Figure 6-8

4. It may take a few minutes to undergo the whole un-installation process.

Figure 6-9

5. Click Finish to complete the un-installation.

Figure 6-10
