TL-WR720N 150Mbps Wireless N Router

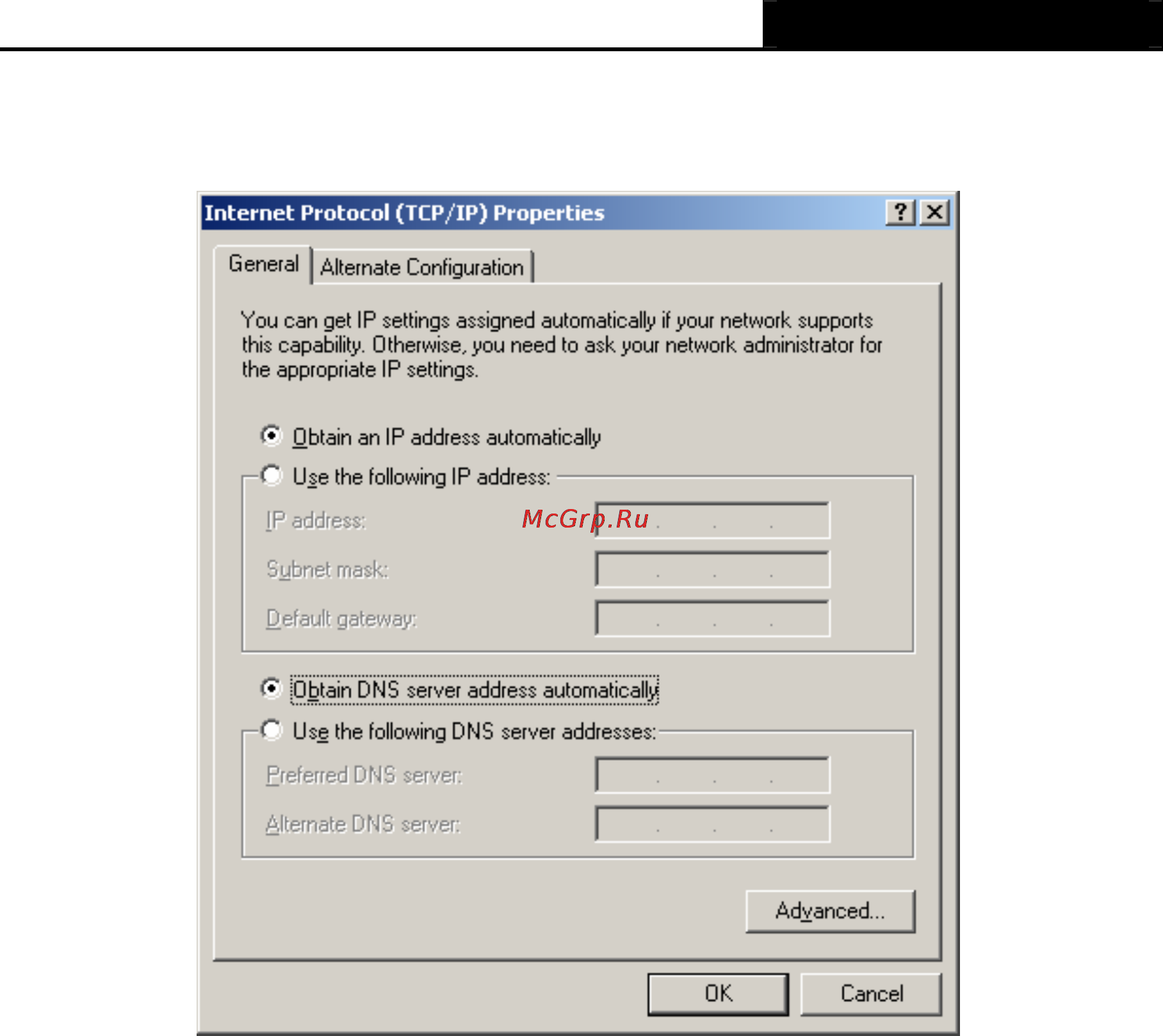

6) Select Obtain an IP address automatically and Obtain DNS server automatically, as
shown in the Figure below:
Figure B-3
-98-
