TL-WR720N 150Mbps Wireless N Router
Click Enable to enable this entry.
Click the Clear button to clear a single entry.
Click the Clear All button to clear all entries.
Click the Save button to save all configurations.
)
Note:
1. The conversion relation of bandwidth: 1Mbps = 1000Kbps.
2. Please choose the Network Connection Type and set the bandwidth according to your
Network. If you are not clear about that, please contact with your ISP for help.
3. If no IP QoS item is enabled, the Bandwidth Apply won't be effective.
4. IP address range for different entries could not have intersection with each other.
5. After the configurations, click the Save button for the change to take effect.
4.14 IP & MAC Binding

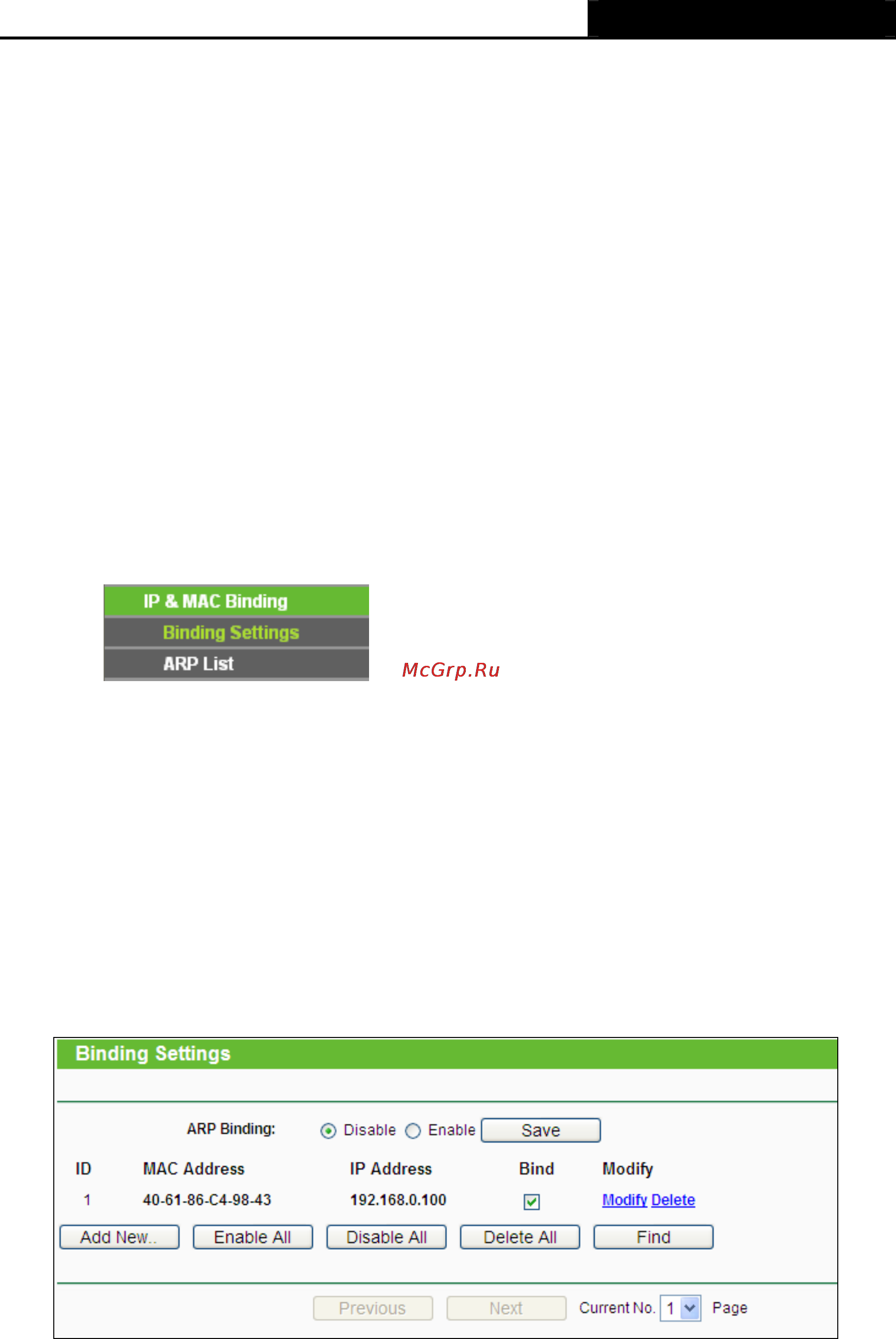

Figure 4-70 the IP & MAC Binding menu
There are two submenus under the IP &MAC Binding menu (shown in Figure 4-70): Binding
Settings and ARP List. Click any of them, and you will be able to scan or configure the
corresponding function. The detailed explanations for each submenu are provided below.
4.14.1 Binding Settings
This page displays the IP & MAC Binding Setting table; you can operate it in accord with your
desire (shown in
Figure 4-71).
Figure 4-71 Binding Setting
¾ MAC Address - The MAC address of the controlled computer in the LAN.
¾ IP Address - The assigned IP address of the controlled computer in the LAN.
-74-
