• Enable SSID Broadcast - If you select the Enable SSID Broadcast checkbox, the

Wireless AP will broadcast its name (SSID) on the air.

¾ Client - In Client mode, AP will act as a wireless station to enable wired host(s) to access

wireless AP.

• SSID - Enter the SSID of AP that you want to access. If you select the radio before SSID,

the AP client will connect to AP according SSID.

• MAC of AP - Enter the MAC address of AP that you want to access. If you select the radio

before MAC of AP, the AP client will connect to AP according MAC address.

)

Note:

To apply any settings you have altered on the page, please click the Save button, and wait the AP

reboot automatically.

Click Survey will show the site list of scanning result shown as Figure 4-13 and you can choose

one to conne

ct to.

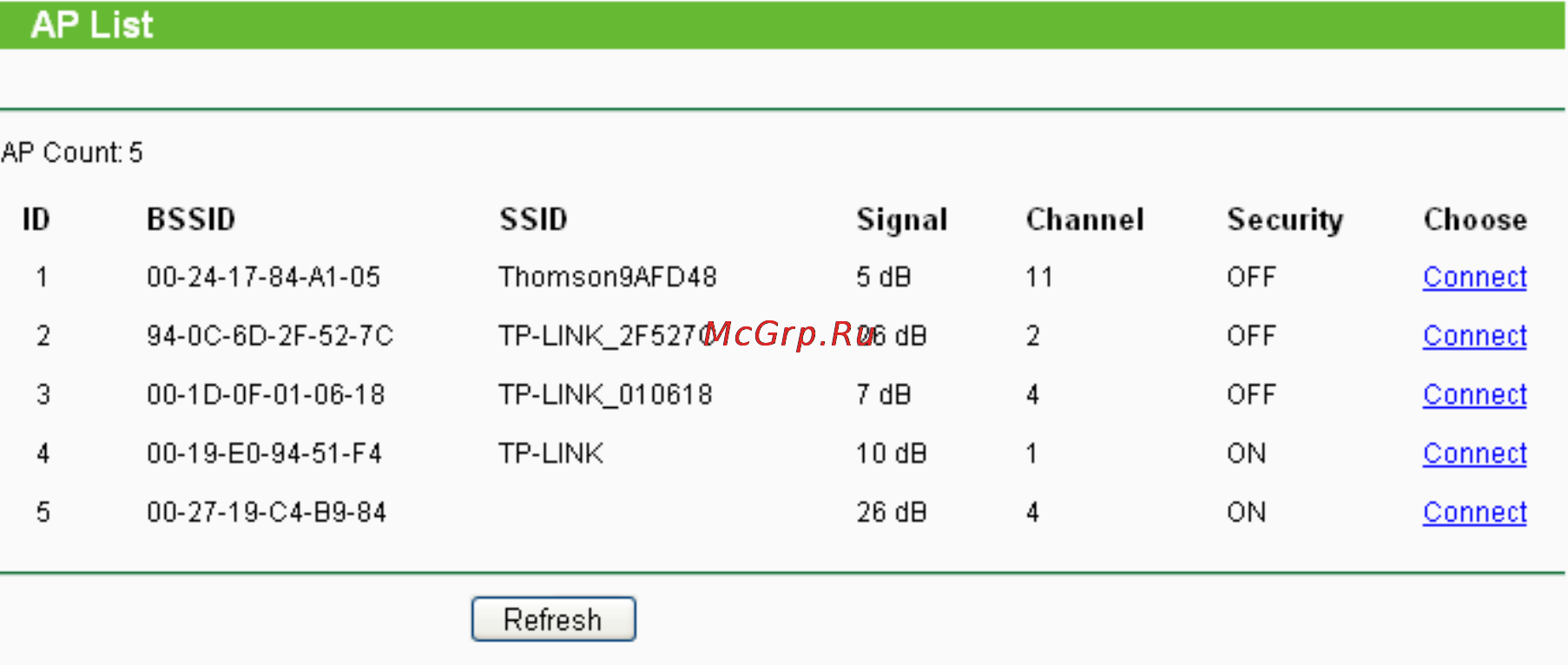

Figure 4-13 AP List

¾ BSSID - The BSSID of the AP, usually also the MAC address of the AP.

¾ SSID - The SSID of the AP.

¾ Signal - The signal received from the AP.

¾ Channel - The channel the AP works in.

¾ Security - The AP communicates in privacy.

¾ Choose - Choose one AP from list to connect to.

If you click the Connect, the values you selected will be filled in the SSID and MAC of AP fields

on Figure 4-12.

)

Note:

If you want to configure other wireless mode settings, you can change your AP to AP operation

mode on Operation Mode page as shown in Figure 4-2.

4.6.3 Security Settings

Selecting Wireless > Security Settings will enable you to configure the security of the wireless

network for your device on the page as shown in Figure 4-14.
