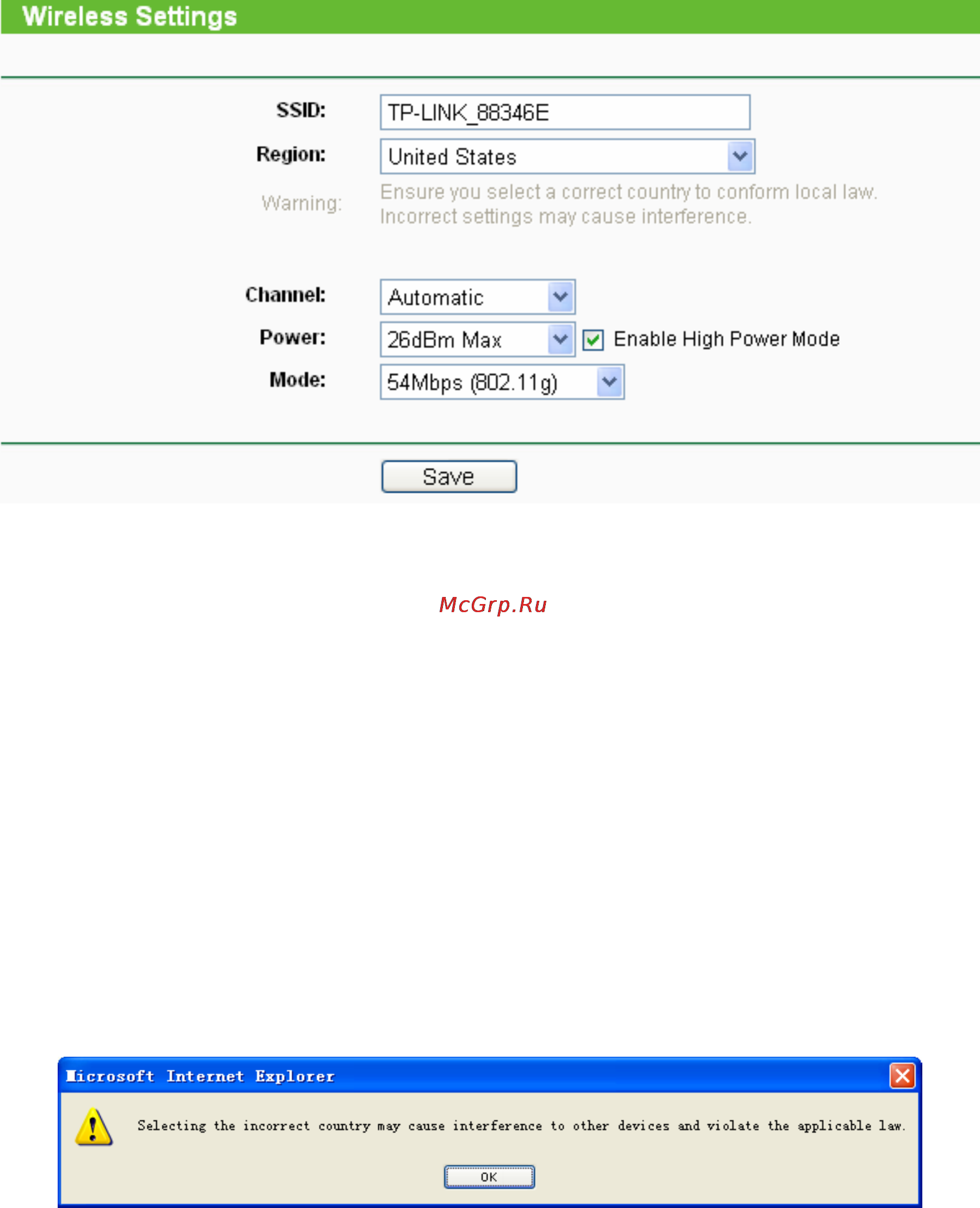

Figure 5-5 Wireless Settings in AP mode

¾ SSID (Set Service Identifier) - Identifies your wireless network name. Create a name up to 32

characters and make sure all wireless points in the wireless network with the same SSID.

The default SSID is TP-LINK_XXXXXX (XXXXXX indicates the last unique six characters of

each device’s MAC address). This value is case-sensitive. For example, TEST is NOT the

same as test.

¾ Region - Select your region from the pull-down list. This field specifies the region where the

wireless function of the device can be used. It may be illegal to use the wireless function of

the device in a region other than one of those specified in this field. If your country or region is

not listed, please contact your local government agency for assistance.

)

Note:

3) The default region is United States. When you select your local region from the pull-down list,

the dialog shown in Figure below appears. Click OK.

4) Restricted by local law regulations, version for North America does not have region selection

option.

Note Dialog

¾ Channel - Determines the operating frequency to be used. It is not necessary to change the

wireless channel unless you notice interference problems with another nearby access point.

¾ Power - The transmit power of the access point. The checkbox determines whether transmit

power uses high power or not. Checking the Enable High Power Mode option will help

improving the wireless performance, but may cause interference to other devices and violate

the applicable law in some areas. It’s not recommended that you enable high power mode in

areas that applicable law will be violated.

¾ Mode - Select the desired wireless mode. The options are:

• 54Mbps (802.11g) - Both 802.11g and 802.11b wireless stations can connect to the
