¾ Access Point - Access Point mode allows wireless stations including AP clients to access

the router.

• Enable SSID Broadcast - If you select the Enable SSID Broadcast checkbox, the

Wireless AP will broadcast its name (SSID) on the air.

¾ Client - In Client mode, AP will act as a wireless station to enable wired host(s) to access

wireless AP.

• Enable WDS - The AP client can connect to AP with WDS enabled or disabled. If WDS is

enabled, all traffic from wired networks will be forwarded in the format of WDS frames

consist of four address fields. If WDS is disabled, three address frames are used. If your

AP supports WDS well, please select the option.

• SSID - Enter the SSID of AP that you want to access. If you select the radio before SSID,

the AP client will connect to AP according SSID.

• MAC of AP - Enter the MAC address of AP that you want to access. If you select the radio

before MAC of AP, the AP client will connect to AP according MAC address.

¾ Repeater - The Repeater mode is the AP with its own BSS and with WDS enabled that

relays data to a root AP, to which it is associated. The wireless repeater relays signal

between its stations and the root AP for greater wireless range. Please input the MAC

address of root AP in the field of MAC of AP.

¾ Universal Repeater - The Universal Repeater mode is the AP with its own BSS and with

WDS disabled that relays data to a root AP, to which it is associated. The wireless repeater

relays signal between its stations and the root AP for greater wireless range. Please input the

MAC address of root AP in the field of MAC of AP.

)

Note:

If the available AP can’t support with WDS, you may select Client mode without WDS or Universal

Repeater mode to associate with the AP.

Here is an example of how to configure wireless repeater. Please do the following:

1. Configure the Operating Mode of the TL-WA5110G 54Mbps High Power Wireless Access

Point.

• Configure AP1 on LAN Segment 1 in Access Point mode.

• Configure AP2 in Repeater mode with the MAC address of its root AP (AP1).

• Configure AP3 in Repeater mode with the MAC address of its root AP (AP2).

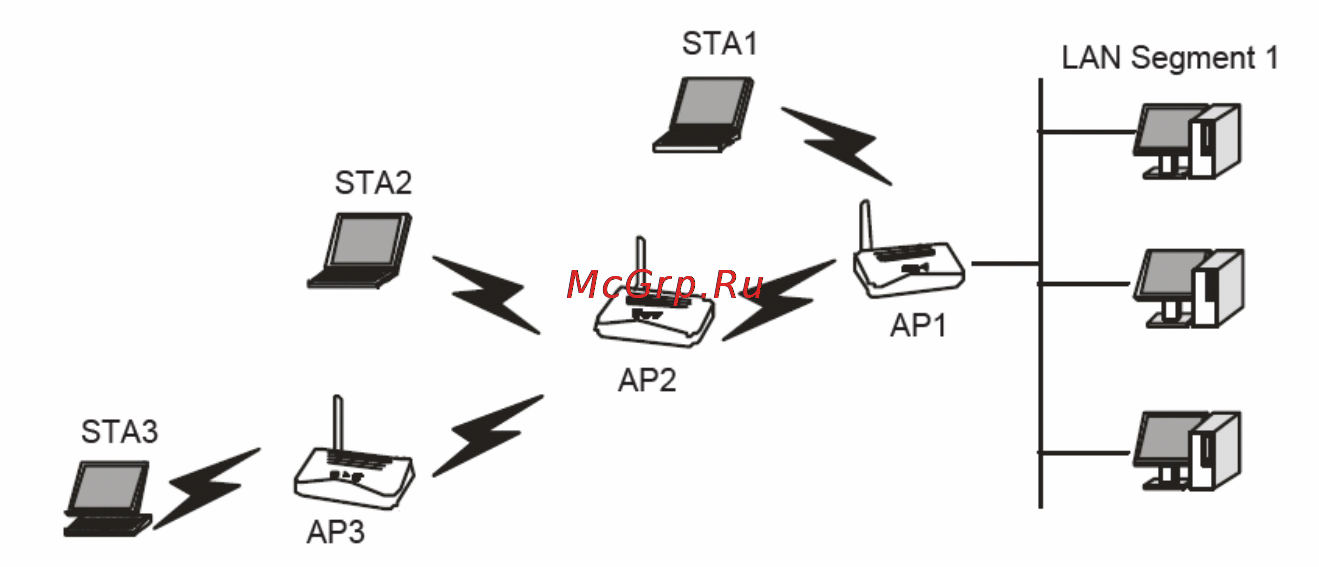

Figure 5-7 Wireless repeating

2. Verify the wireless security parameters for all access points, if any.
