Tp-Link TL-WA5210G [56/114] Advanced security

from a remote location via the Internet.

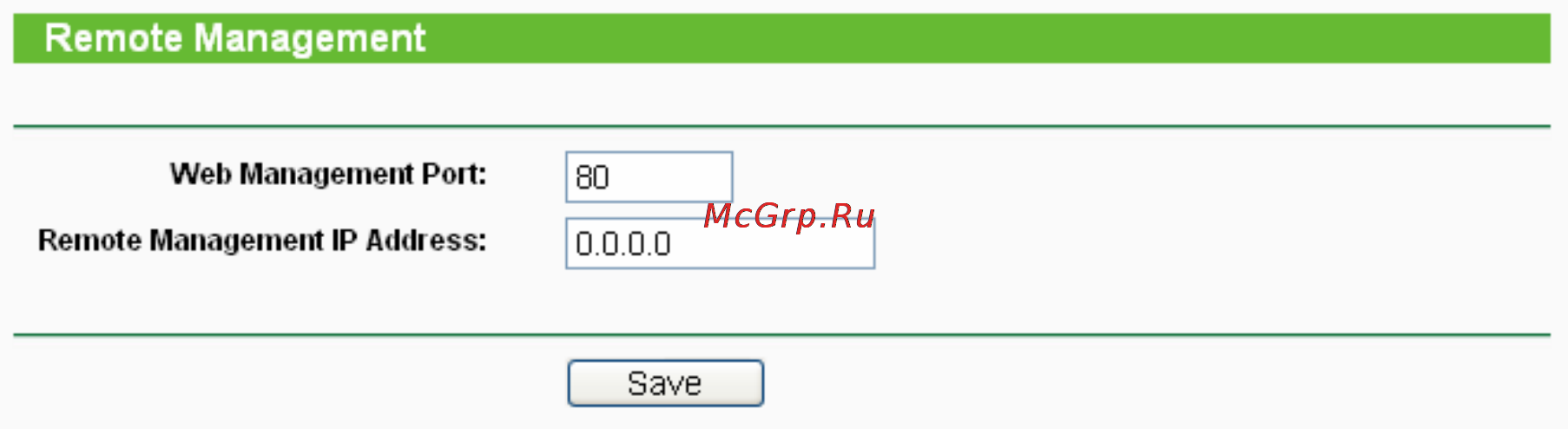

Figure 4-42 Remote Management

¾ Web Management Port - Web browser access normally uses the standard HTTP service

port 80. This Router's default remote management web port number is 80. For greater

security, you can change the remote management web port to a custom port by entering that

number in the box provided. Choose a number between 1 and 65534 but do not use the

number of any common service port.

¾ Remote Management IP Address - This is the current address you will use when accessing

your Router from the Internet. This function is disabled when the IP address is set to the

default value of 0.0.0.0. To enable this function change 0.0.0.0 to a valid IP address. If set to

255.255.255.255, then all the hosts can access the Router from internet.

) Note:

1) To access the Router, you should type your Router's WAN IP address into your browser's

address (in IE) or Location (in Navigator) box, followed by a colon and the custom port

number. For example, if your Router's WAN address is 202.96.12.8, and the port number

used is 8080, please enter http://202.96.12.8:8080 in your browser. Later, you may be

asked for the Router's password. After successfully entering the username and password,

you will be able to access the Router's web-based utility.

2) Be sure to change the Router's default password to a very secure password.

4.10.6 Advanced Security

Selecting Security > Advanced Security will enable you to protect the router from being

attacked by TCP-SYN Flood, UDP Flood and ICMP-Flood from LAN as shown in Figure 4-43.
