Installation:

1. Assembly the two pieces of reflector symmetrically.

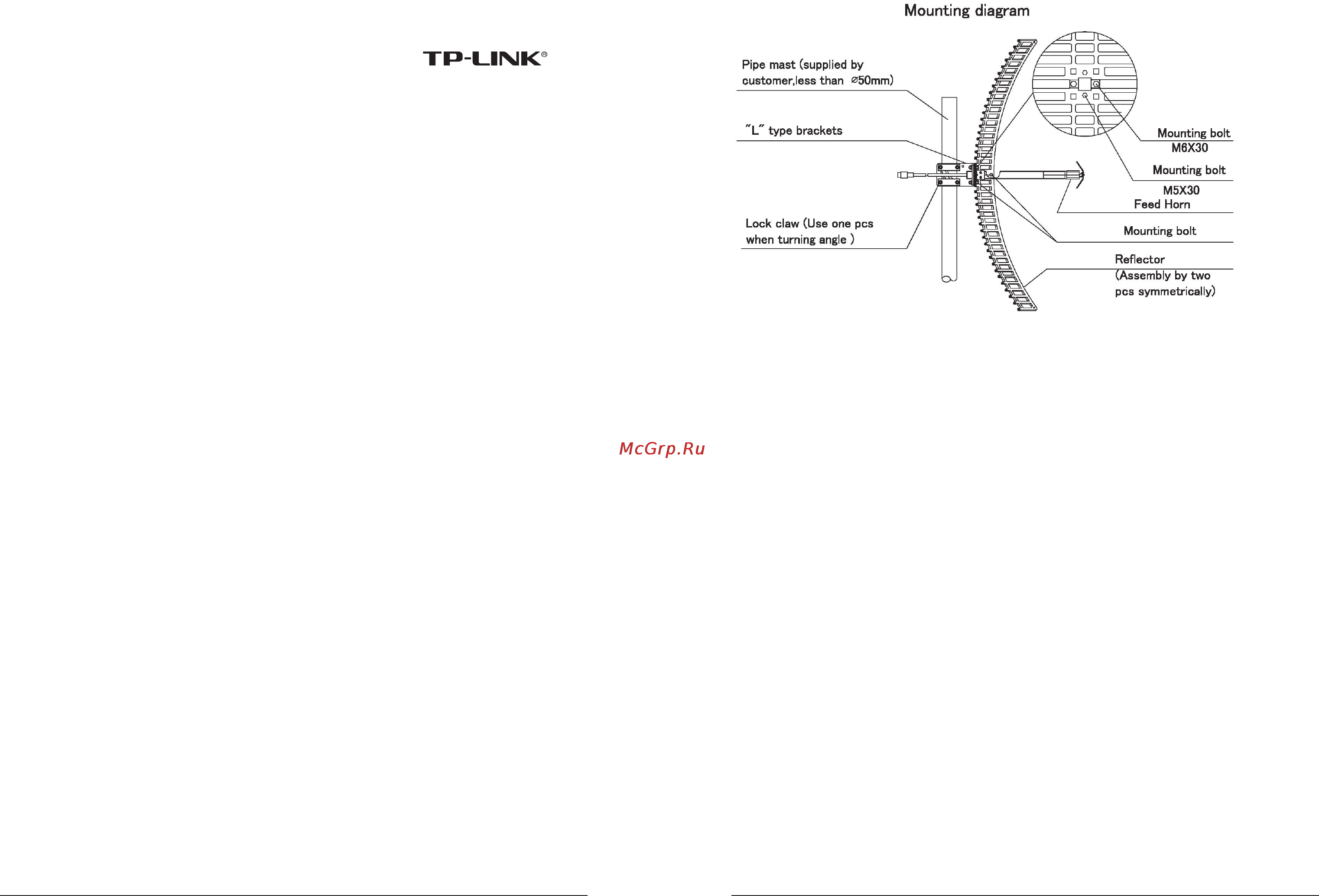

2. Mount the feed horn on the reflector according to the Mounting

diagram. Make sure the feed dipoles parallel with most bars of the grid

reflector. When the feed dipoles and most grid bars are vertical to the

ground, the antenna is vertical polarized. When the feed dipole and

most grid bars are horizontal to the ground, the antenna is horizontal

polarized.

3. Mount the “L” type bracket at the back of the reflector, then mount the

antenna on the mast supplied by customer according to the Mounting

diagram.

4. Test the antenna with equipment to make sure the antenna receive

the best signal by turning the azimuth and pitching angle, then lock all

the screws and seal the connector between antenna and cable.
