TL-MR3420 3G/3.75G Wireless N Router
-14-

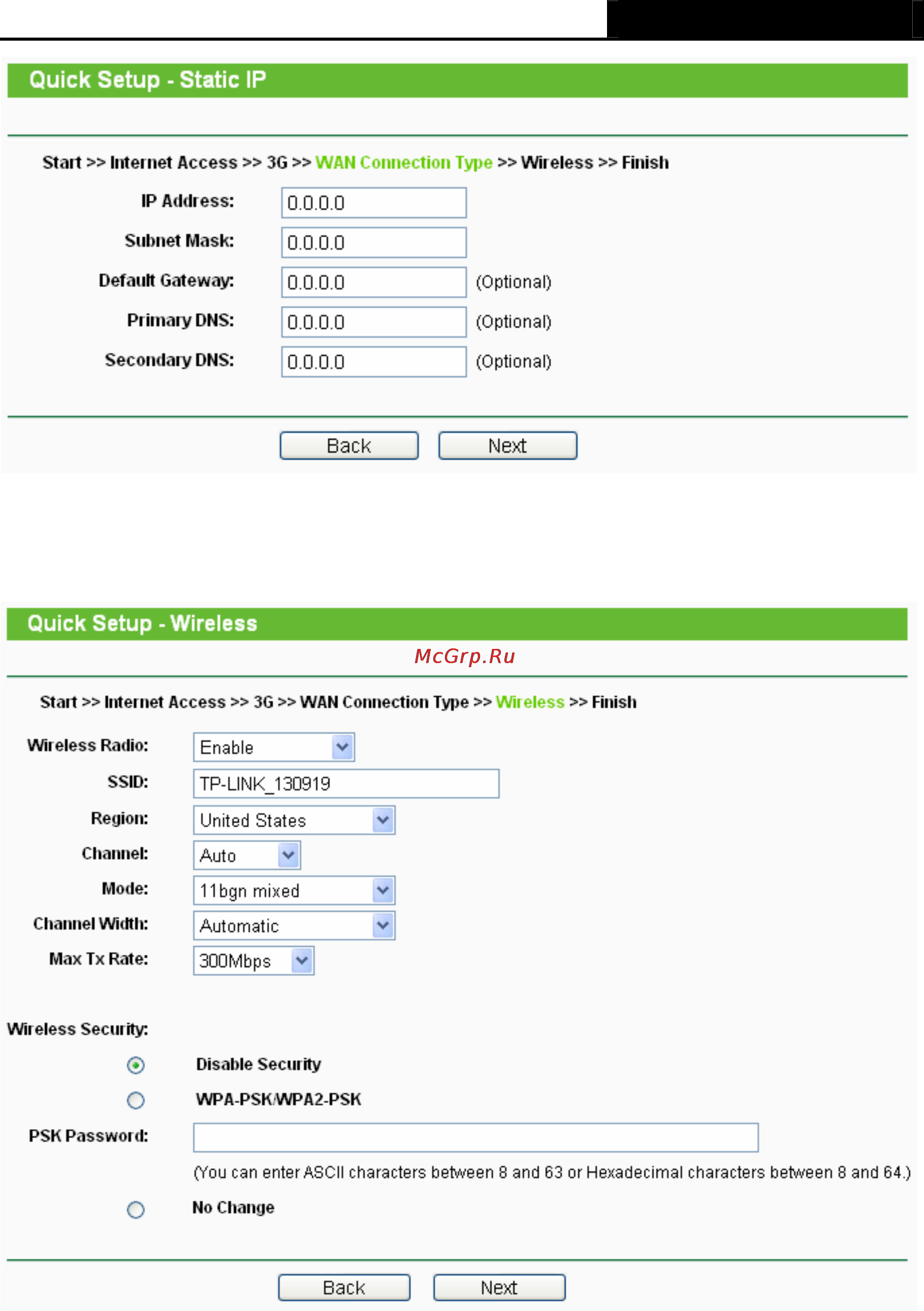

Figure 3-10 Quick Setup - Static IP
6. Click Next to continue, the Wireless settings page will appear as shown in Figure 3-11.
Figure 3-11 Quick Setup – Wireless
¾ Wireless Radio - Enable or disable the wireless radio choosing from the pull-down list.
¾ SSID - Enter a value of up to 32 characters. The same name of SSID (Service Set
Identification) must be assigned to all wireless devices in your network. Considering your
wireless network security, the default SSID is set to be TP-LINK_XXXXXX (XXXXXX
