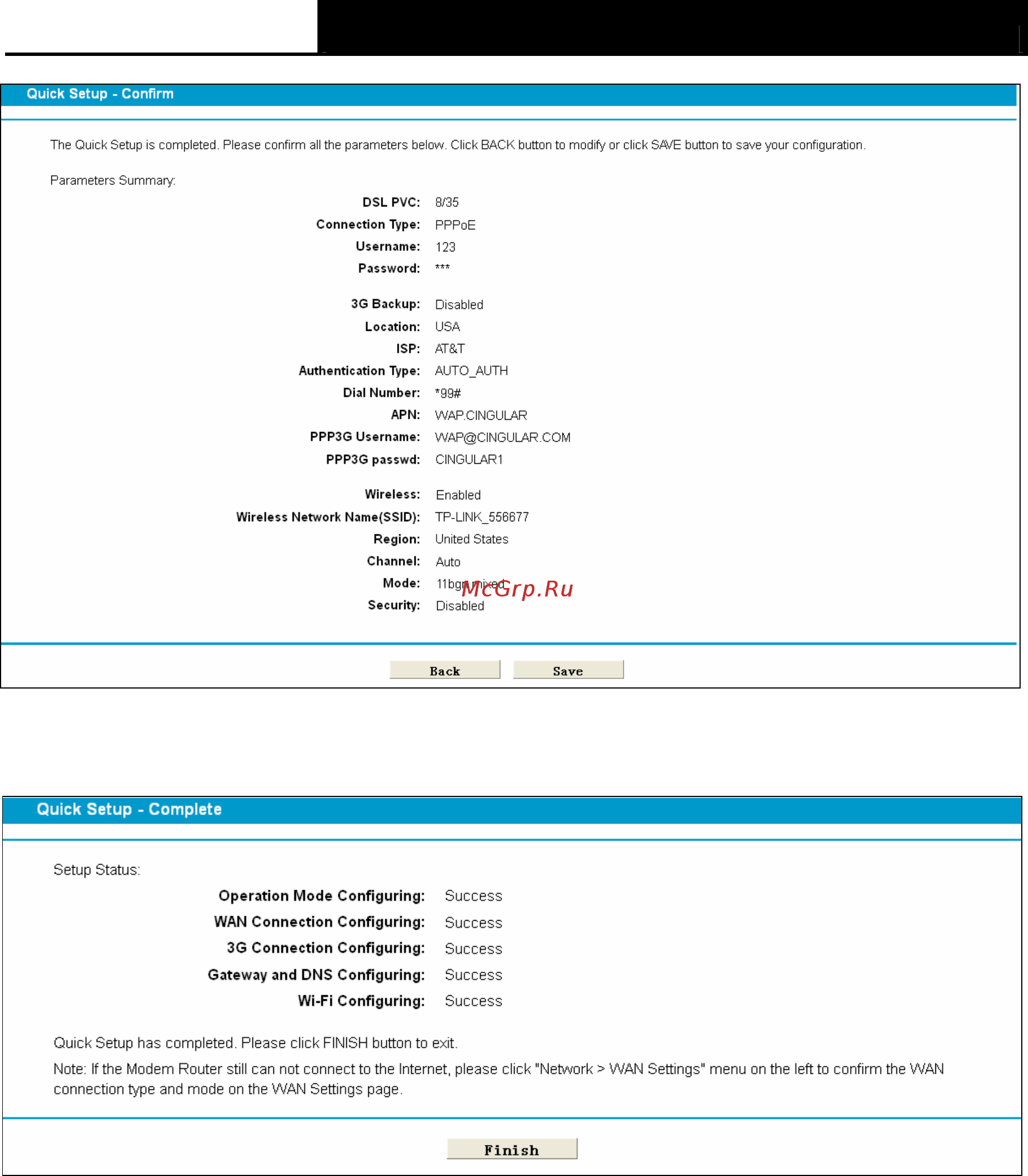

TD-W8968 300Mbps Wireless N USB ADSL2+ Modem Router User Guide
19
Figure 3-19
7. You will see the Complete screen below, click Finish to complete these settings.
Figure 3-20
