TD-W8968 300Mbps Wireless N USB ADSL2+ Modem Router User Guide
24

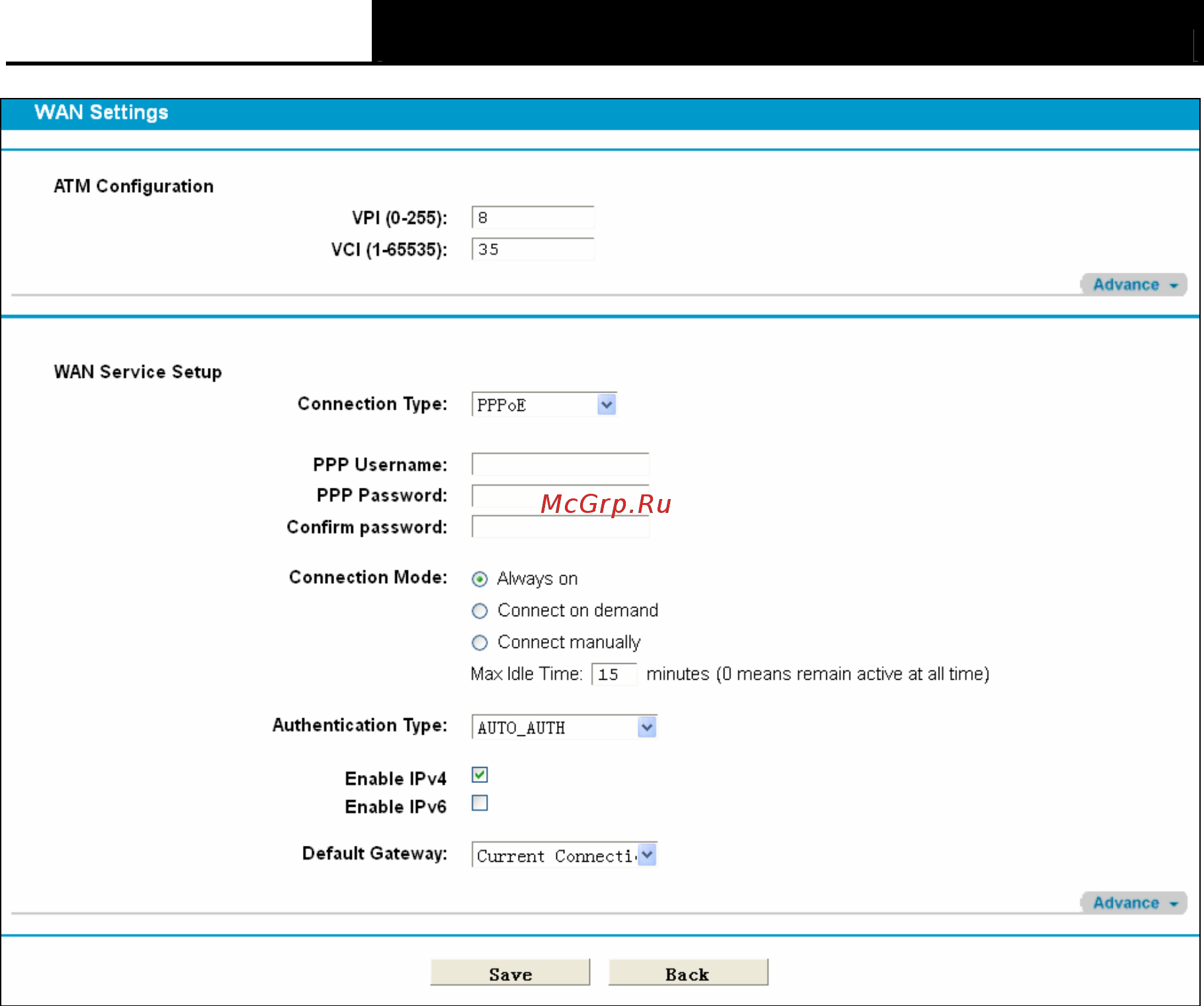

Figure 4-4
4.5.1.1 Static IP
Select this option if your ISP provides static IP information to you. You should set static IP address,
IP subnet mask, and gateway address in the screen below.
