TD-8816 ADSL2+ Modem Router User Guide

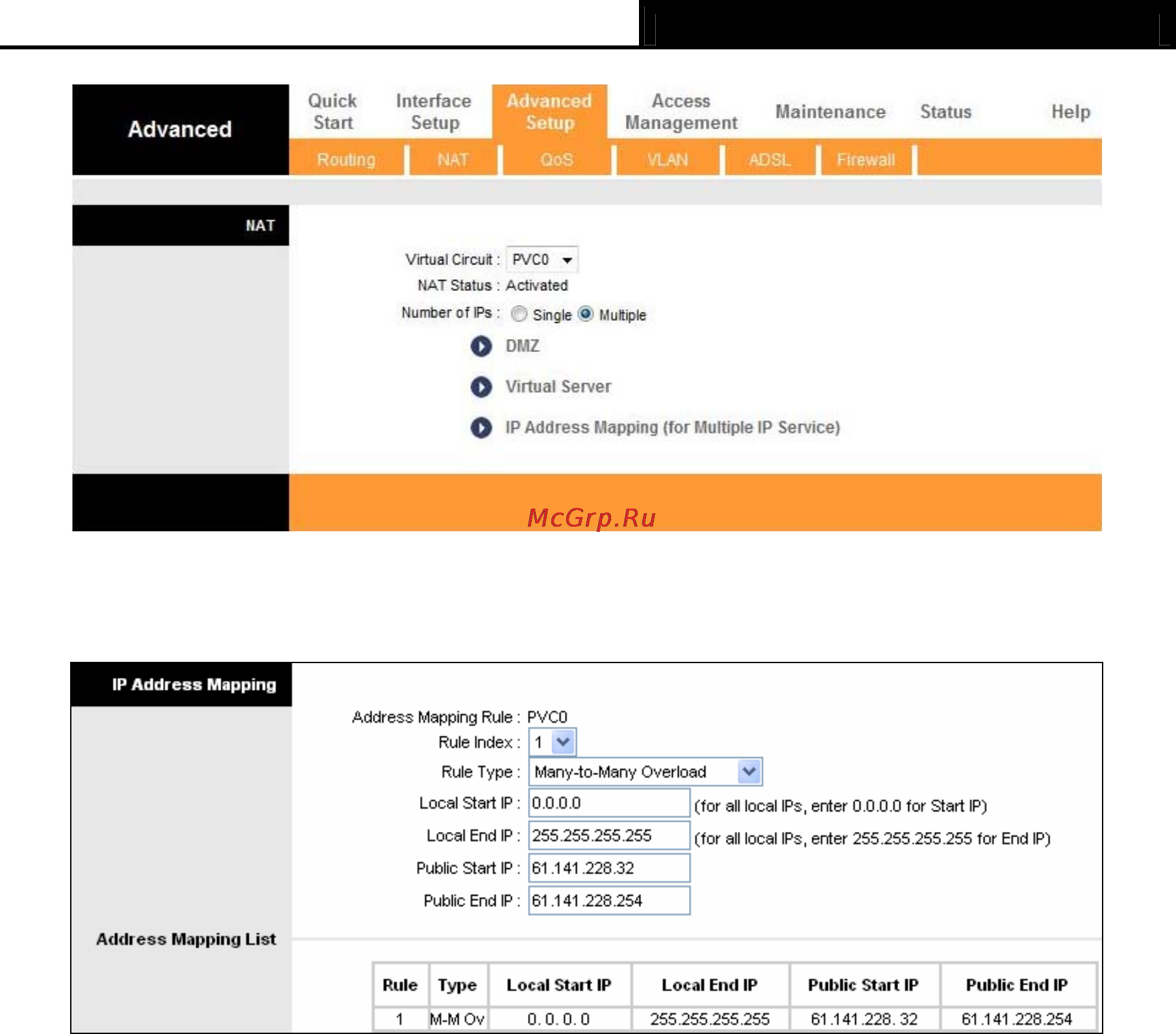

Figure 4-21

Figure 4-22

¾ Rule Index: Select the Virtual server rule index for this VC. You can specify 10 rules in

maximum. All the VCs with single IP will use the same Virtual Server rules.

¾ Rule Typ: There are four types of one-to-one, Many-to-One, Many-to-Many Overload and

Many-to-Many No-overload.

¾ Local Start & End IP: Enter the local IP Address you plan to mapped to. Local Start IP is the

starting local IP address and Local End IP is the ending local IP address. If the rule is for all

local IPs, then the Start IP is 0.0.0.0 and the End IP is 255.255.255.255.

¾ Public Start & End IP: Enter the public IP Address you want to do NAT. Public Start IP is the

starting public IP address and Public End IP is the ending public IP address. If you have a

dynamic IP, enter 0.0.0.0 as the Public Start IP.

¾ Address Mapping List: This displays the information about the Mapping addresses.

To add a mapping rule:

Step 1: Select the “Virtual Circuit” and Multiple for the “Number of IPs”. Then select the tab IP

Address Mapping for the Virtual server (shown in Figure 4-18).

)

Note:

IP Address Mapping is only available for VCs with Multiple IPs.

Step 2: Select the Rule index for the rule as shown in Figure 4-22.
