Tp-Link TL-SG3424 [220/241] The following entries are displayed on this screen

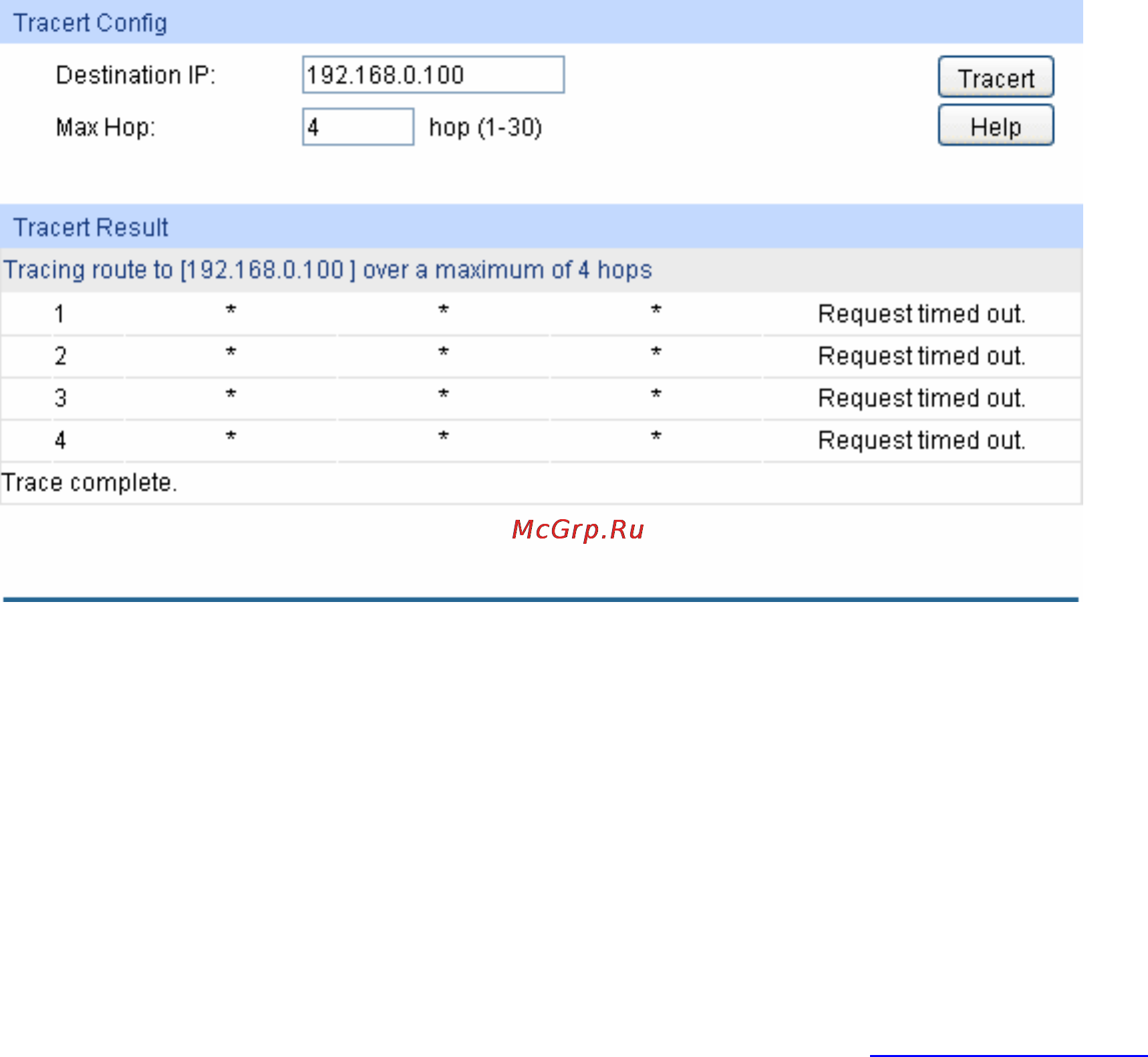

Figure 14-10 Tracert

The following entries are displayed on this screen:

 Tracert Config

Destination IP: Enter the IP address of the destination device.

Max Hop: Specify the maximum number of the route hops the test data can pass

through.

Return to
