age and the configuration on IP-Range page together to function to implement multicast filter

function on the switch.

Choose the menu Multicast→Multicast Filter→Port Filter to load the following page.

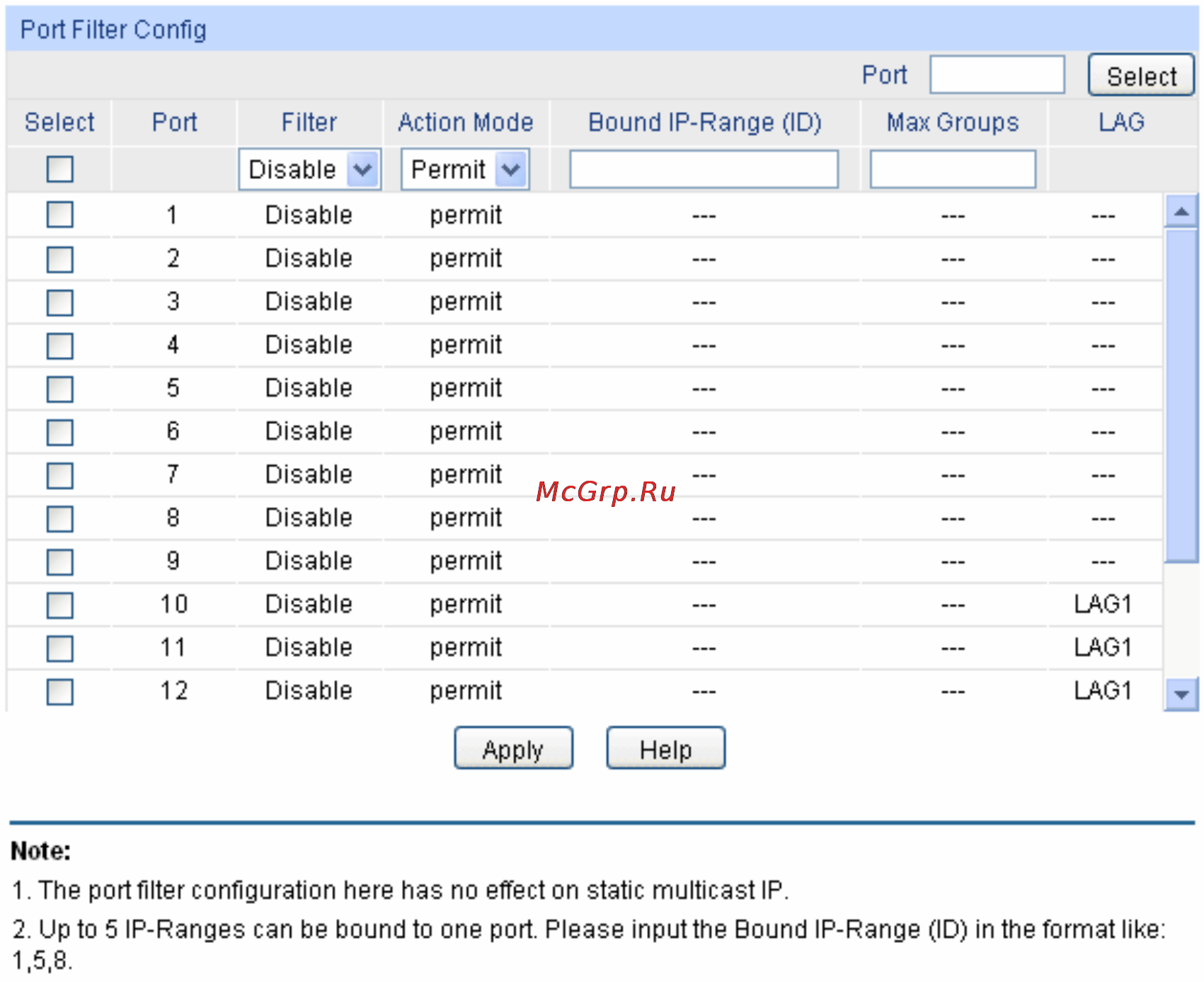

Figure 8-9 Port Filter

The following entries are displayed on this screen:

 Port Filter Config

Port Select: Click the Select button to quick-select the corresponding port

based on the port number you entered.

Select: Select the desired port for multicast filtering. It is multi-optional.

Port: Displays the port number.

Filter: Select Enable/Disable multicast filtering feature on the port.

Action Mode: Select the action mode to process multicast packets when the

multicast IP is in the filtering IP-range.

 Permit: Only the multicast packets whose multicast IP is in

the IP-range will be processed.

 Deny: Only the multicast packets whose multicast IP is not

in the IP-range will be processed.

Bound IP-Range (ID): Enter the IP-rang ID the port will be bound to.

Max Groups: Specify the maximum number of multicast groups to prevent

some ports taking up too much bandwidth.
