Tp-Link TL-SF1016 [13/16] Power on

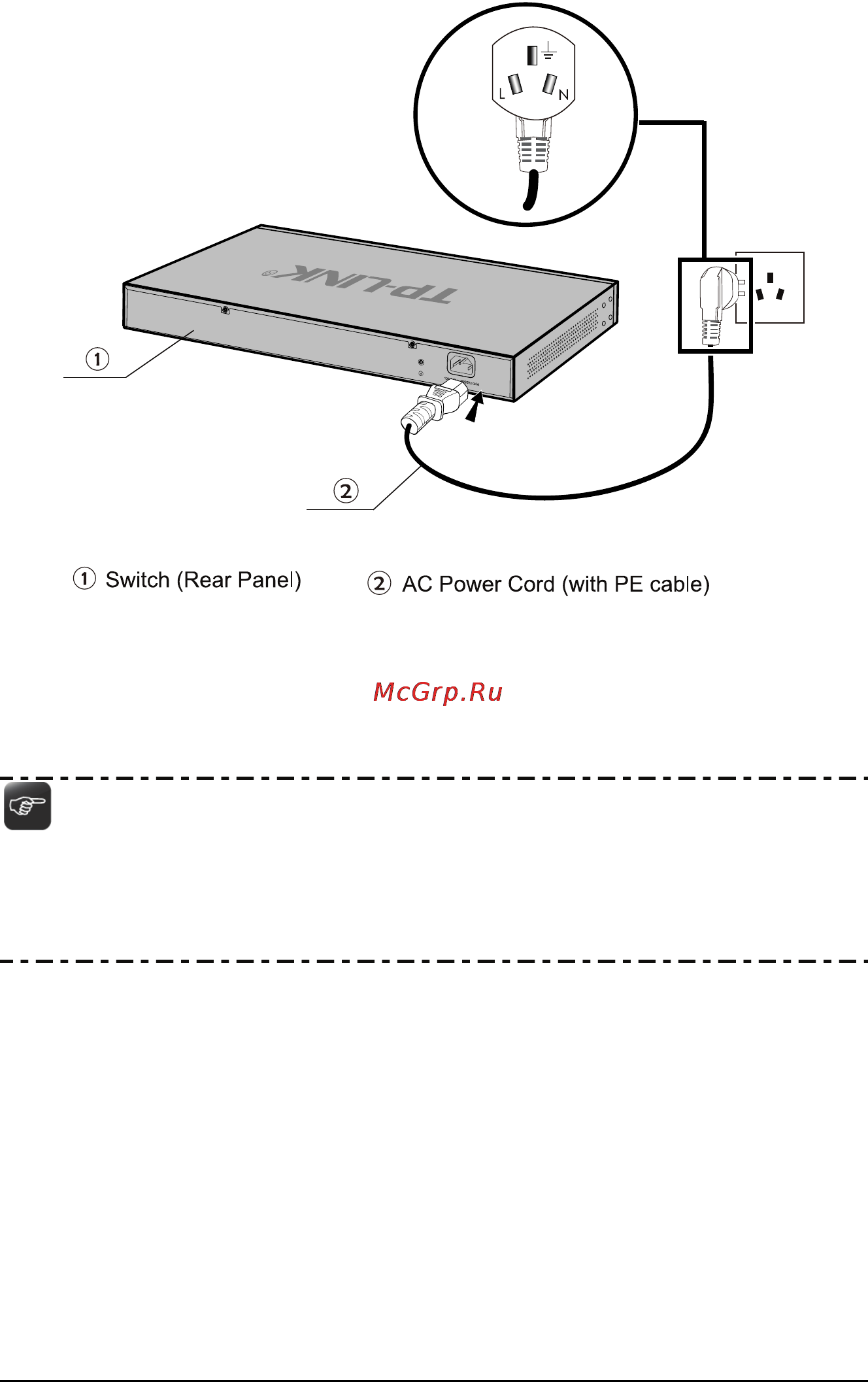

Figure 3-5

* The figure is to illustrate the application and principle. The power plug you get from the package

and the socket in your situation will comply with the regulation in your country, so they may differ

from the figure above.

Note:

If you intend to connect the Switch to the ground via the PE (Protecting Earth)

cable of AC power cord, please make sure the PE (Protecting Earth) cable in the

electrical outlet is well grounded in advance.

3.4 Power on

The TL-SF1016/TL-SF1016DS/TL-SF1024/TL-SF1024D/TL-SF1048 16/24/48-port

10/100Mbps Fast Ethernet Switch is powered by an AC Power Supply. Connect

the Switch and power outlet by power cord. Powering on the Switch, it will be

automatically initialized and the LED indicators should respond as follows:

1) All of the LED indicators will flash momentarily for one second, which

represents a resetting of the system.

2) The Power LED indicator will light up.
