Tp-Link TL-SG1008D [8/12] Rear panel
![Tp-Link TL-SG1008D [8/12] Rear panel](/views2/1042189/page8/bg8.png)
4
The Switch’s LEDs are located on the front panel:
¾ Power LED: This indicator will light up when the Switch
powers up.
¾ LEDs (1~8): The LED indicates Link/Active status. The
corresponding LED indicator will light solid green when
connected to a network device. It flashes green when data is
being transmitted or received on the working connection.
Note:
The LEDs’ description above explains the device’s working
status after initialization.
2.2 Rear Panel

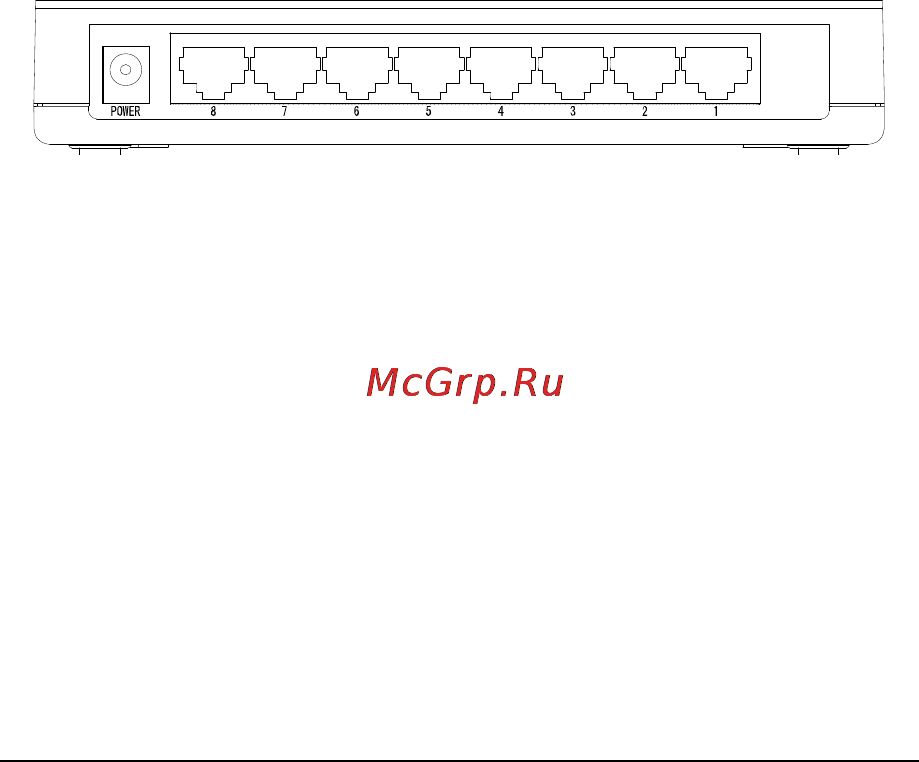

Figure 2-2 TL-SG1008D Switch Rear Panel
The following parts are located on the rear panel.
¾ POWER: The POWER socket is where you will connect the
power adapter. Please use the power adapter provided with
this TL-SG1008D Switch.
¾ Port (1-8): The TL-SG1008D Switch is equipped with 8
10/100/1000Mbps Auto-Sensing RJ45 ports where you will
connect your network devices. The working status can be
indicated by the corresponding LEDs on the front panel.
