-49-
The first entry in Figure 3-29 indicates: The IP address of host1 in local network is 1.1.1.1 and the
WAN IP address after NAT mapping is specified to be 2.2.2.2. The data packets are transmitted from
WAN1 port. DMZ Forwarding and this entry are both activated.
Note:
One-to-One NAT entries take effect only when the Connection Type of WAN is Static IP. Changing the
Connection type from Static IP to other ones will make the entries attached to the interface disabled.
3.3.1.3 Multi-Nets NAT
Multi-Nets NAT functions to allow the IP under LAN or DMZ port within multiple subnets to access the
Internet via NAT.
Choose the menu Advanced→NAT→Multi-Nets NAT to load the following page.

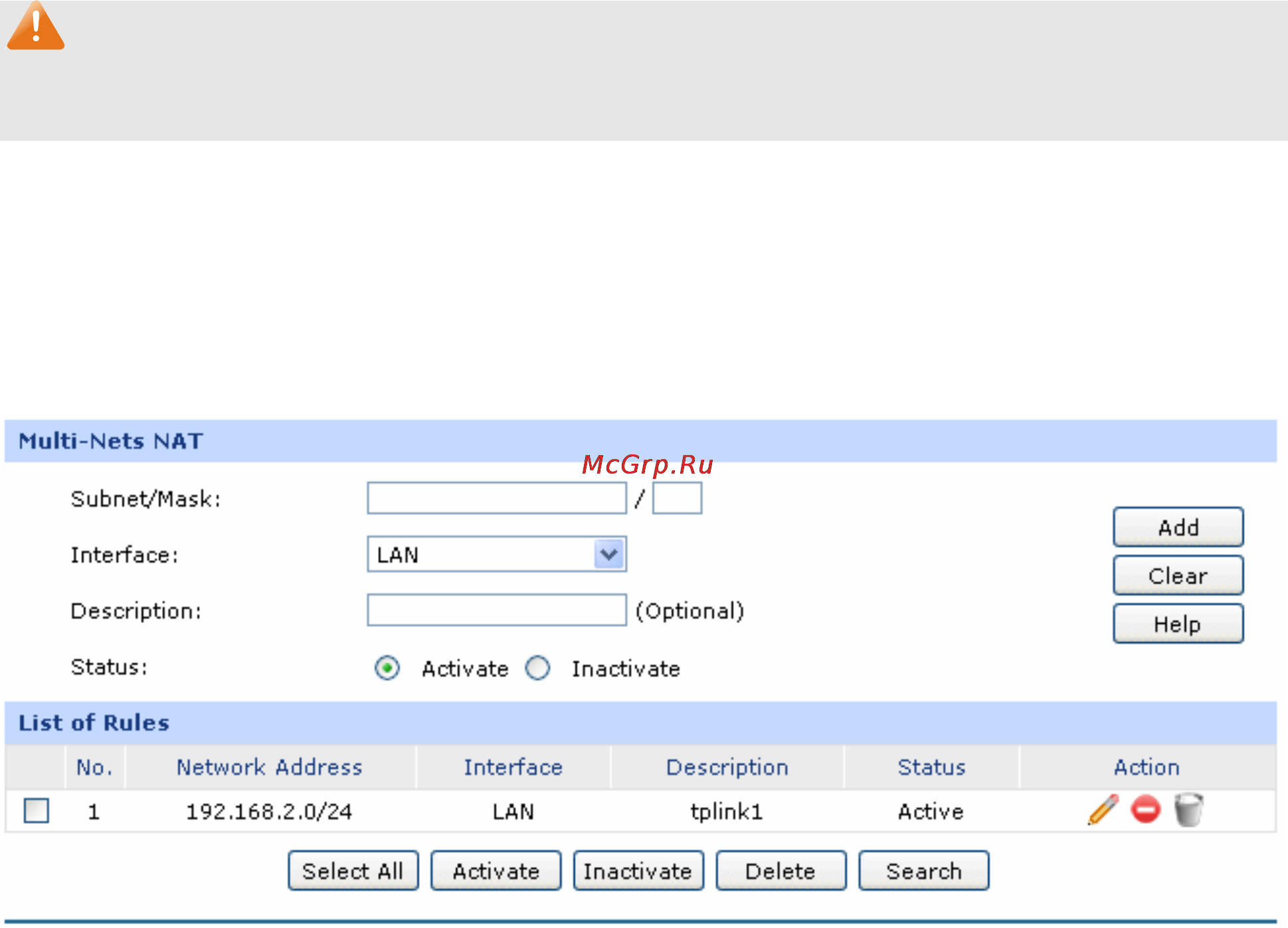

Figure 3-30 Multi-Nets NAT
The following items are displayed on this screen:
¾ Multi-Nets NAT
Subnet/Mask:
Enter the subnet/mask to make the address range for the entry.
Interface:
Select the interface for the entry. You can select LAN or DMZ port.
Description:
Give a description for the entry.
Status:
Activate or inactivate the entry.
¾ list of Rules
You can view the information of the entries and edit them by the Action buttons.
