ENGLISH
BEFORE YOU OPERATE THE MONITOR 7
Power Indicator
Blue: Normal operation
Orange: Power Management
PowerSwitch()
Menu/SelectButton(ENTER)
ScrollDown/VolumeButton( / )
ScrollUp/ECOModeButton( / )
ExitButton(EXIT)
InputSelectButton(INPUT)
Speakers
USB Downstream Connector ( )
USB Upstream Connector ( )
Keyhole for Security Lock
You can fasten a security lock and cable to prevent the monitor from being removed
without your permission.
DisplayPortConnector(DP)
HDMIConnector(HDMI)
DVI-DConnector(DVI-D)
Cable Holes
HeadphoneConnector(LINEOUT)
AudioConnector(LINEIN)
ACConnector( :Alternatingcurrent)( )
NOTE
NOTE
CONTROLS AND CONNECTORS

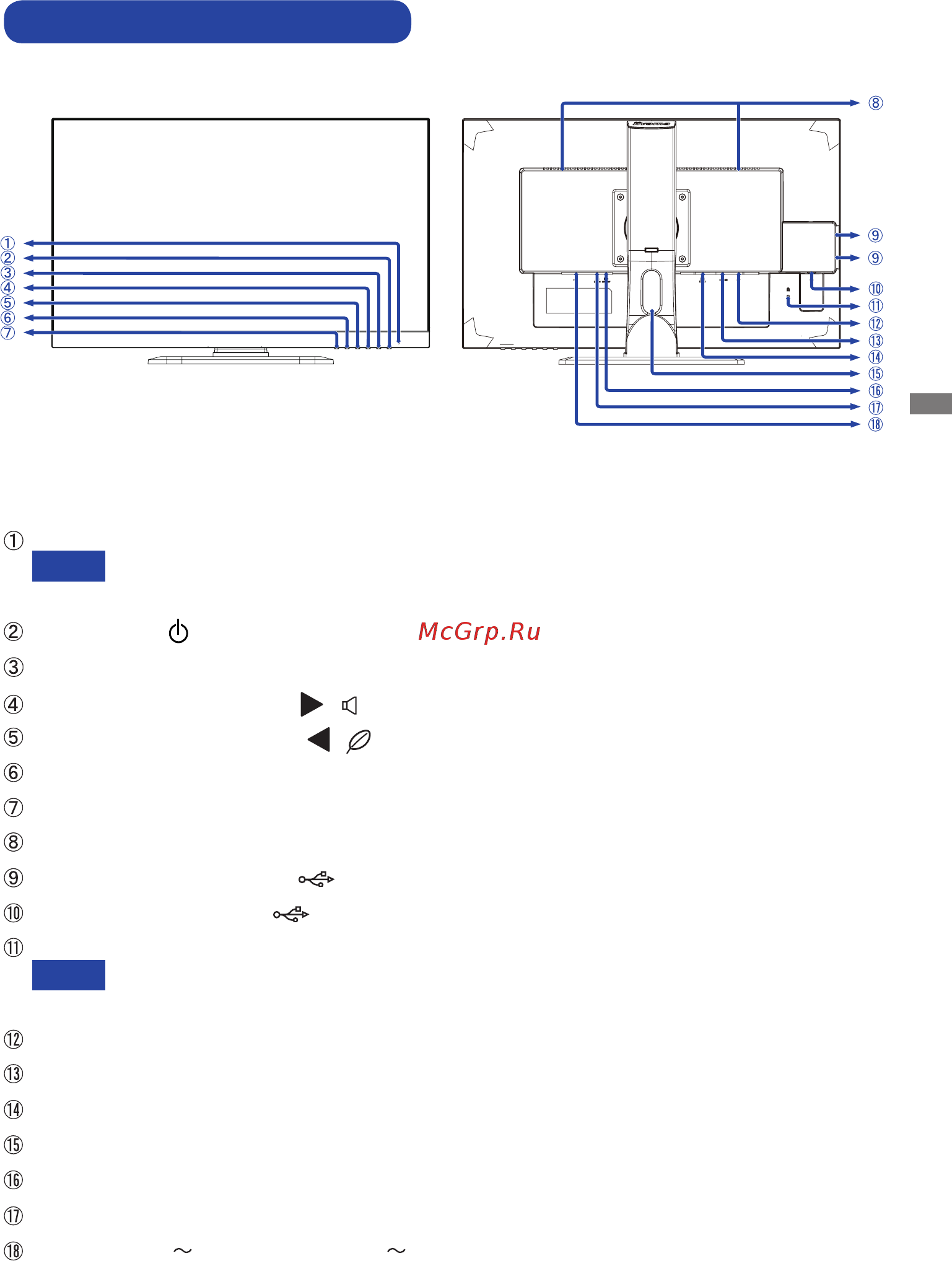

<Front>
<Back>
