TL-PA251 AV200+ Multi-Streaming Powerline Adapter With AC Pass Through

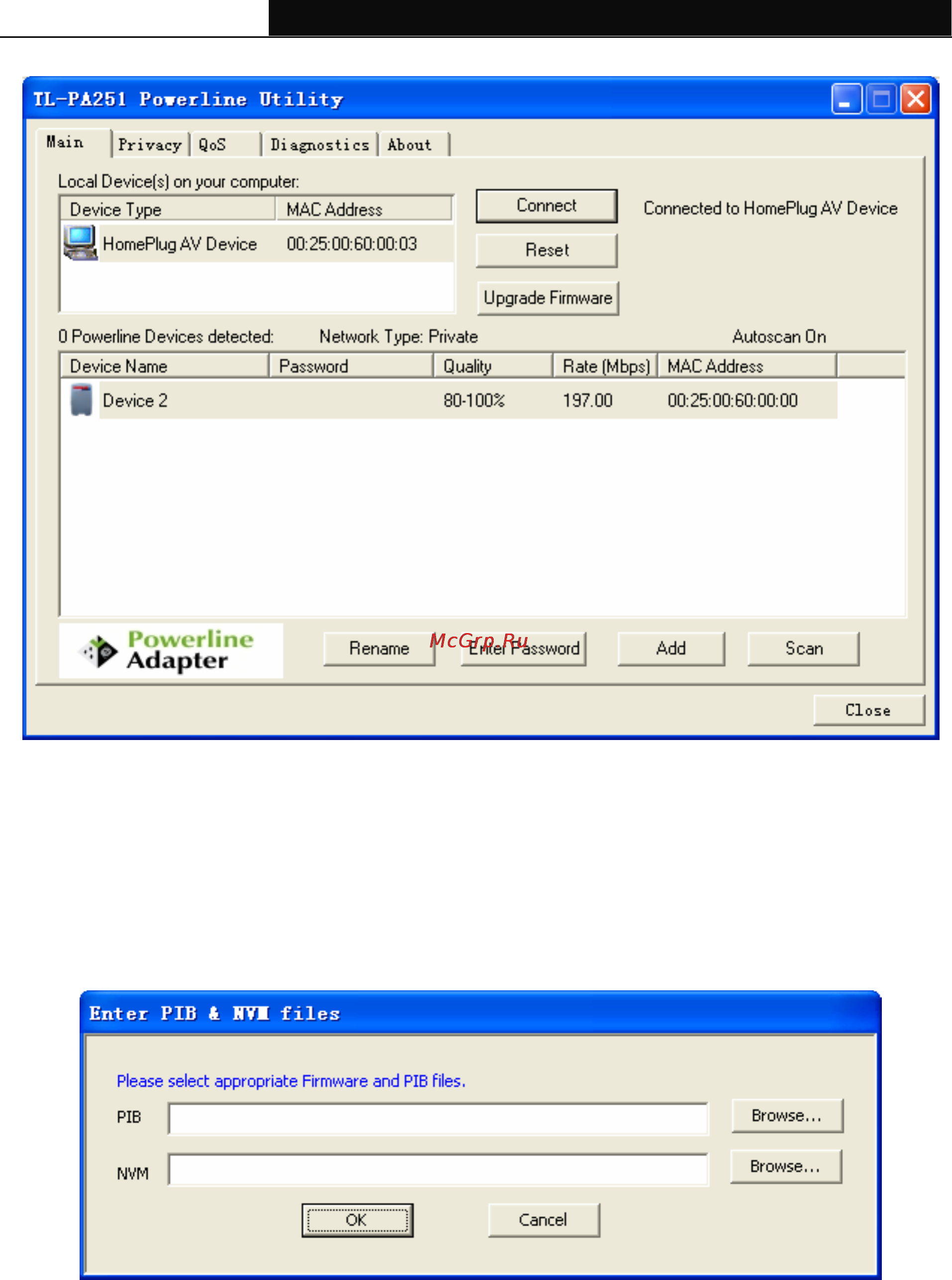

¾ Local Device(s) on your computer: This shows all local Powerline Ethernet Adapter found

connected to the computer’s LAN card. In most cases, only one device will display in this panel. Click

and select the local device shown on the screen then click “Connect” tab to manage the Powerline

Ethernet Adapter. The status message will be shown above the “Connect” button indicates that

your PC is connected to the same device. Once the chosen Powerline Ethernet Adapter is properly

connected, this Management Utility will automatically scan the power line periodically for any other

existing powerline devices. You can upgrade the version of firmware for the device by clicking the

Upgrade Firmware button which is shown as below.

z PIB: Parameter Information Block. It contains configuration values that establish device network

identity, general capabilities and operational modes.

z NVM: None-volatile memory. It is used for upgrading the firmware.

If you want to upgrade the version of firmware for the device, please select appropriate Firmware

and PIB files together. New firmware versions and PIB files are posted at http://www.tp-link.com and

can be downloaded for free.
