TL-PA251 AV200+ Multi-Streaming Powerline Adapter With AC Pass Through

1.2 Physical Interface

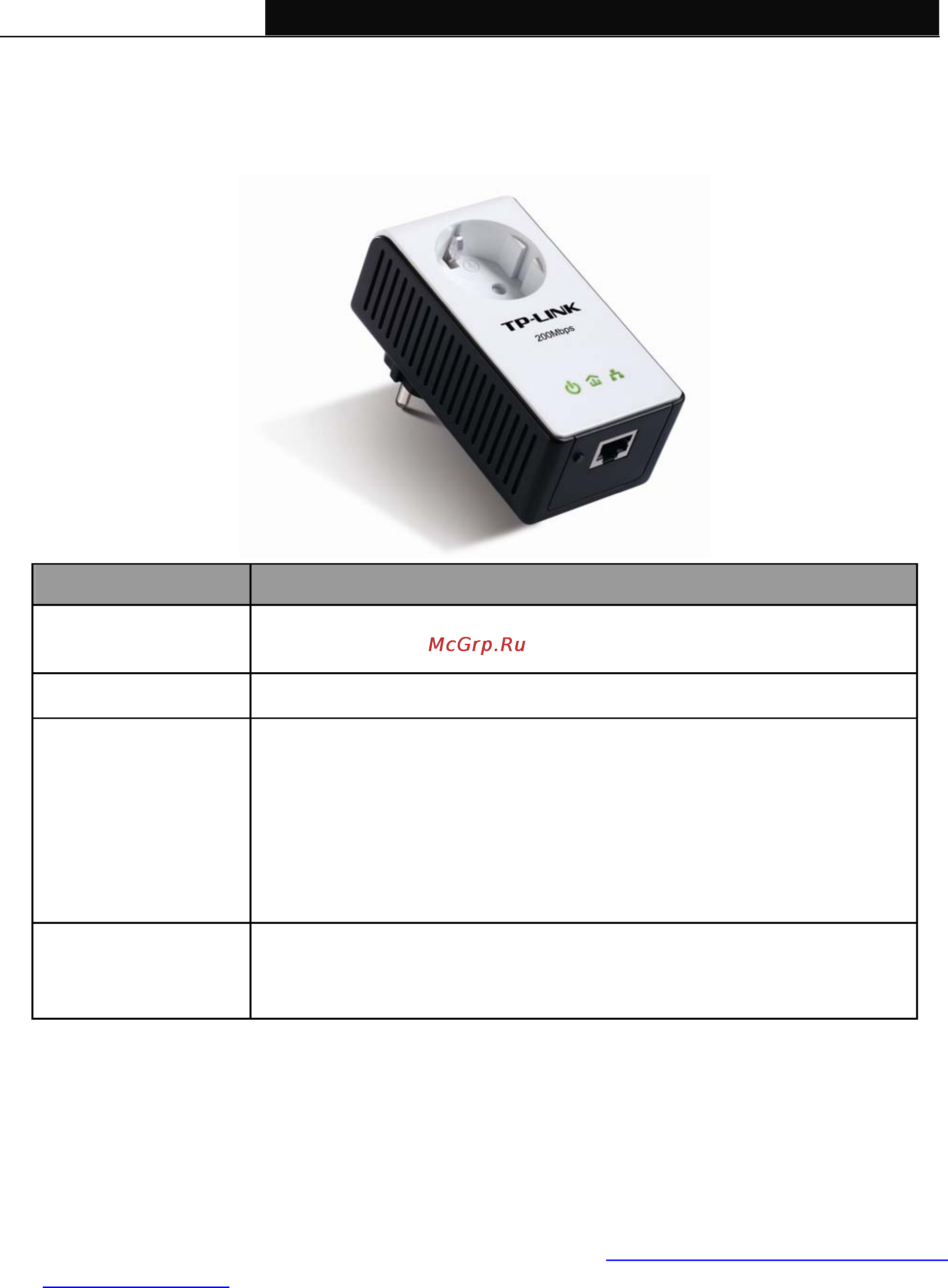

There are four physical interfaces on this Powerline Adapter.

Interface Description

Ethernet Port

It is a 10/100Mbps Ethernet port on the AV adapter for connecting it

to the PC or the broadband device with the network cable.

Power Plug*

A Power Plug connected to any 100V ~ 240V AC power socket

Pair Button

Pair buttons are used to secure a powerline network. To secure

your network, please follow the steps below. Firstly, plug in a new

adapter, and press its pair button for 3 to 8 seconds; then plug in

another adapter and press its pair button for 3 to 8 seconds as well.

The two buttons should be pressed within 2 minutes of each other.

After that, wait about 60 seconds so that the two adapters can finish

connecting.

Integrated Electrical

Socket

The integrated electrical socket allows additional devices or

multiple sockets to be connected to the adapter just like to a normal

wall socket. No electrical socket is lost.

* The provided power plug may differ from the picture due to different regional power specifications.

Here we take the EU version of this product as an example.

)

Note:

1. If you press the Pair button for more than 10 seconds, the Powerline Adapter will leave the network

which it is associated with and its network name assumes a random value. The Power LED turns off

when it disconnects from the Powerline network.

2. For detailed information about the Pair button, please refer to Charpter 5 Advanced Feature:How to

Use the Pair buttons
