TL-PA511 AV500 Mini Powerline Adapter

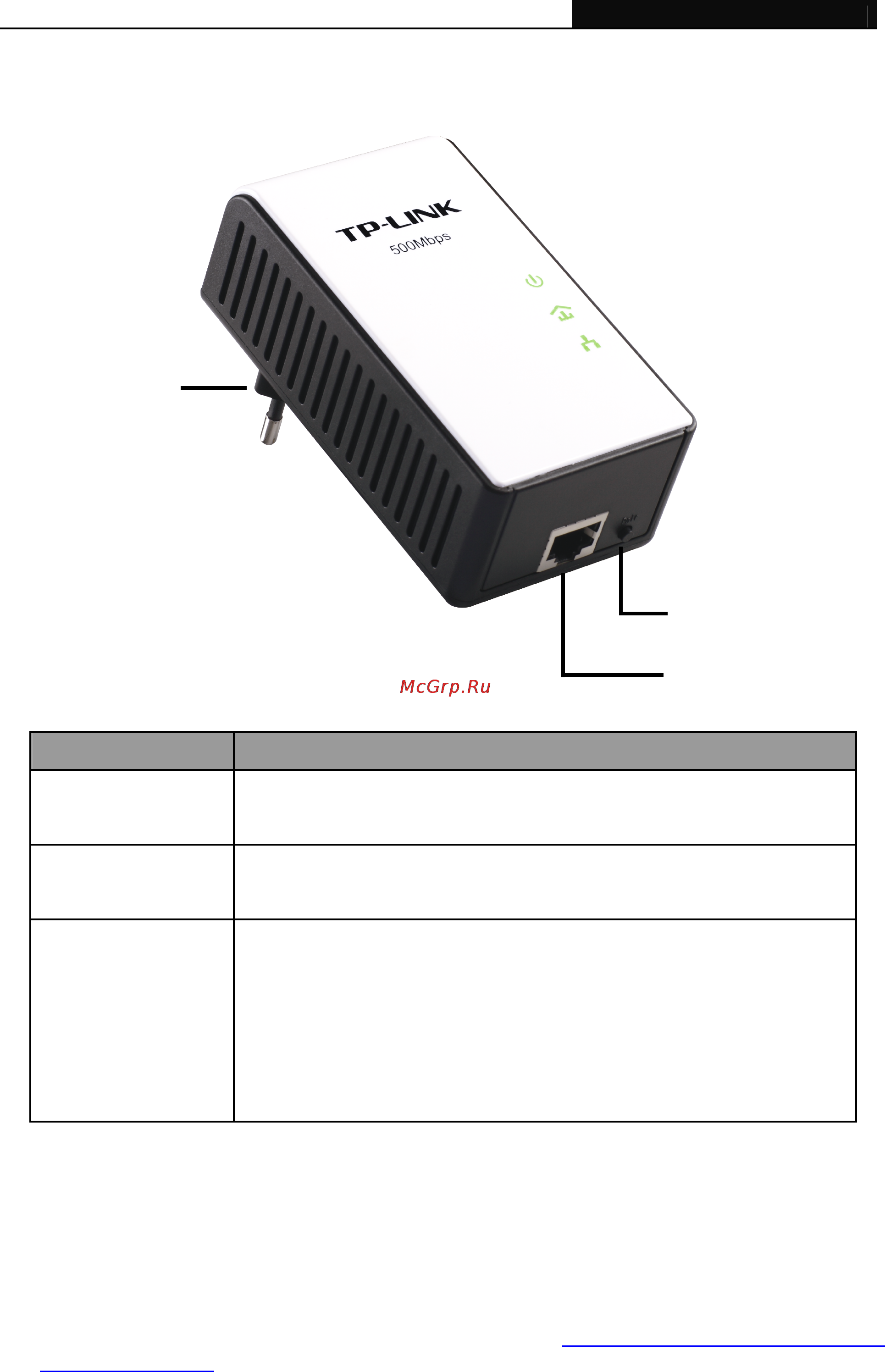

1.2 Physical Interface

There are four physical interfaces on this Mini Powerline Adapter.

Interface Description

Ethernet Port

A 10/100Mbps Ethernet port for connecting the adapter to the PC or

the broadband device with a network cable.

Power Plug*

A Power Plug for connecting the adapter to a 100V ~ 240V

(50~60Hz) AC power socket.

Pair Button

Pair buttons are used to secure a powerline network. To secure

your network, please follow the steps below. Firstly, plug in a new

adapter, and press its pair button for one second; then plug in

another adapter and press its pair button for one second as well.

The two buttons should be pressed within 2 minutes of each other.

After that, wait about 60 seconds so that the two adapters can finish

connecting.

* The provided power plug may differ from the picture due to different regional power specifications. Here

we take the EU version as an example.

)

Note:

1. If you press the pair button for more than 10 seconds, the powerline adapter will leave the network

which it has joined and its new network name assumes a random value. The Power LED turns off

when it disconnects from the powerline network.

2. For detailed information about the pair button, please refer to Charpter 5 Advanced Featu

re: How to

Use the Pair buttons.

Ethernet Port

Pair Button

Power Plug
