TL-PA411 AV500 Mini Powerline Adapter

2.6 Hardware Connection – Internet

This section describes how to connect the Powerline Adapter into your existing ADSL broadband

connection via ADSL Ethernet port. Follow the procedures described below to connect the Powerline

Adapter to your ADSL broadband connection:

1． Connect one end of the provided Ethernet (RJ-45) cable to the Powerline Adapter’s Ethernet port.

2． Connect the other end of the Ethernet (RJ-45) cable to an available Ethernet port of your ADSL

broadband Router.

3． Plug the Powerline Adapter into a wall socket next to the computer.

4． Turn on your computer.

5． Check and confirm that the

Power LED, Ethernet LED, and Powerline LED on the

Powerline Adapter are ON.

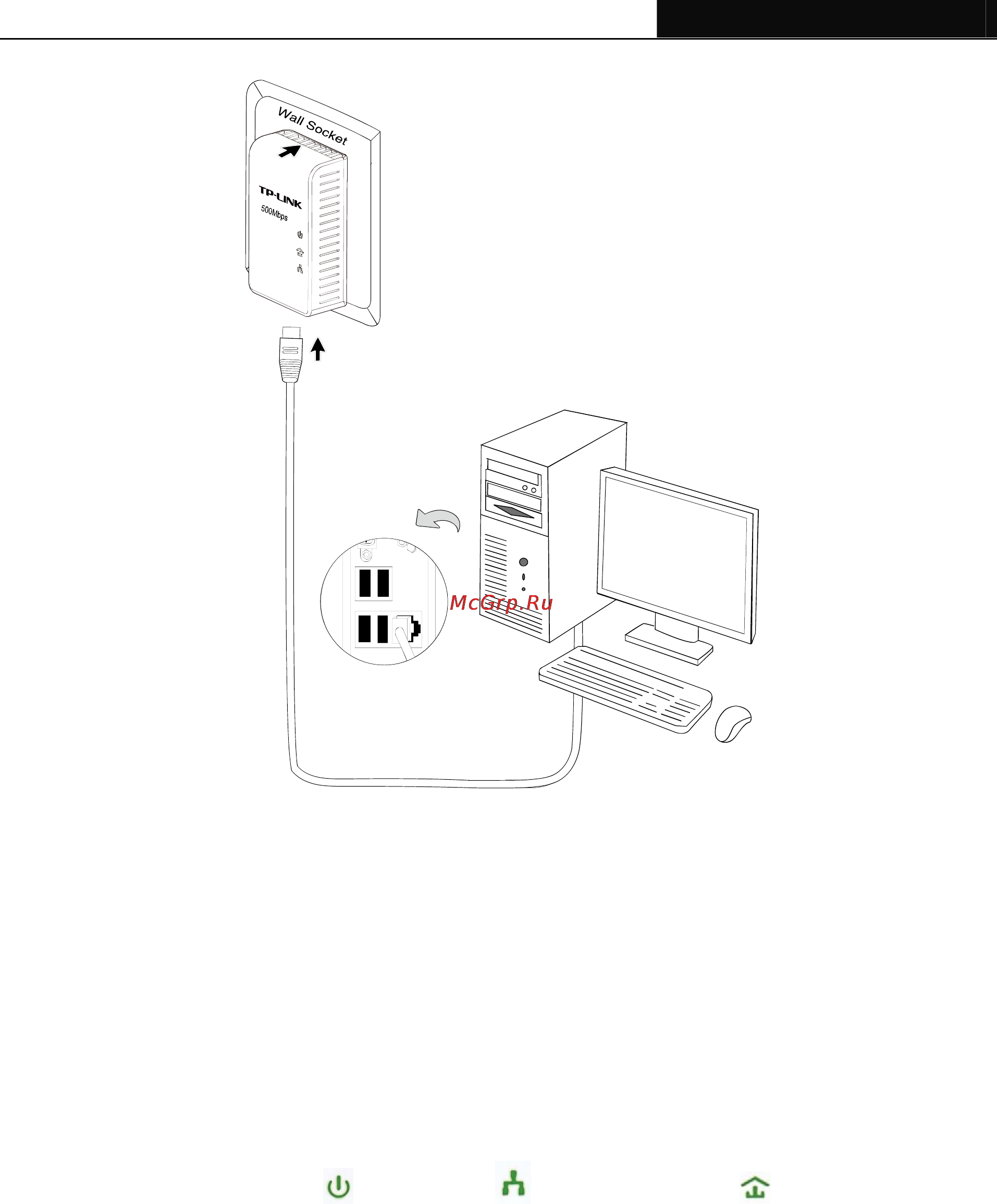

The hardware connection mechanism is shown below:
