TL-PA551 AV500+ Powerline Adapter with AC Pass Through

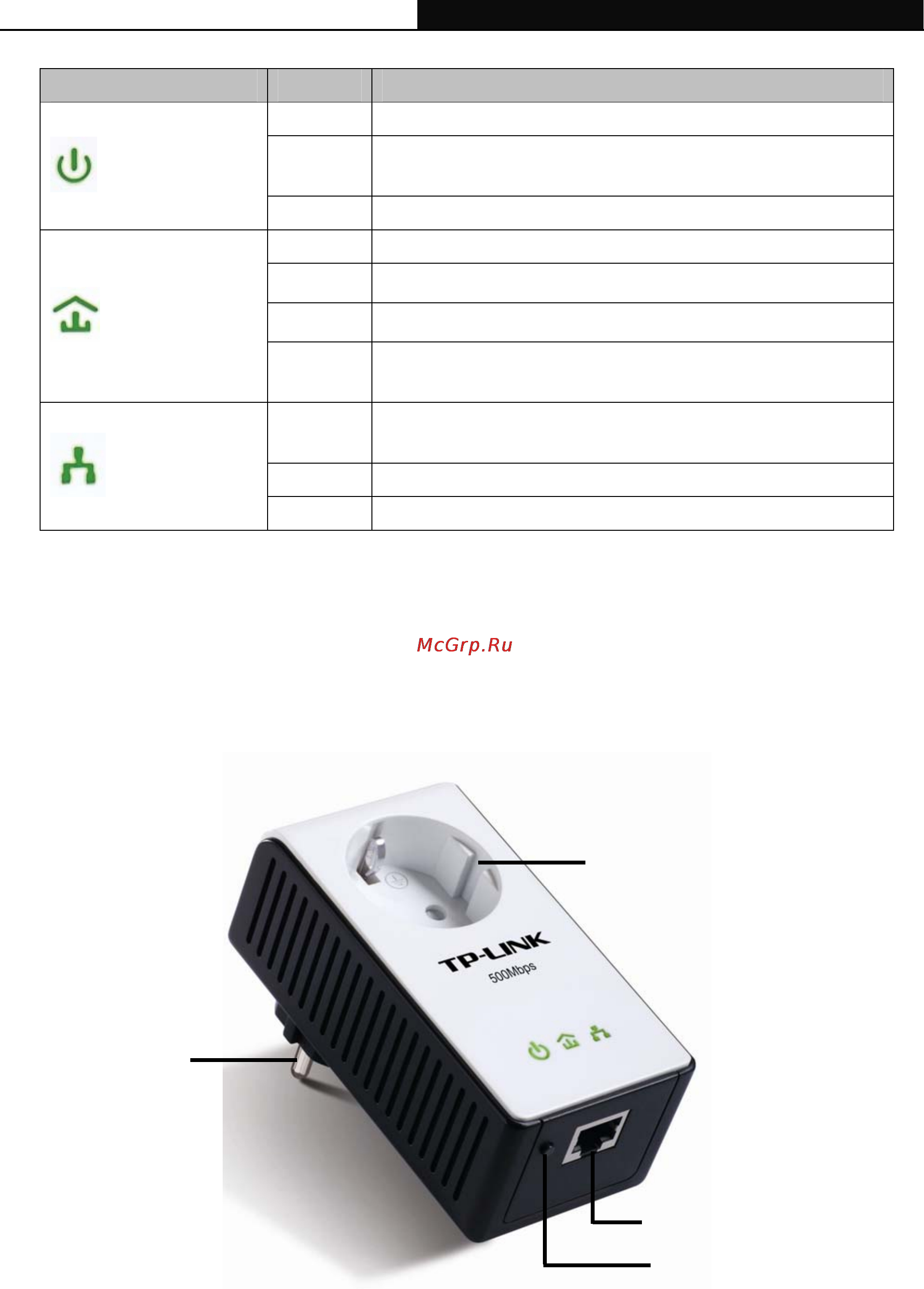

Item Status Indication

On The adapter is on.

Blinking

The adapter is in power-saving mode or in pairing

procedure.

Power LED

Off The adapter is off.

Green Data rate is more than or equal to 80Mbps.

Orange

Data rate is between 48Mbps and 80Mbps.

Red

Data rate is less than or equal to 48Mbps.

Powerline LED

Off

The adapter isn’t connected to any powerline network or

is in power-saving mode.

The Ethernet port is connected, but there is no data

being transferred.

Blinking The Ethernet port is transferring data.

Ethernet LED

Off The Ethernet port isn’t connected.

)

Note:

5 minutes after the device connected to the adapter is turned off, the adapter will automatically switch to

the power-saving Mode.

1.4 Physical Interface

There are four physical interfaces on this Mini Powerline Adapter.

Inte

rated Electrical Socket

Power Plug

Pair Button

Ethernet Port
