3. Connect the LAN OUT port to the Ethernet device with CAT5

UTP cable for data transmitting.

4. Connect the DC OUT port to the power port of the same

Ethernet device with the provided power cable.

)

Note:

The power of Ethernet device is suggested to be under 10W.

Now, the Ethernet device can work normally with data and

power.

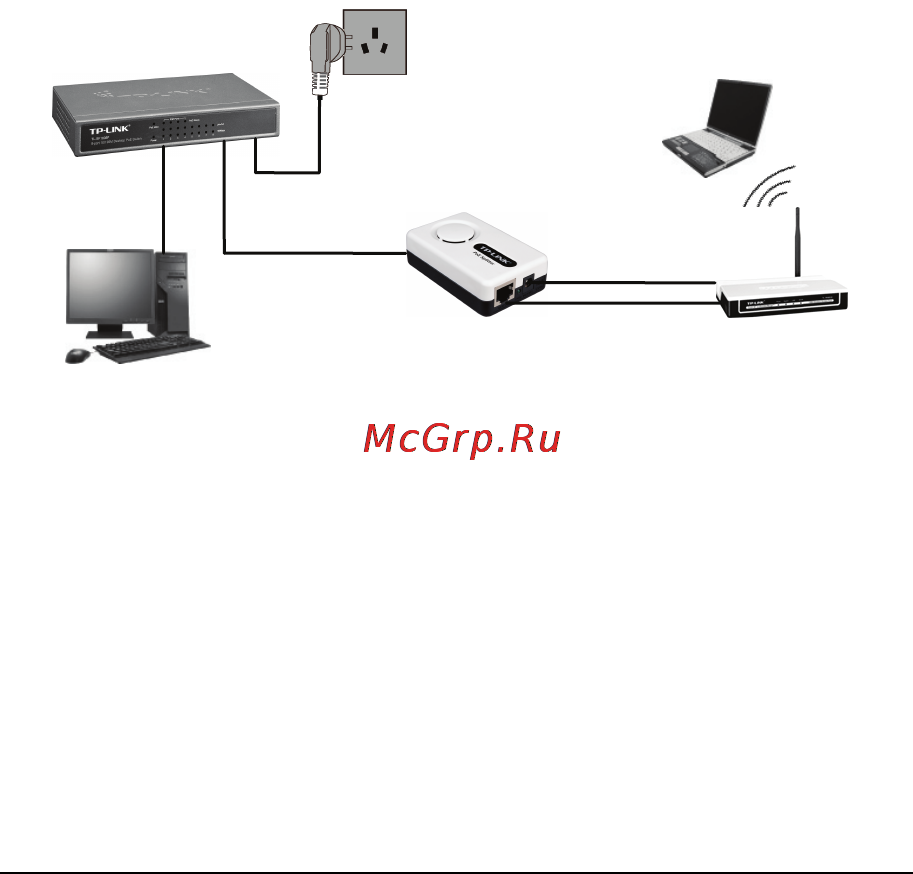

The topology of this network is as follows.

PoE Switch

TL-SF1008P

CAT5 UTP Cable

(Power & Data)

PoE Splitter

TL-POE10R

Wireless AP

TL-WA601G

CAT5 UTP Cable

(Data)

Power Cable

Notebook

With Wireless Adapter
