Chapter 3 Connecting the PoE Splitter

You can use TL-POE10R PoE Splitter with PSE or PoE Injector

to expand your network to where there are no power lines or

outlets, where you wish to fix devices such as APs, IP Cameras

or IP Phones, etc. The following steps will tell you how to

connect the PoE Splitter correctly.

1. Use a CAT5 UTP cable to connect a PoE port of the PSE (ex.

PoE Switch) to the POWER+DATA IN port.

2. Choose the appropriate DC output by the Power-mode

switch.

)

Note:

Please make sure that the output is correct, a different

voltage may destroy the device.

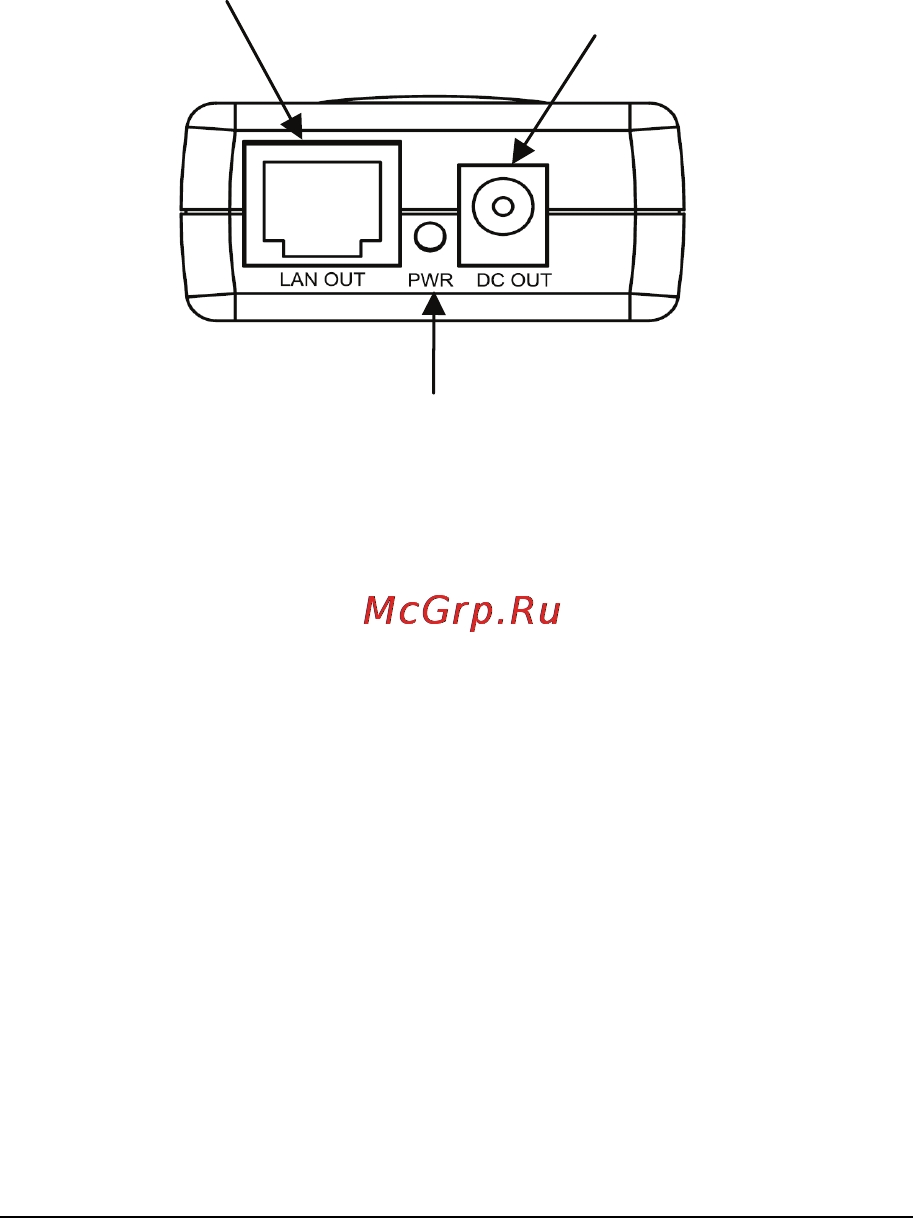

LAN OUT: Connect to

the Ethernet device

with CAT5 UTP cable

to transmit data.

DC OUT: Connect to the

power port of the Ethernet

device with the provided

power cable to supply the

power of 5V, 9V or 12V DC.

PWR: Power LED, a steady green light indicates

that the PoE Injector can supply power.
