Tp-Link TD-8610 [15/18] Software dial

TD-8610 ADSL2+ MODEM

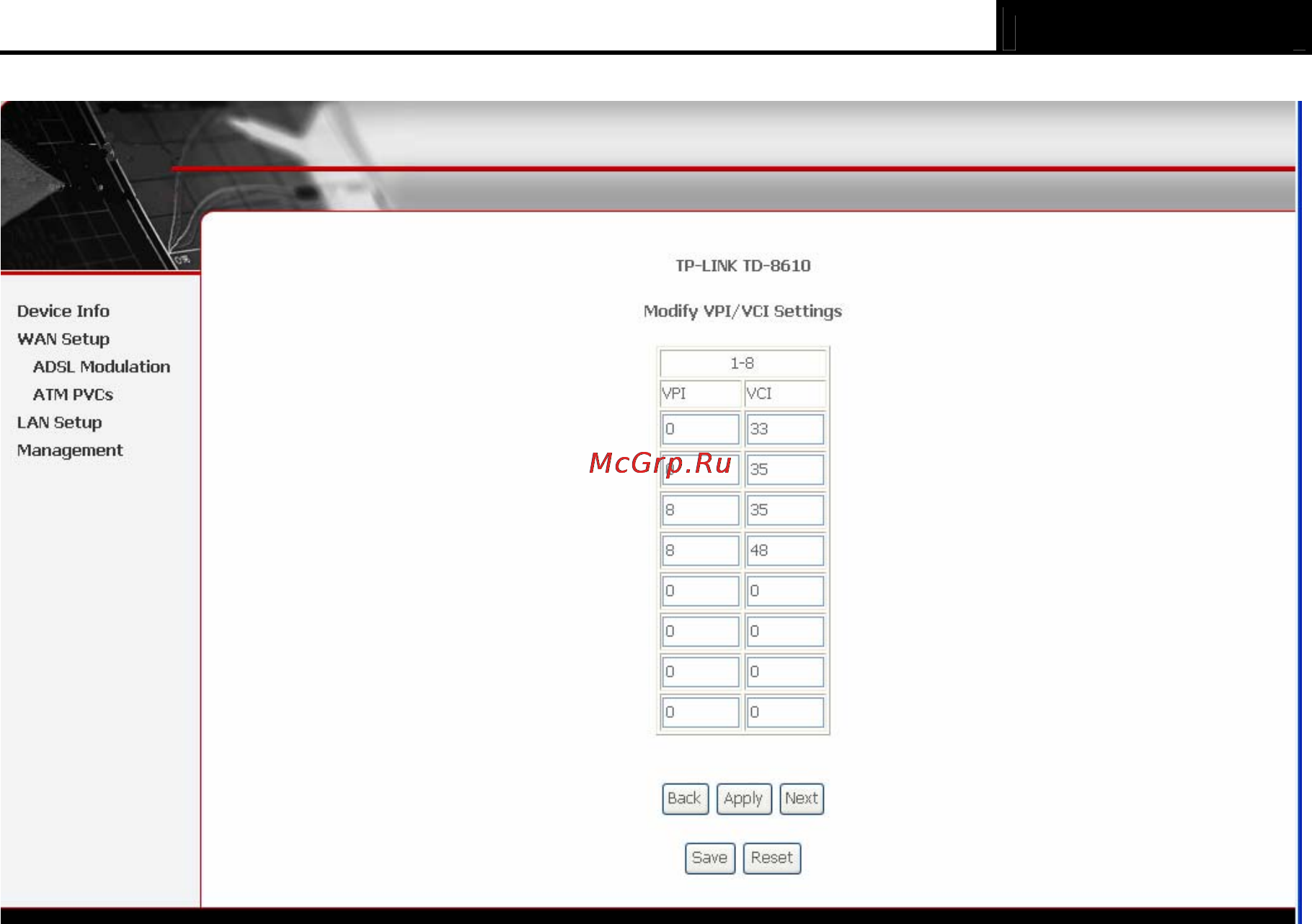

Figure 3-8

3.4 Software Dial

TD-8610 works in bridged (RFC 1483 Bridged) mode to connect to the Internet. You need to

install dial software on your PC. There is some software working on WINDOWS in market,

example for EnterNet3000, RASPPPoE and WinPeET.

How do I set up the connection in the windows XP?

¾ The users of Windows XP can click the “StartÆAll ProgramsÆAccessoriesÆ

CommunicationsÆNew connection wizard”, and then click Next to enter the

configuration page.

¾ Select the “connect to the Internet”, and then click the Next button to enter the next page.

Select the “set up my connection manually”, and click Next to enter the next page.

¾ Select the “connect using a broadband connection that requires user name and

password”. Click Next to type the name of your ISP in the current page, and then click

Next.

¾ Enter an ISP account name and password, and click Next. If you have forgotten an

existing account name or password, please connect with your ISP.

¾ To create the connection and close this wizard, click Finish to add a shortcut to this

connection to your desktop.
