TD-8811 ADSL2+ Modem Router User Guide

 PPP Password: Enter your password for your PPPoE connection.

 PPPoE Service Name: Enter a name for the PPPoE connection for recognition.

 Authentication Method: Choose a method of authentication, AUTO, PAP, CHAP, or

MSCHAP.

 MTU: The default MTU value is 1480 Bytes. It is not recommended that you change the

default value unless required by your ISP. The value should be between 512 and 1500.

 Dial on demand: If you check this box, the Internet connection can be terminated

automatically after a specified inactivity period (Inactivity Timeout) and be re-established

when you attempt to access the Internet again. The default value of Inactivity Timeout is

15. The value should be between 1 and 4320.

 PPP IP extension: If this box is checked, the IP address obtained by the Router will be

assigned to the computer, and the NAT and Firewall will be disabled.

 Use Static IP Address: Check this box to use the static IP address to dial. The default

value is disabled.

 Enable PPP Debug Mode: Check this box to enable the debug mode. The default value is

disabled.

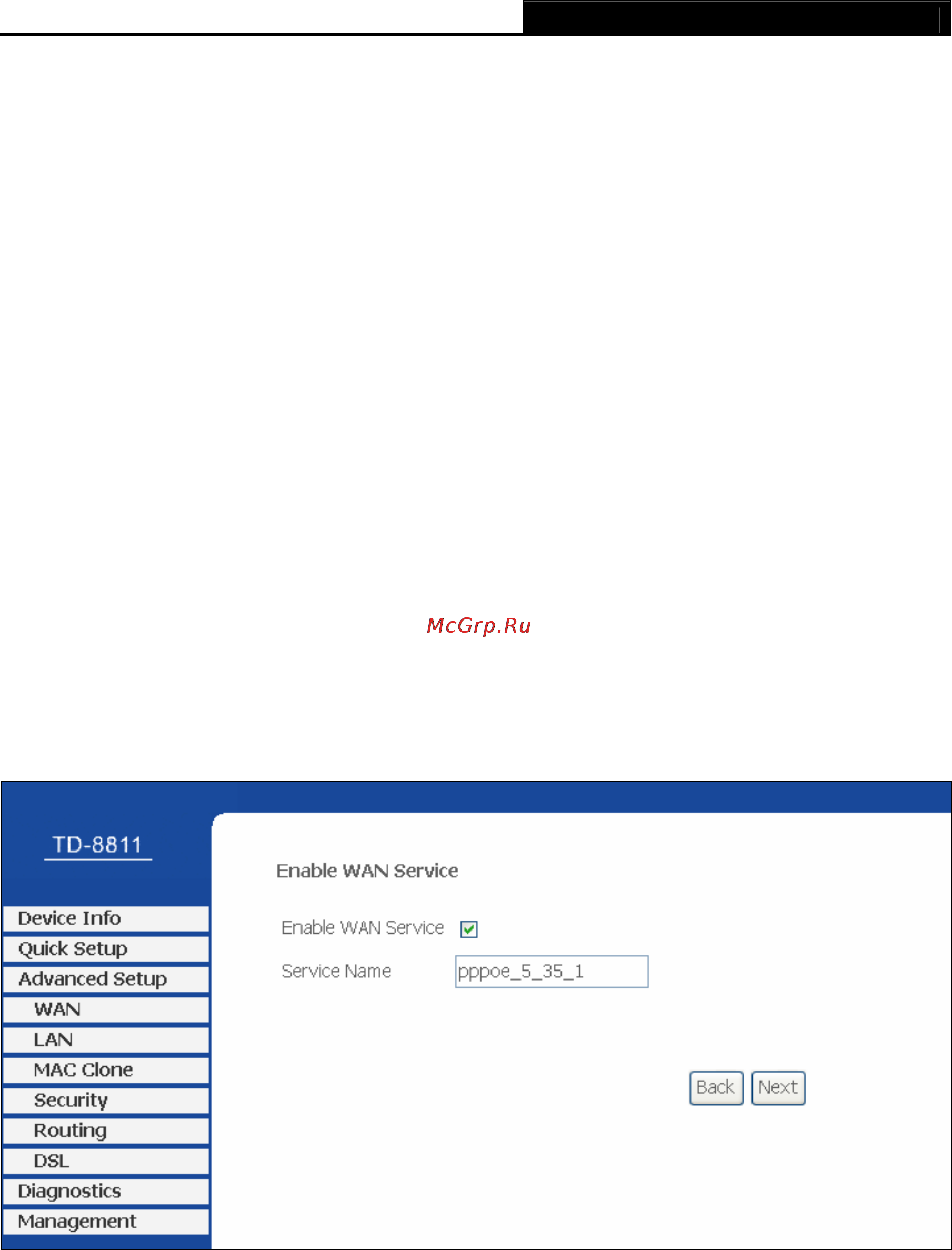

Click Next button in Figure 4-9, and then you will Figure 4-10. Check or uncheck the Enabl

WAN Service box according to your needs.

Figure 4-10

Click the Next button to enter the next step as shown in Figure 4-11. Click Save t

o complete the

configuration.
