Tp-Link TL-PA201 [24/31] Add device

TL-PA201 200Mbps Powerline Ethernet Adapter

4.1.3 Add Device

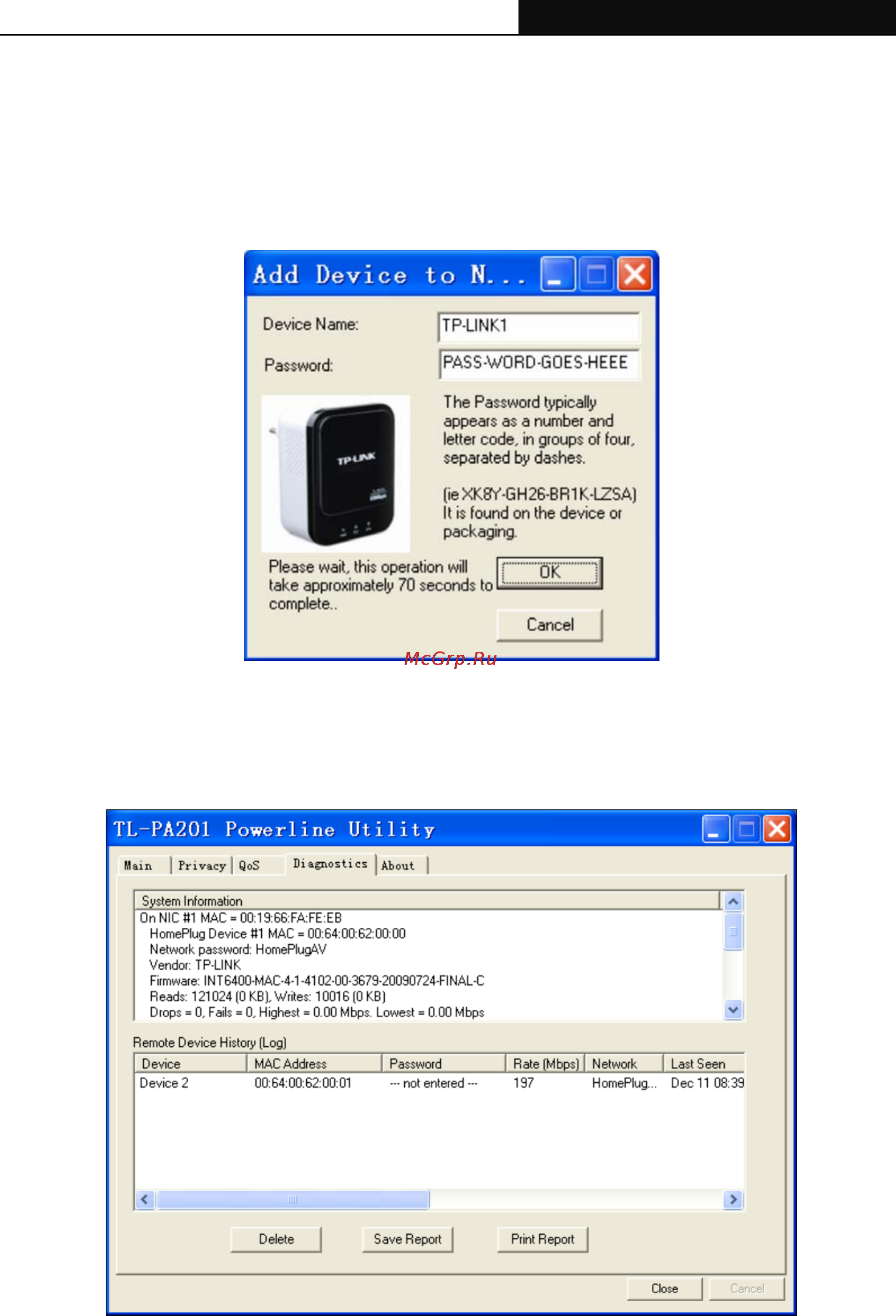

The following dialog box pop-up when clicking the “Add” button under Main configuration homepage.

The dialog box allows you to enter both the selected device’s name and password. Noted that the

Powerline Ethernet Adapter must be present on the power grid in order to activate the set password and

added to the local network.

Enter your Device Name and Password (Take note to the password format) and click “OK” after setup.

) Note:

After clicking “OK”, please wait for about 70 seconds to complete this operation.

The following screen display after the naming and password setting process, which is also the

Diagnostics configuration homepage.
