TL-PA201 200Mbps Powerline Ethernet Adapter

)

Note:

1. When PLC is flashing, different colours represent different data transmitting performance.

Green LED：Power Line speed>80 Mbps

Amber LED：Power Line speed<80 Mbps and >30Mbps

Red LED：Power Line speed<30 Mbps

2. 5 minutes later since the device connected to the Homeplug is powered off, the Homeplug will

switch to Power-saving Mode automatically.

2.3 Physical Interface

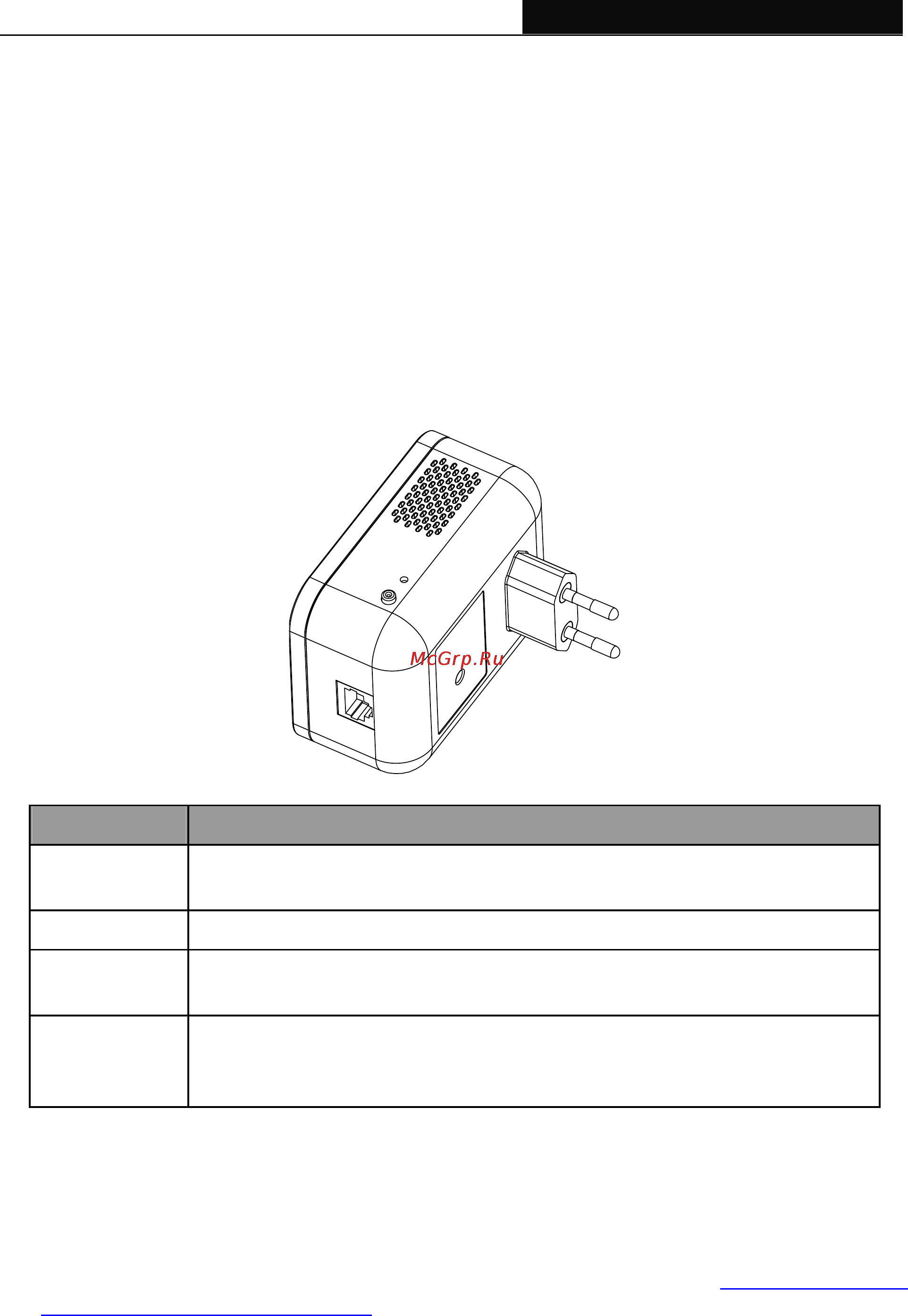

There are four physical items on this Powerline Ethernet Adapter.

Item Description

Ethernet

One 10/100Mbps Ethernet port connected to PC LAN card or broadband

device

Power Plug Power Plug connected to any 100V ~ 240V AC power socket

Reset

Use a pin to press and hold this Reset button for 3 to 10 seconds then the

device will restore to factory defaults

Pair

Press and hold the Pair button for about 3 to 8 seconds, then release it. The

Power LED will begin flashing. Perform the same step to the Rest of the

Homeplug devices in 2 minutes

)

Note:

1. If you press the Pair button for more than 10 seconds, The PLC will leave the network it is

associated with and its network name assumes a random value. The Power LED turns off when it

disconnects from the Powerline network.

2. For detail information about the Reset button and Pair button, please refer to Charpter 5 Advanced

Feature:How to Use the Push buttons
