Tp-Link TL-SG2224WEB [65/75] Priority mode

Web Smart Gigabit Switch Family User's Guide

TL-SG2216WEB/TL-SG2224WEB

5.3.6.1 Priority Mode

This page is showed as below:

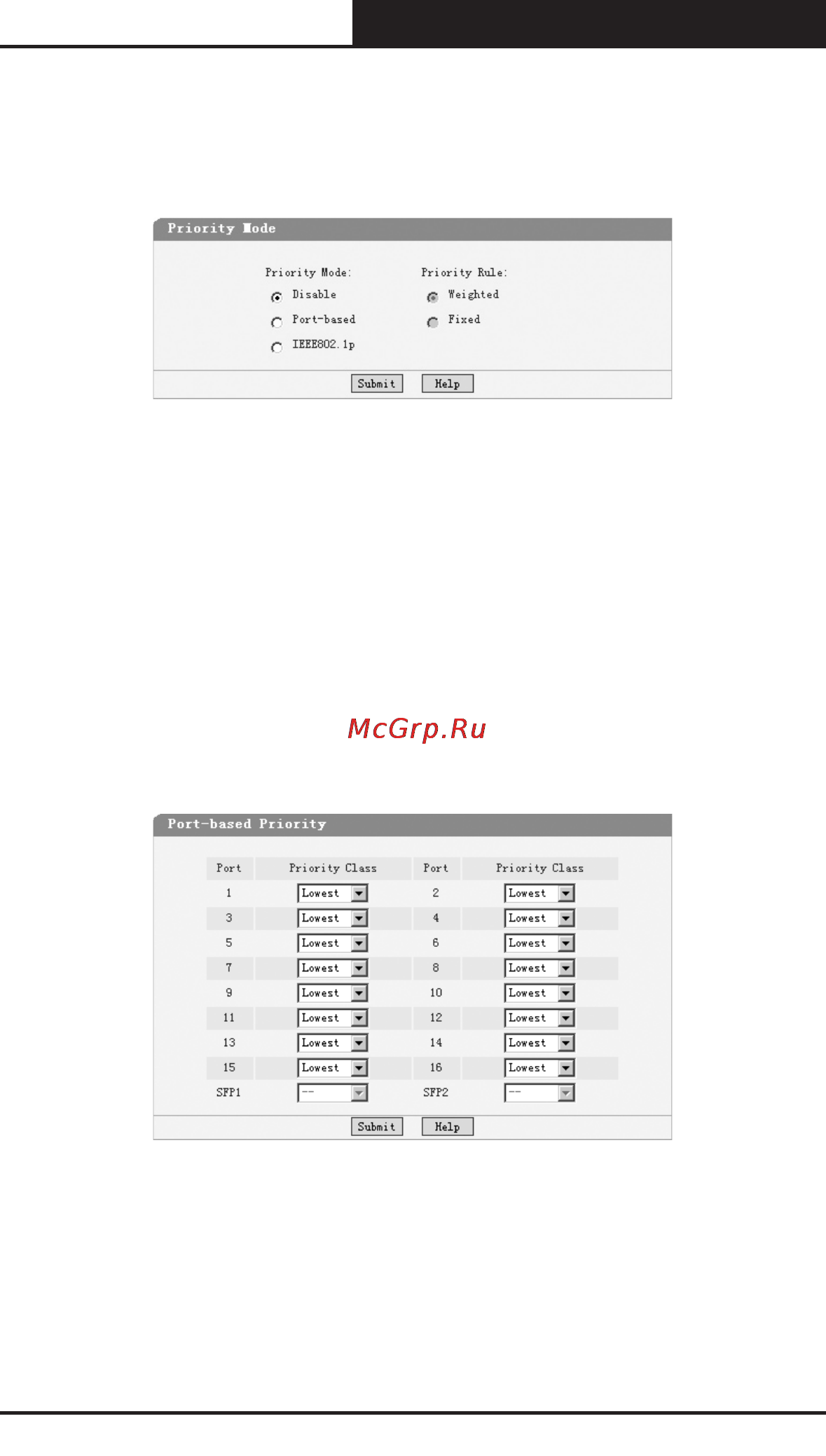

Figure 5-40 Priority Mode

Priority Mode: Contains “Disable”, “Port-Based” and “IEEE802.1p”.

Priority Rule: Contains “Weighted” and “Fixed”. If the priority mode is set

to “Disable”, the priority rule cannot be congured.

5.3.6.2 Port-Based Priority

This page is revealed when the “Port-Based” mode is congured. As shown

below:

Figure 5-41 Port-Based priority

Port: Indicates the switch port number.

Priority Class: In port-based priority mode, the switch ports are classied

into four priority classes: lowest, lower, higher and highest. All the packets


