54Mbps Wireless USB Adapter User GuideTL-WN321G

- 4 -

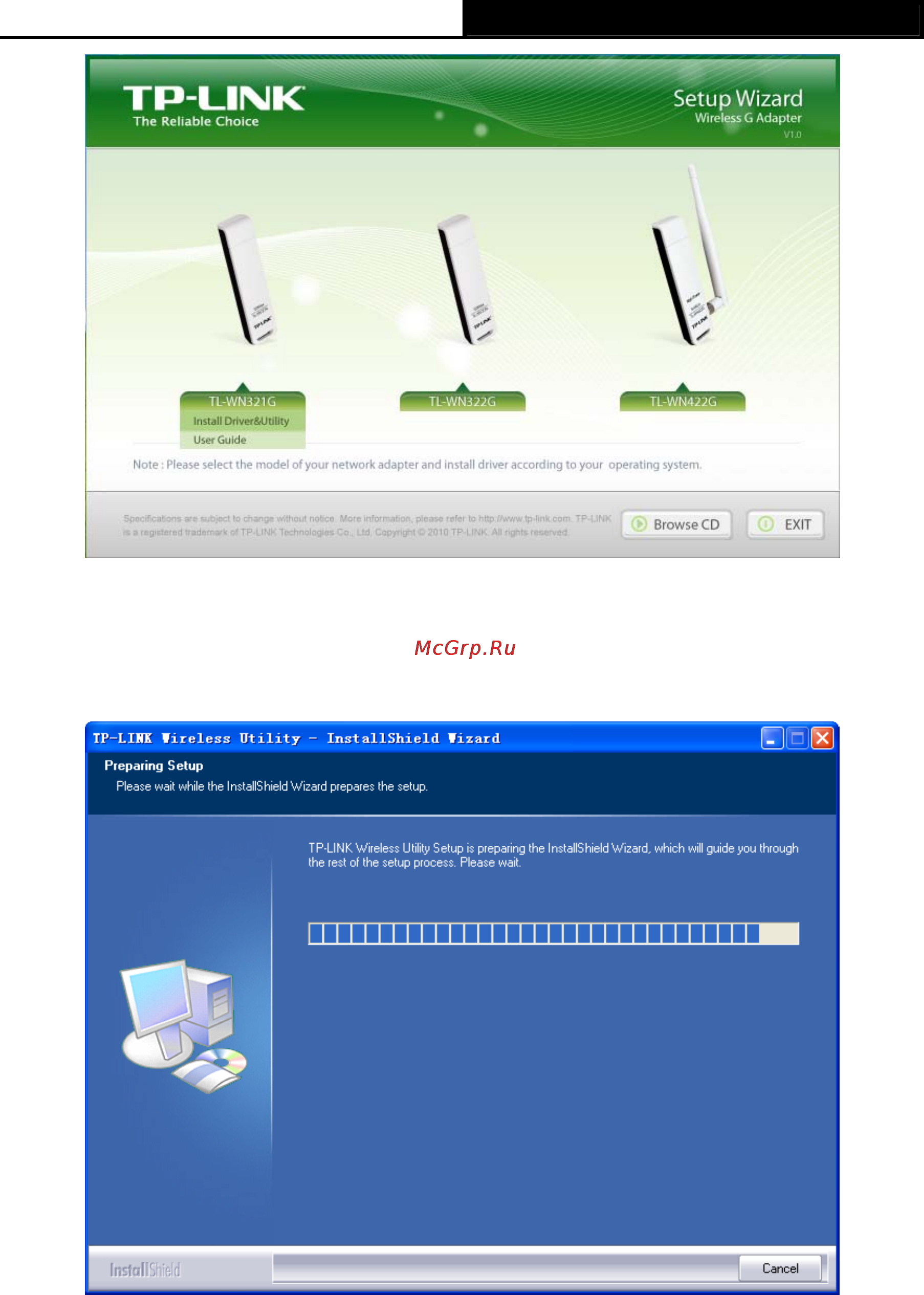

Figure 2-1

2. Click TL-WN321G to display the drop-down menu. Click User Guide for more detailed

configuration. Click Browse CD to read the files on the CD. Click Exit to quit the setup wizard.

Select Install Driver&Utility and then the following screen will pop up.

Figure 2-2 Preparing Setup

3. Then you’ll see the screen as follow, you can choose what to be installed.
