¾ Show Authentication Status Dialog- Click the checkbox to show the Authentication Status

Dialog.

¾ Apply - Click the Apply button to save the current setting.

3.1.4 Statistics

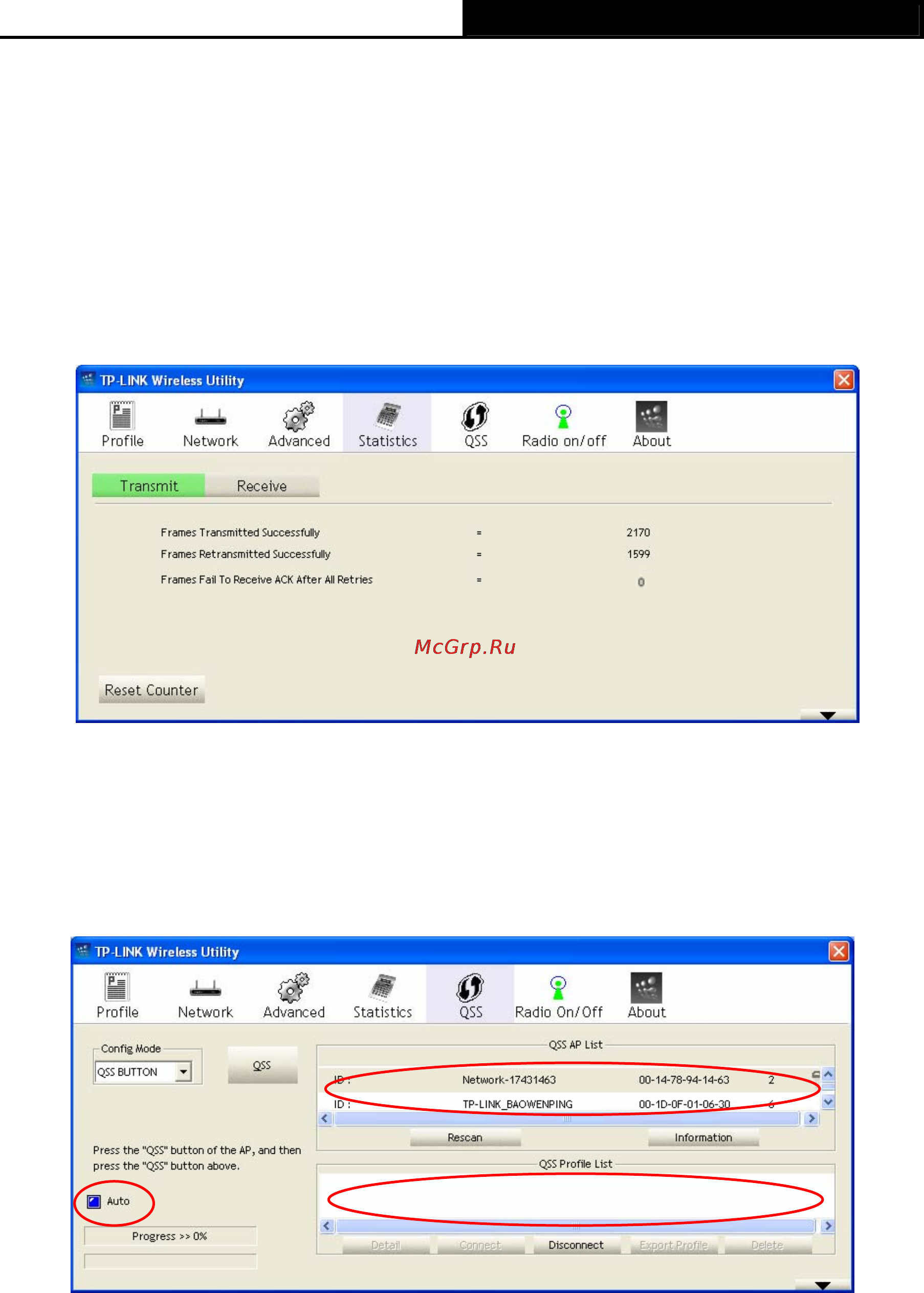

Click the Statistics tab of the Utility and you will see the following screen displaying the receiving

and transmitting statistical information. Click the Reset Counter button to reset the count of the

statistics information.

Figure 3-7 Statistics tab

3.1.5 QSS

Click the QSS tab of the Utility and you can configure the QSS function to joint an existing network

quickly in the following screen.

Figure 3-8 QSS tab

¾ The QSS connection will be automatically displayed on the QSS Profile List. Pitch on the

Profile and click Export Profile to add a Profile to the Profile List (Section 3.1.1).

¾ The Auto function is default to enable that the adapter will automatically try to build the

connection with the Access Point devices shown in the QSS AP List one by one.
