TL-WN811N 300Mbps Wireless N CardBus Adapter

)

Note:

The first profile in the Auto Selected Profiles box has highest priority, while the last profile has the

lowest priority.

6. Click OK.

7. Check the Auto Select Profiles checkbox on the Profile Management tab (shown in

Figure 3-2).

)

Note:

When auto profile selection is enabled by checking Auto Select Profiles on the Profile

Management tab, the client adapter will scan for an available network. The profile with the

highest priority and the same SSID as one of the found networks will be used to connect to the

network. If the connection fails, the client adapter will try the next highest priority profile that

matches the SSID until an available network is found.

3.3 Diagnostics

The Diagnostics tab of the TP-LINK Wireless Client Utility (TWCU) provides buttons used to

retrieve receiving and transmitting statistics. The Diagnostics tab does not require any

configuration.

The Diagnostics tab lists the following receiving and transmitting diagnostics for frames

received or transmitted by the wireless network adapter:

¾ Multicast frames transmitted and received

¾ Broadcast frames transmitted and received

¾ Unicast frames transmitted and received

¾ Total bytes transmitted and received

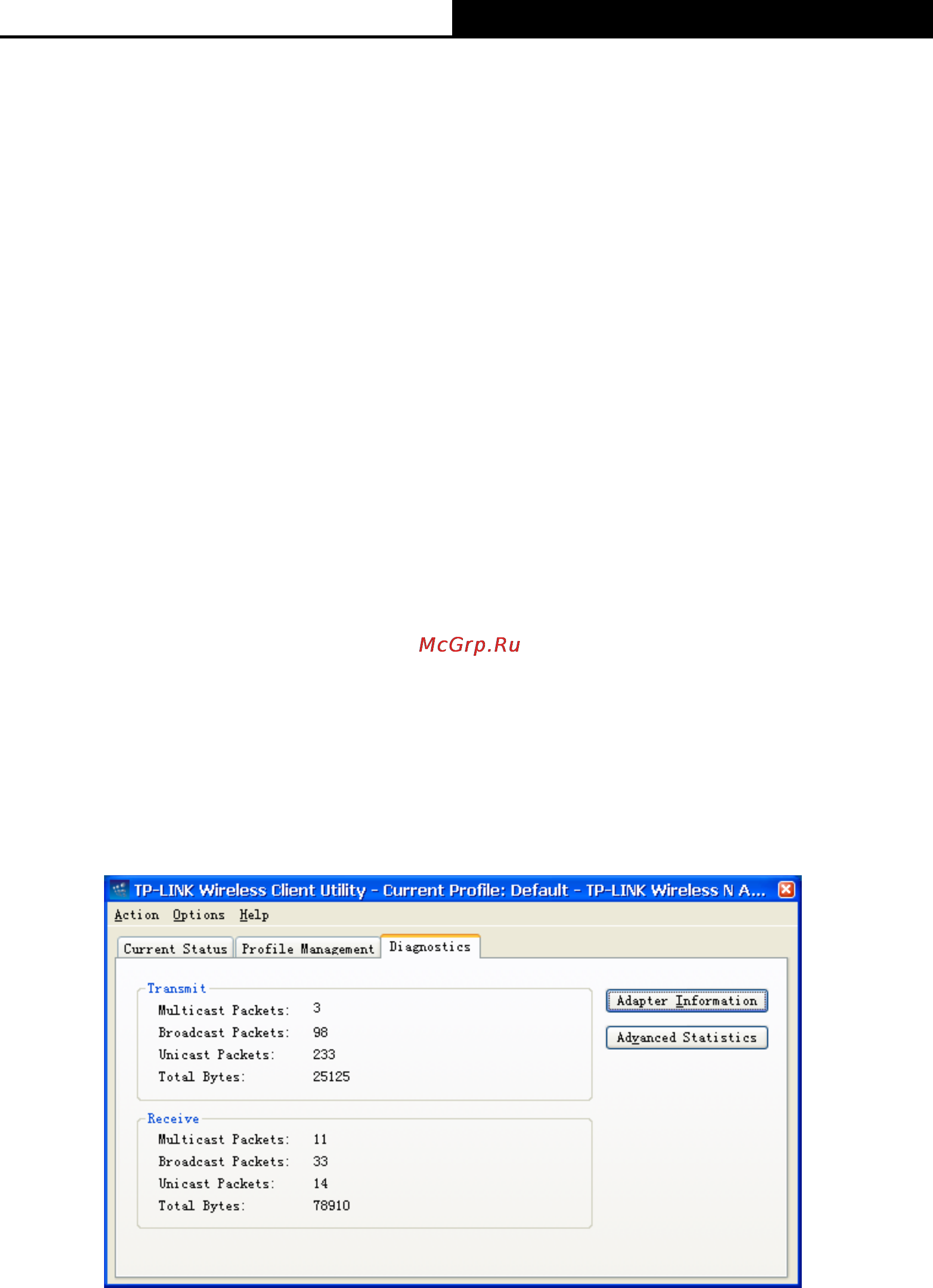

Figure 3-12

3.3.1 Check Driver Information

Click the Adapter Information button in the screen above, you will see the adapter information,

including general information about the wireless network adapter and the Network Driver

Interface Specification (NDIS) driver. Access the adapter information from the Diagnostics tab.
