11

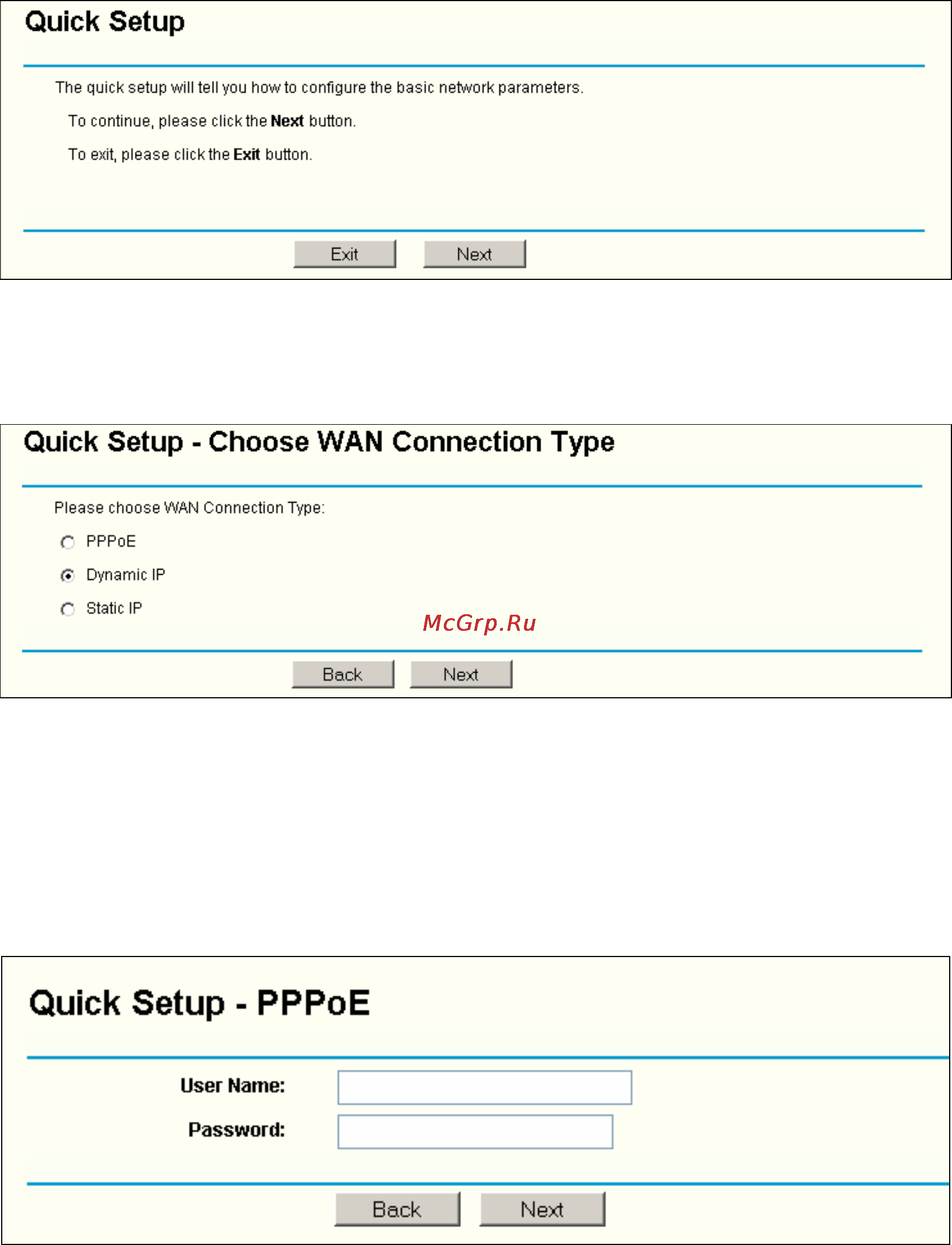

Please click the Quick Setup link on the left of the main menu and the Quick Setup screen will
appear.
Figure 3-5 Quick Setup
Click Next, and then Choose WAN Connection Type page will appear, shown in Figure 3-6.
Figure 3-6 Choose WAN Connection Type
The router supports three popular ways to connect to Internet. Please select one compatible with
your ISP. Click Next to enter the necessary network parameters.
If you choose "PPPoE", you will see this page shown in Figure 3-7:
Figure 3-7 Quick Setup - PPPoE
¾ Account Name and Password - Enter the Account Name and Password provided by your
ISP. These fields are case sensitive. If you have difficulty with this process, please contact
your ISP.
If you choose "Dynamic IP", the router will automatically receive the IP parameters from your ISP
