10
If the router's IP address is 192.168.1.1, your PC's IP address must be within the range of
192.168.1.2 ~ 192.168.1.254, the gateway must be 192.168.1.1.
3.2 Quick Installation Guide
With a Web-based (Internet Explorer or Netscape
®
Navigator) utility, it is easy to configure and
manage the TL-WR542G 54Mbps Wireless Router. The Web-based utility can be used on any
Windows, Macintosh or UNIX OS with a Web browser.

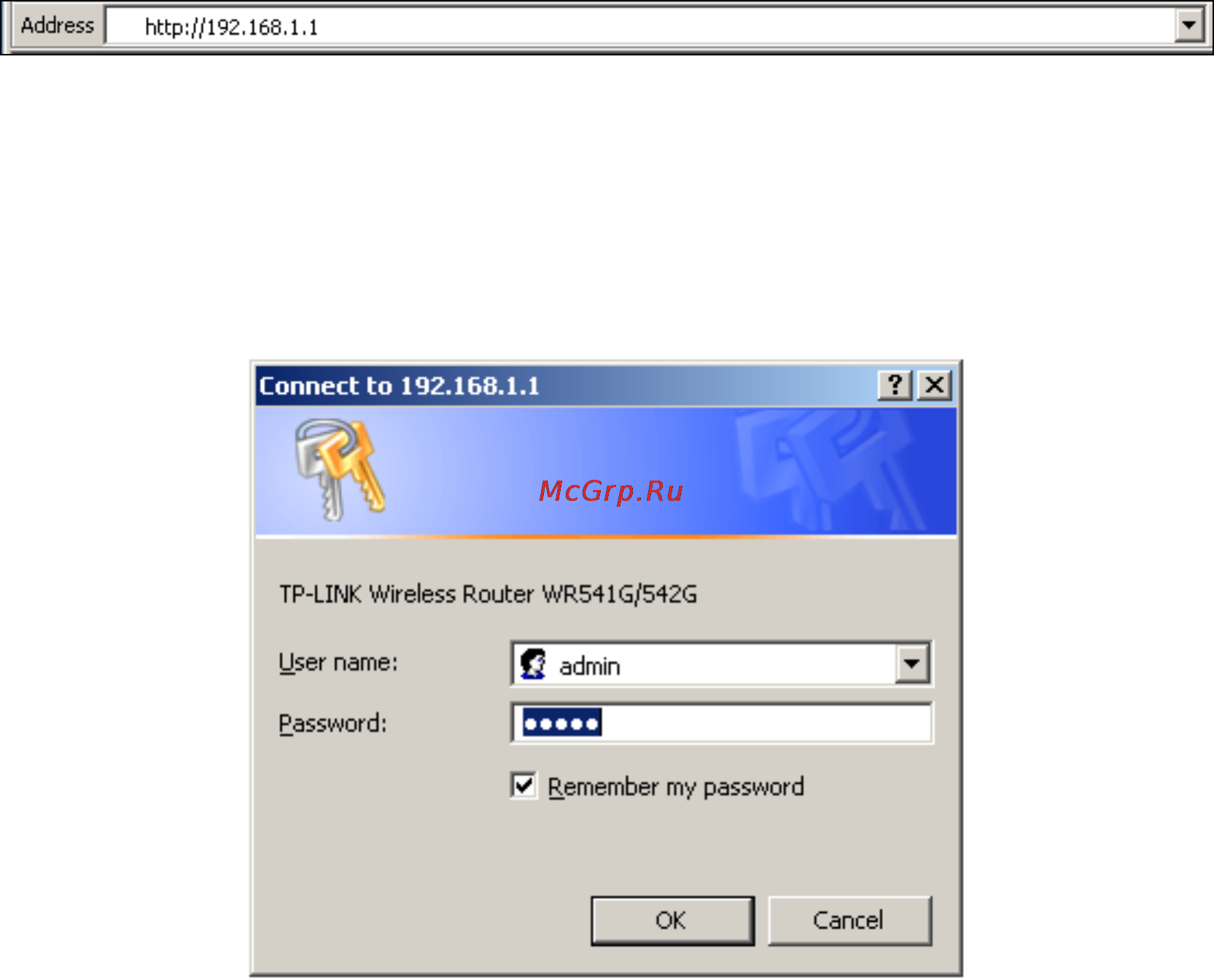

Connect to the router by typing http://192.168.1.1 in the address field of Web browser.
Figure 3-3 Login the router
After a moment, a login window will appear similar to that shown in Figure 3-4. Enter admin for
the User Name and Password, both i
n lower case letters. Then click the OK button or press the
Enter key.
Figure 3-4 Login Windows
)
Note:
If the above screen does not pop-up, it means that your Web-browser has been set to a proxy. Go
to Tools menu>Internet Options>Connections>LAN Settings, in the screen that appears, cancel
the Using Proxy checkbox, and click OK to finish it.
If the User Name and Password are correct, you can configure the router using the Web browser.
Please click the Quick Setup link on the left of the main menu and the Quick Setup screen will
appear.
