Model Selector
This is where you pick the model you want to use;
it comes up preset to a great sound, ready to use.
Turn the other knobs to adjust the sound; their
functions are described in the model details section.
DISTORTION MODELER – FRONT PANEL
Volume
This knob is always used to set the output volume
of the effect Turn counterclockwise for less output.
Turn clockwise for more processed signal.
Stomp Switches
Step on one of these switches to choose one of the four programmable memories (Delay Modeler has 3
memories plus Tap Tempo). The chosen memory’s light is lit, and you hear the effect processing. Step on
the switch again to turn the memory off and bypass the effect. To store a sound in memory, step on one of
the switches to turn its light on, turn the knobs to the sound you like, and then press and hold any foot
switch for 3 seconds to store the knob settings into that memory location.
DRIVE VOLUMEBASS MID TREBLE
sub
/
comp
BUZZ SAW
COLOR DRIVE
HEAVY DISTORTION
CLASSIC DISTORTION
OVERDRIVE
SCREAMER
TUBE DRIVE
BOOST/COMP
JUMBO FUZZ
FUZZ PI
JET FUZZ
LINE 6 DRIVE
LINE 6 DISTORTION
SUB OCTAVE FUZZ
OCTAVE FUZZ
FACIAL FUZZ
PROGRAMMABLE OVERDRIVE & DISTORTION
DM4 Distortion Modeler
jet
fdbk
jet
rate
gate
In/Out
Just follow the labels and plug in the inputs and outputs. If you’re running with batteries, you can unplug the
left input to conserve power when you’re not using the pedal. (Please note: the DM4 Distortion Modeler is
Mono In and Mono Out.)
MONO L
-OUTPUT- R EXPRESSION PEDAL
Power Requirements:
9VAC 1200 mA minimum
Connect Optional
Line 6 Power Supply Here
THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS B DIGITAL DEVICE PURSUANT TO PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO
CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRABLE OPERATION.
MONO L
- INPUT - R
Serial Number
N222
Power Supply
Your Stomp Box Modeler comes with a set of four C size
batteries. You can also purchase an optional Line 6 AC
power supply to run your pedal.

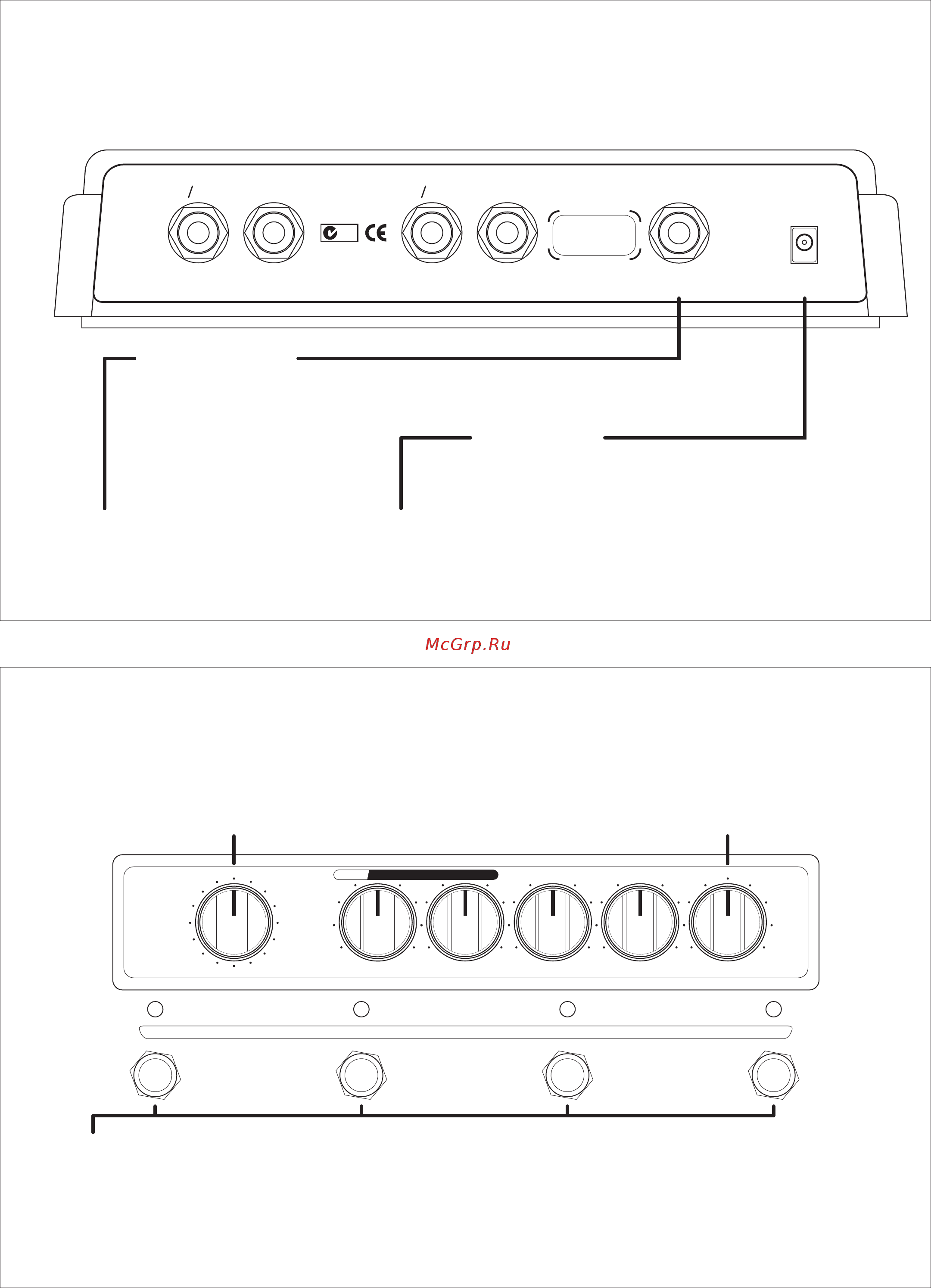

REAR PANEL – HOOKUP INSTRUCTIONS
Expression Pedal
See the following section for complete details on the use of the optional Line 6
expression pedal, which gives you the ability to smoothly blend between effect settings.
Getting an Expression Pedal or Power Supply
Customers in the USA and Canada can order the expression pedal and power supply from their Line 6 dealer,
directly from www.line6.com, or by calling Line 6 Sales at (805) 379-8900. Outside the USA and Canada, please
contact your Line 6 dealer or distributor (see list on the Line 6 web site and at the back of this handbook).
