10/100 Fast Ethernet Switch User’s Guide

2 I

DENTIFYING

XTERNAL

OMPONENTS

Front Panel

The front panel of the Switch consists of 16 (10/100 Mbps MDI-X)

ports in the DES-1016R or 24 (10/100 Mbps MDI-X) ports in the DES-

1024R, one up-Link (MDI-II) port and LED indicators. A description

of the ports appears in Chapter 1 of this User’s Guide.

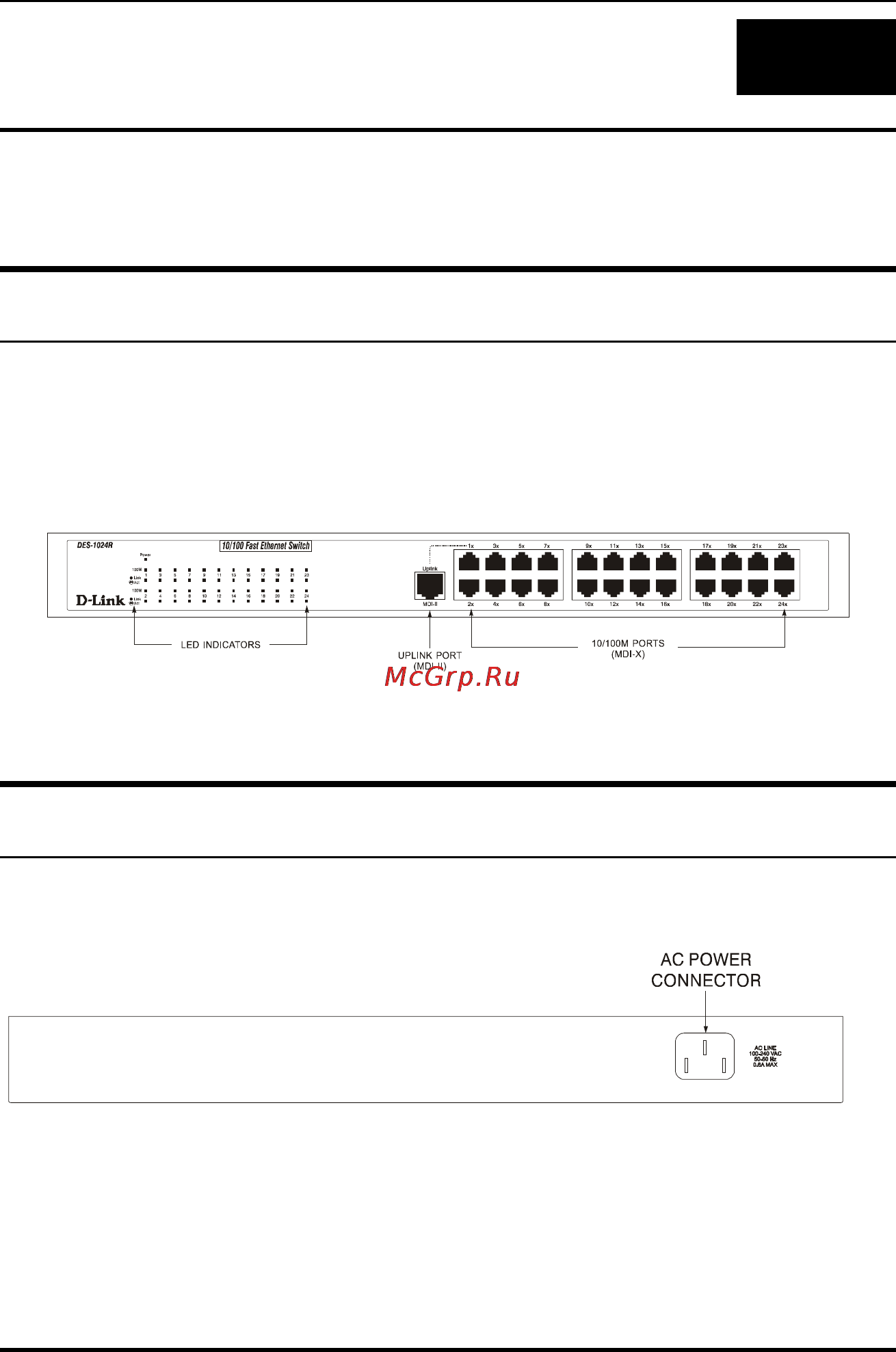

Figure 3.1 Front panel view of the DES-1024R Switch

Rear Panel

The rear panel of the Switch consists of an AC power connector.

Figure 3.2 Rear panel view of the DES-1024R switch

♦ AC Power Connector This is a three-pronged connector that

supports the power cord. Plug in the female connector of the

provided power cord into this connector, and the male into a
