TL-WR1043ND Wireless N Gigabit Router
-20-

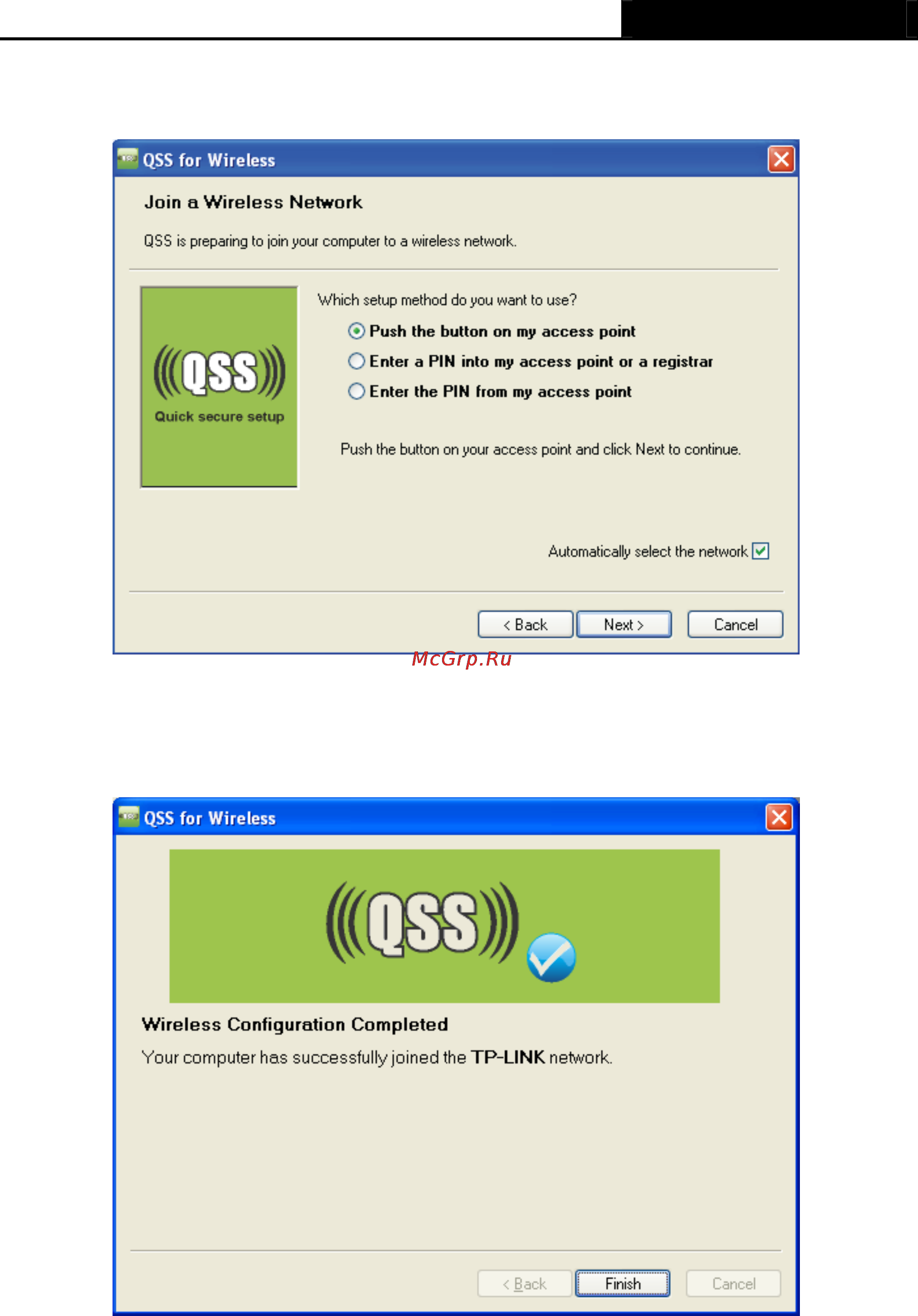

Step 2. For the configuration of the wireless adapter, please choose Push the button on my
access point in the configuration utility of the QSS as below, and click Next.
The QSS Configuration Screen of Wireless Adapter
Step 3. Wait for a while until the next screen appears. Click Finish to complete the QSS
configuration.
The QSS Configuration Screen of Wireless Adapter
