10/100 Auto Negotiation Switch User’s Guide
Managing the DES-3224
32
When the transfer is complete you will see the panel in Figure 18. The DES-3224 will reset
itself automatically and you will have to log in again.

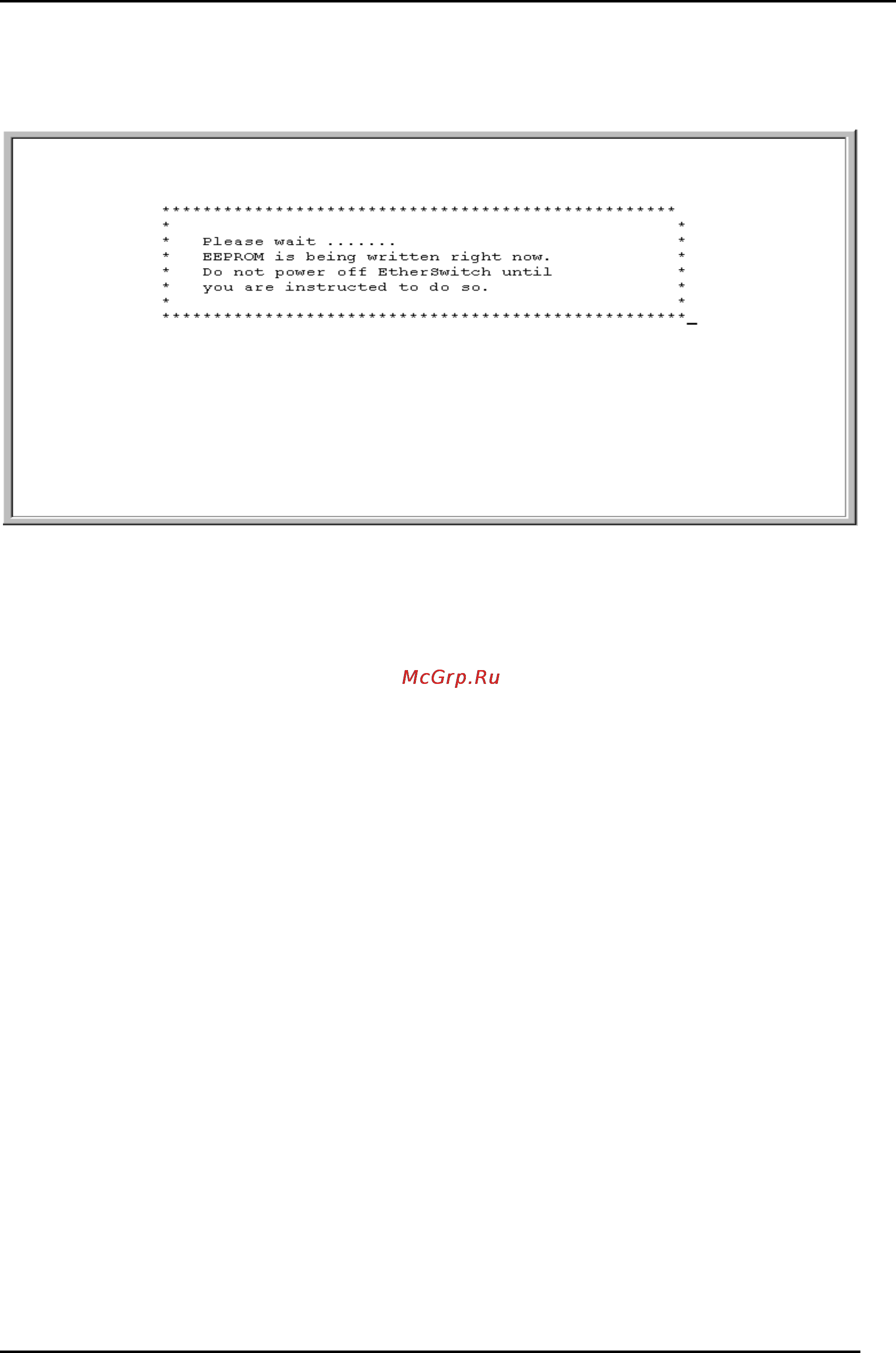

Figure 18: Message Displayed as EEPROM is Being Written
