TL-WR940N Wireless N Router

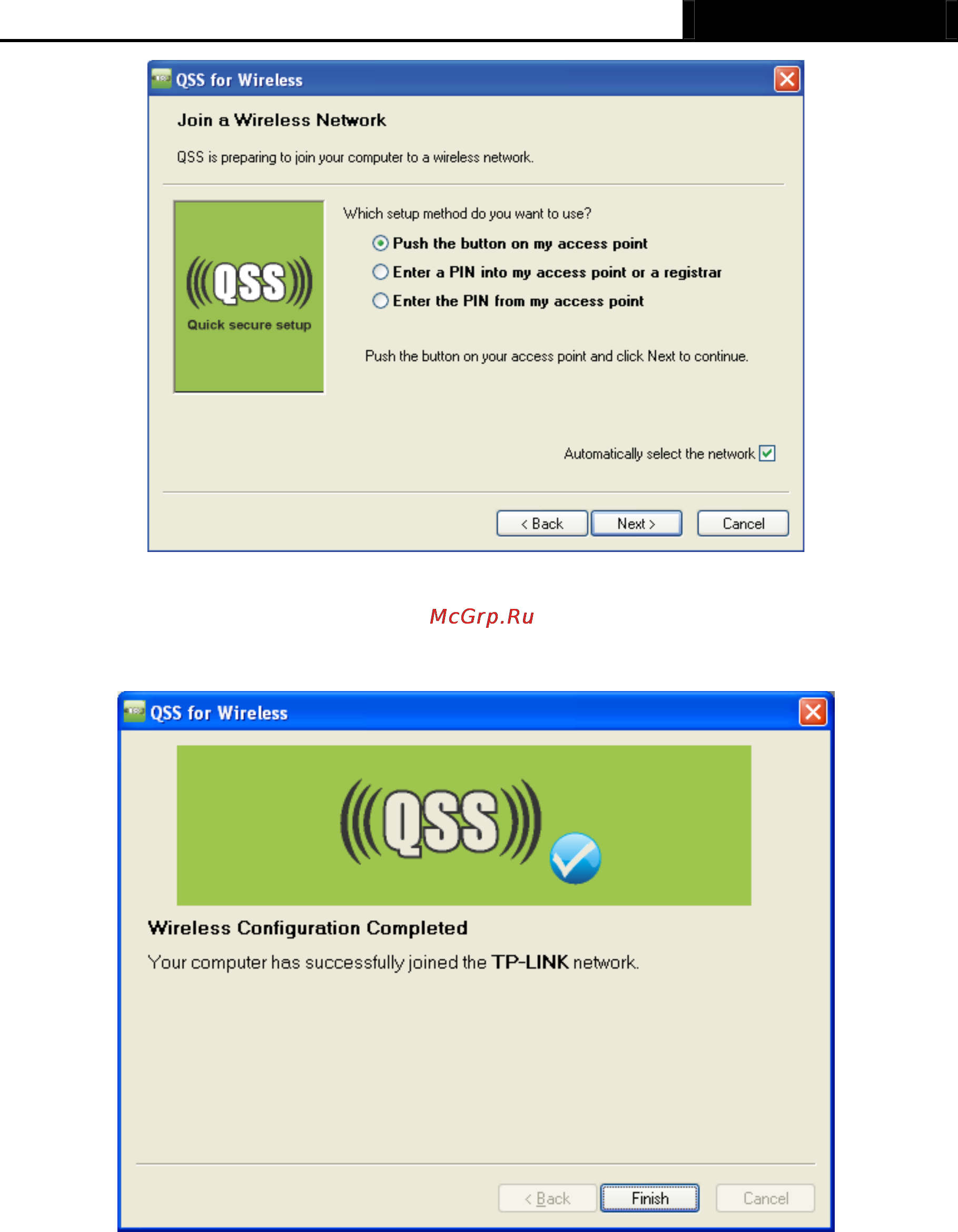

The QSS Configuration Screen of Wireless Adapter
Step 3: Wait for a while until the next screen appears. Click Finish to complete the QSS
configuration.
The QSS Configuration Screen of Wireless Adapter
Method Three:
Step 1: Keep the default QSS Status as Enabled and click the Add device button in
Figure 4-2,
then the following screen will appear.
-21-
