D-Link DES-1226G [16/28] Configure snmp trap

16

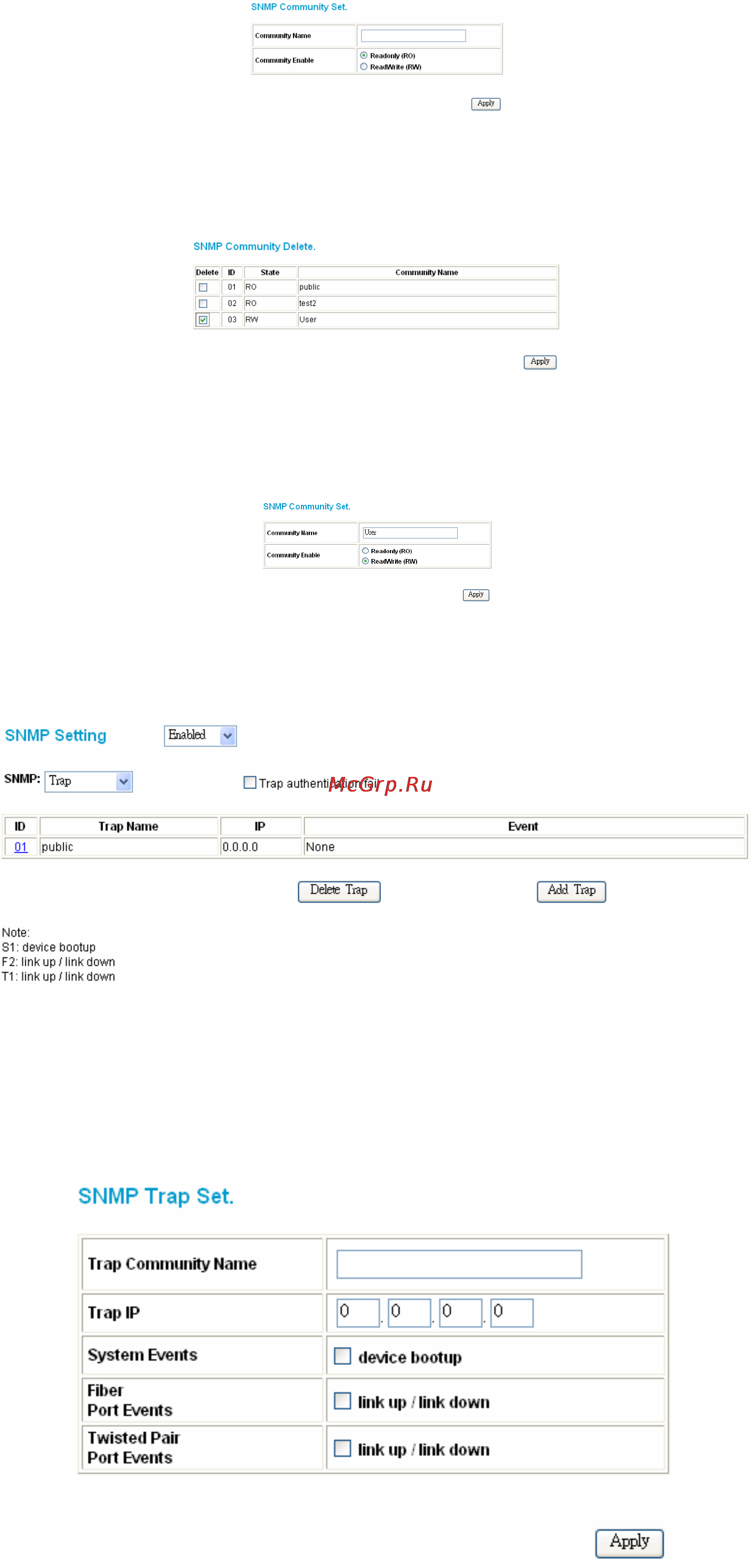

Figure 24. Add SNMP Community group

Delete Group: To delete previously defined SNMP Community group, press “Delete Group” button, the Delete SNMP Community configuration window

will pop out; checked the delete dialog box. Press “Apply” to delete the selected SNMP Community Group.

Figure 25. Delete SNMP Community group

Modify Group: To modify previously defined SNMP Community group, click on the ID parameter to enter to the selected SNMP Community Group to

fail even to the SNMP host.

Add Trap: To create a recipient of SNMP traps generated by the Switch’s SNMP agent, press “Add Trap” button, and the SNMP Trap Set window will pop

out; you can fill in the community name and trap IP address of the remote management station that will serve as the SNMP host for the Switch and checked

the events selection n to enabled selected event traps.
